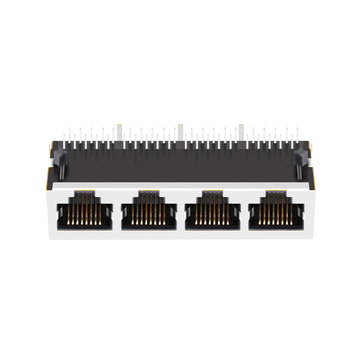

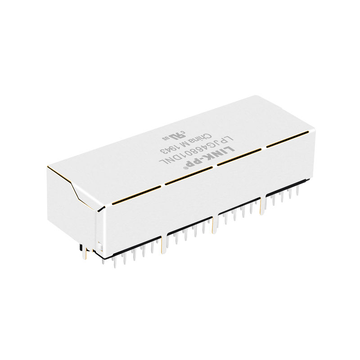

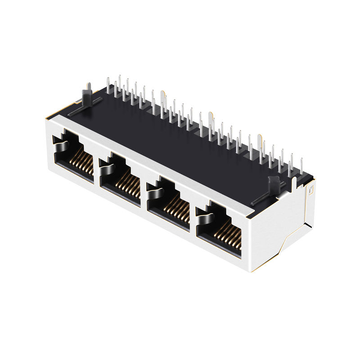

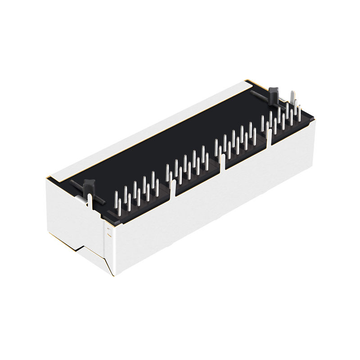

LPJG46801DNL 100/1000 Base-T Gigabit RJ45 1x4 shielded Magnetic jacks Without Led Tab Down

Name: LPJG46801DNL 100/1000 Base-T Gigabit RJ45 1x4 shielded Magnetic jacks Without Led Tab Down
Brand: LINK-PP
SKU: 177463
Price: 4.76 USD
Availability: InStock
Rating: 5 (34 reviews)

Product: LPJG46801DNL 100/1000 Base-T Gigabit RJ45 1x4 shielded Magnetic jacks Without Led Tab Down
SKU: 177463
P/N: LPJG46801DNL
Price: $ 9.524
Stock: 1288 in Stock
Sold: 675
Product URL: https://www.l-p.com/products/473365.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

34 Reviews

0 Questions

675 Sold

$ 9.524

Free shipping over $600. For wholesale pricing, please contact us directly.

Qty (pcs) :

Unit Price :

$ 9.524

100

$ 7.62

600

$ 6.382

1200

$ 5.429

6000

$ 4.762

Manufacture: LINK-PP P/N: LPJG46801DNL SKU: 177463

Compatible:: LINK-PP; Other

Compatible P/N:: LPJG46801DNL

Shipping:

To Be Negotiated

$ 29.47

Can't deliver

to United States via FedEx IP

Estimated delivery time : 3 - 6 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Stock:

1288 in Stock .

Quantity:

Total Price:

$ 9.524

Packaging Details:

N.W/pcs: 0.025kg
Package: Tray
SPQ: 20pcs
Qty/carton: 400pcs
Carton size: 37*30*30cm
G.W/carton: 10kg

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

LINK-PP LPJG46801DNL 100/1000 Base-T Gigabit RJ45 1x4 shielded Magnetic jacks for Industrial PC and Fieldbus System (Tab Down, Without Led)

The LPJG46801DNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.

LINK-PP Part Number:	LPJG46801DNL	Connector Type	Jack
Part Status	Active	Mounting Type	Through Hole
Number of Positions/Contacts	10p8c (RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x4 Port	Speed	10/100/1000 Base-T
Latch	Down	Cores per Port	8
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	Without	LED Option	Without Led
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.536/13.61	Package Length (Inches/mm)	0.839/21.30
Package Width (Inches/mm)	2.328/59.12	Temperature	0℃ TO 70℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

LPJG46801DNL Drawing LPJG46801DNL-Drawing.pdf Download
