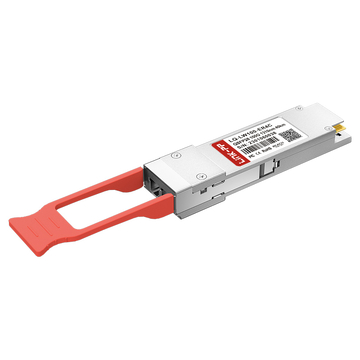

Brocade 100GBPS-ER4 Compatible LINK-PP 100G QSFP28 Specifications The Brocade 100GBPS-ER4 Compatible LINK-PP module is a high-performance 100G QSFP28 ER4 optical transceiver engineered for long-haul single-mode fiber communications. Operating over a LAN-WDM multiplexed grid across four channels, it strictly complies with QSFP28 MSA, IEEE 802.3ba 100GBASE-ER4, and OTN OTU4 standards to ensure robust 100Gbps transmission up to 40km with integrated DDM capabilities. Brocade Part Number100GBPS-ER4Vendor NameLINK-PP Form Factor QSFP28 Max Data Rate 111.81Gbps

Brocade 10G-SFPP-BXD-100K Compatible LINK-PP 10G SFP+ Specifications 10G-SFPP-BXD-100K redefines long-haul connectivity as a single-strand BiDi SFP+ optical transceiver, engineered to master a 100km reach over single-mode fiber by utilizing a sophisticated 1550nm-TX/1490nm-RX wavelength split through a simplex LC/UPC connector with integrated DOM capabilities. Brocade Part Number10G-SFPP-BXD-100KVendor NameLINK-PP Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength 1550nm-TX/1490nm-RX Max Cable Distance 100km Connector Simplex LC Media SMF

Brocade 10G-SFPP-BXD-40K Compatible LINK-PP 10G SFP+ Specifications The Brocade 10G-SFPP-BXD-40K Compatible LINK-PP module is a 10G BiDi SFP+ optical transceiver designed to double network capacity by utilizing a single strand of single-mode fiber, featuring a 1330nm-TX/1270nm-RX wavelength split and an LC simplex interface with DOM support to achieve a reliable 40km transmission reach. Brocade Part Number10G-SFPP-BXD-40KVendor NameLINK-PP Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength 1330nm-TX/1270nm-RX Max Cable Distance 40km Connector

Brocade 10G-SFPP-BXD-80K Compatible LINK-PP 10G SFP+ BiDi Transceiver Module (SMF, 1550nm-TX/1490nm-RX 80km, Simplex LC, DOM) The Brocade 10G-SFPP-BXD-80K Compatible LINK-PP SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 80km transmission distance with SMF.The transceiver consists of three sections: a Cooled EML laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source

Brocade 10G-SFPP-BXU Compatible LINK-PP 10G SFP+ Specifications The Brocade 10G-SFPP-BXU Compatible LINK-PP module is a high-performance 10G SFP+ BiDi transceiver engineered for single-mode fiber applications up to 10km. Featuring a 1270nm DFB laser transmitter and 1330nm PIN receiver, it delivers reliable, single-fiber bidirectional data transmission. Fully SFP MSA and SFF-8472 compliant, this hot-pluggable module integrates real-time digital diagnostic monitoring (DDM) for optimized network management. Brocade Part Number10G-SFPP-BXUVendor NameLINK-PP Form Factor

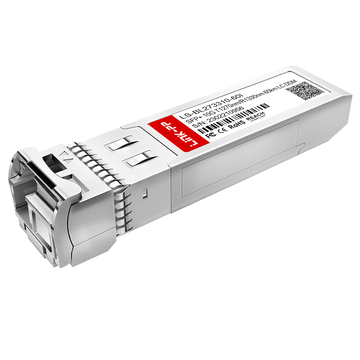

Brocade 10G-SFPP-BXU-60K-I Compatible LINK-PP 10G SFP+ Specifications The Brocade 10G-SFPP-BXU-60K-I Compatible LINK-PP module is a high-performance 10.3Gbps SFP+ BIDI optical transceiver designed for single-mode fiber applications. It supports a 60km transmission distance, utilizing 1270nm for transmitting and 1330nm for receiving, making it ideal for long-reach industrial networking solutions. This module ensures reliable and efficient data transfer in demanding environments. Brocade Part Number10G-SFPP-BXU-60K-IVendor NameLINK-PP Form Factor SFP+ Max Data Rate

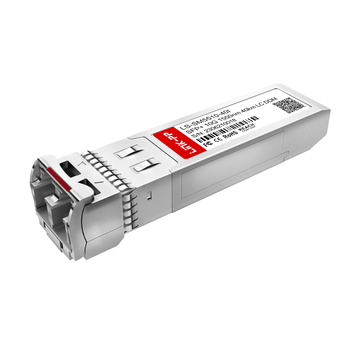

Brocade 10G-SFPP-ER-I Compatible LINK-PP 10G SFP+ Specifications The Brocade 10G-SFPP-ER-I Compatible LINK-PP module is an industrial-grade 10GBASE-ER SFP+ optical transceiver engineered to operate reliably in extreme environments from negative 40 to 85 degrees Celsius. Utilizing a 1550nm wavelength over single-mode fiber, it ensures stable 10 Gbps data transmission up to 40km, featuring a Duplex LC interface and integrated DDM for precise real-time network telemetry. Brocade Part Number10G-SFPP-ER-IVendor NameLINK-PP Part Status Active Form Factor SFP+ Max

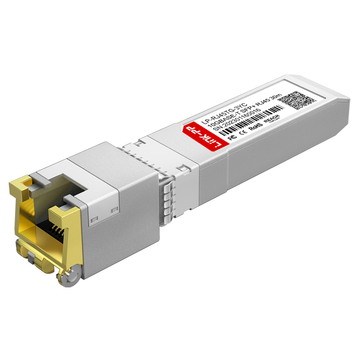

Brocade 10G-SFPP-T Compatible LINK-PP 10GBASE-T SFP+ Specifications The Brocade 10G-SFPP-T Compatible LINK-PP module is a high-performance, cost-effective 10GBASE-T SFP+ (Small Form Factor Pluggable Plus) copper transceiver module. Designed for high-speed communication links over Cat6a/Cat7 copper cabling, it enables OEMs and network operators to deploy 10 Gbps Ethernet connectivity into existing SFP+ ports, extending the life and flexibility of network infrastructure. Brocade Part Number10G-SFPP-TVendor NameLINK-PP Part Status Active Form Factor SFP+ Max

Brocade XBR-SFP10G1270-40-I Compatible LINK-PP 10G SFP+ Specifications The Brocade XBR-SFP10G1270-40-I Compatible LINK-PP 10G SFP+ optical transceiver module supports data rates of up to 10.7Gbps over single-mode fiber (SMF) and has a transmission range of up to 40km at a wavelength of 1270nm. Brocade Part NumberXBR-SFP10G1270-40-IVendor NameLINK-PP Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength 1270nm Max Cable Distance 40km Connector Duplex LC Media SMF Transmitter Type EML Receiver Type PIN TX Power -1 to +5dBm RX Power -23

Brocade XBR-SFP10G1290-40 Compatible LINK-PP 10G SFP+ CWDM Optical Transceiver Module (SMF, 1290nm, 40km, LC, DOM) The Brocade XBR-SFP10G1290-40 Compatible LINK-PP SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 40km transmission distance with SMF.The transceiver consists of three sections: a Cooled EML laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement and SFF-8

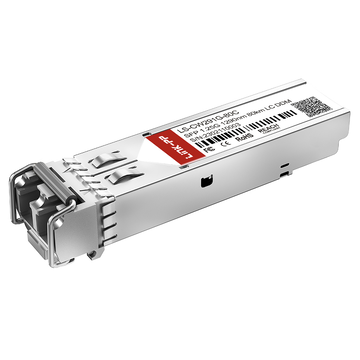

Brocade E1MG-CWDM80-1290 Compatible LINK-PP 1.25G SFP CWDM Optical Transceiver Module(1290nm,80km,SMF,Duplex LC,DDM) The Brocade E1MG-CWDM80-1290 Compatible LINK-PP SFP transceiver is high performance, cost effective modules supporting data rate of 1.25Gbps and 80km transmission distance with SMF. The transceiver consists of three sections: a CWDM DFB laser transmitter, a PIN photodiode integrated with atrans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8

Brocade XBR-SFP10G1350-40 Compatible LINK-PP 10G SFP+ CWDM Optical Transceiver Module (SMF, 1350nm, 40km, LC, DOM) The Brocade XBR-SFP10G1350-40 Compatible LINK-PP SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 40km transmission distance with SMF.The transceiver consists of three sections: a Cooled EML laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement and SFF-8

Brocade XBR-SFP10G1370-20 Compatible LINK-PP 10G SFP+ Specifications The XBR-SFP10G1370-20 anchors high-speed 10G optical networks as a hot-pluggable CWDM SFP+ transceiver, transmitting up to 20km over single-mode fiber (SMF) via LC duplex connectors at a 1370nm wavelength. Operating on a single +3.3V power supply, this module integrates digital diagnostic monitoring (DDM) to deliver continuous real-time system performance insights. Brocade Part NumberXBR-SFP10G1370-20Vendor NameLINK-PP Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength 1370nm Max Cable

Brocade E1MG-CWDM80-1390 Compatible LINK-PP 1.25G SFP CWDM Optical Transceiver Module(1390nm,80km,SMF,Duplex LC,DDM) The Brocade E1MG-CWDM80-1390 Compatible LINK-PP SFP transceiver is high performance, cost effective modules supporting data rate of 1.25Gbps and 80km transmission distance with SMF. The transceiver consists of three sections: a CWDM DFB laser transmitter, a PIN photodiode integrated with atrans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8

Brocade XBR-SFP10G1390-20 Compatible LINK-PP 10G SFP+ Specifications XBR-SFP10G1390-20 is a specialized 10G SFP+ CWDM optical transceiver module engineered for 20km duplex LC single-mode fiber links, leveraging a precise 1390nm DFB laser and highly sensitive PIN photodiode coupled with integrated digital diagnostic monitoring (DDM) to ensure deterministic signal integrity. Brocade Part NumberXBR-SFP10G1390-20Vendor NameLINK-PP Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength 1390nm Max Cable Distance 20km Connector Duplex LC Media SMF

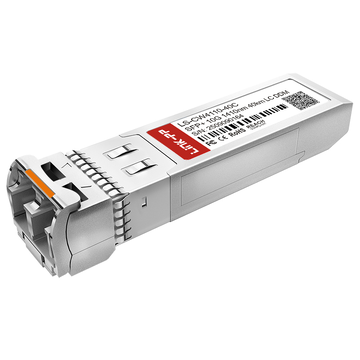

Brocade XBR-SFP10G1410-40 Compatible LINK-PP 10G SFP+ CWDM Optical Transceiver Module (SMF, 1410nm, 40km, LC, DOM) The Brocade XBR-SFP10G1410-40 Compatible LINK-PP SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 40km transmission distance with SMF.The transceiver consists of three sections: a Cooled EML laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement and SFF-8
