IBM BN-CKM-S-LX Compatible LINK-PP 1G SFP Specifications The IBM BN-CKM-S-LX Compatible LINK-PP module is a 1G SFP optical transceiver designed for stable gigabit transmission over single-mode fiber. It delivers dependable performance at a 1310nm operating wavelength with a reach of up to 10km. IBM Part NumberBN-CKM-S-LXVendor NameLINK-PP Form Factor SFP Max Data Rate 1.25Gbps Wavelength 1310nm Max Cable Distance 10km Connector Duplex LC Transmitter Type FP 1310nm Media SMF Receiver Type PIN TX Power -9 to 0dBm RX Power -23 to -

IBM SFP-GEB-T-IL Compatible LINK-PP 10/100/1000BASE-T SFP Specifications The IBM SFP-GEB-T-IL Compatible LINK-PP module is a high-performance, industrial-grade copper SFP transceiver operating over an SGMII interface. Powered by the Realtek RTL8213B chip, it supports 10/100/1000Mbps auto-negotiation and delivers reliable full-duplex links up to 100 meters over Category 5 UTP cabling. It features integrated Tx-disable and Rx_los functions as standard. IBM Part NumberSFP-GEB-T-ILVendor NameLINK-PP Part Status Active Form Factor SFP SGMII Max. Data Rate

IBM SFP-GEB-T-IL Compatible LINK-PP 10/100/1000BASE-T SFP Specifications SFP-GEB-T-IL is an industrial-grade 10/100/1000BASE-T SFP copper transceiver module that features low power consumption, a fully metallic enclosure to reduce EMI, and a 100-meter transmission range over Cat 5 cable in extreme temperatures from -40°C to +85°C. IBM Part NumberSFP-GEB-T-ILVendor NameLINK-PP Part Status Active Form Factor SFP SGMII Max. Data Rate 1.25G Max. Cable Distance 100m Media Cat 5 Connector RJ-45 RX_LOS Yes DOM Support No

IBM SFP-GEB-T-IL Compatible LINK-PP 10/100/1000BASE-T SFP Specifications SFP-GEB-T-IL acts as an industrial-grade 10/100/1000BASE-T SFP copper module engineered for extreme environments, sustaining deterministic network links up to 100m over Category 5 twisted-pair cabling while effortlessly adapting to diverse host systems via its dual-architecture support for SERDES (at native 1000BASE-T) and SGMII (at 10/100/1000Mbps multi-rate compliance) across an operating temperature spectrum of -40°C to +85°C. IBM Part NumberSFP-GEB-T-ILVendor NameLINK-PP Part Status

IBM BNT Compatible LINK-PP 1000BASE-T SFP Specifications BNT is a commercial-grade 1000BASE-T copper SFP transceiver module engineered for efficient gigabit connectivity up to 100m over Cat 5 cabling, featuring a compact RJ-45 connector and an eco-conscious design that draws a typical low power dissipation of just 1.05W while housing its circuitry in a fully metallic enclosure to guarantee low electromagnetic interference across its 0°C to 70°C operating temperature range. IBM Part NumberBNTVendor NameLINK-PP Part Status Active Form Factor SFP Max.

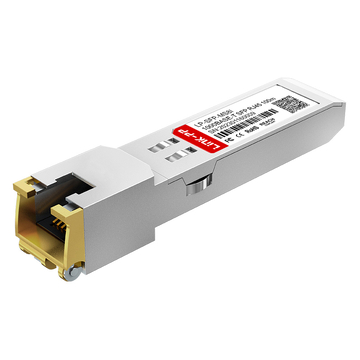

IBM SFP-GE-T-I Compatible LINK-PP 1000BASE-T SFP Specifications SFP-GE-T-I is an industrial-grade 1000BASE-T SFP copper transceiver module engineered for host systems with a SERDES interface, driving data reliably across 100m of Category 5 twisted-pair cabling with a typical power dissipation of just 1.05W while enduring extreme thermal envelopes from -40°C to +85°C. IBM Part NumberSFP-GE-T-IVendor NameLINK-PP Part Status Active Form Factor SFP Max. Data Rate 1.25G Max. Cable Distance 100m Media Cat 5 Connector RJ-45 Rx LOS NO

IBM SFP1G-SX-31-I Compatible LINK-PP 1.25G SFP Specifications The IBM SFP1G-SX-31-I Compatible LINK-PP module is a high-performance 1.25Gbps SFP transceiver engineered for single-mode fiber infrastructure. It features a 1310nm FP laser transmitter paired with a highly sensitive PIN photodiode receiver. Operating on a stable +3.3V power supply, this hot-pluggable module fully complies with standard SFP MSA and SFF-8472 specifications. It delivers efficient gigabit data transmission. IBM Part NumberSFP1G-SX-31-IVendor NameLINK-PP Form Factor SFP Max Data Rate

IBM SFP1G-SX-31 Compatible LINK-PP 1.25G SFP Specifications The IBM SFP1G-SX-31 Compatible LINK-PP module is a high-performance Small Form-factor Pluggable (SFP) transceiver module engineered for reliable 1.25Gbps data communications over single-mode fiber. This hot-pluggable module fully complies with SFP MSA and SFF-8472 industry specifications. Operating under a single +3.3V power supply, it features a stable 1310nm FP laser transmitter and integrated digital diagnostic monitoring functions. IBM Part NumberSFP1G-SX-31Vendor NameLINK-PP Form Factor SFP Max Data

IBM 45W2411 Compatible LINK-PP 10G SFP+ Specifications 45W2411 is a 10GBASE-SR SFP+ optical transceiver module designed for 850nm operation, delivering up to 300m transmission over multi-mode fiber (MMF), featuring a duplex LC/UPC interface, compliant with SFP+ MSA standards, and equipped with digital optical monitoring (DOM) for real-time parameter visibility. IBM Part Number45W2411Vendor NameLINK-PP Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength 850nm Max Cable Distance 300m Connector Duplex LC Media MMF Transmitter Type VCSEL

IBM SFP-10GER-31 Compatible LINK-PP 10G SFP+ Specifications The IBM SFP-10GER-31 Compatible LINK-PP module is a 10G SFP+ optical transceiver designed for single-mode fiber links at 1310nm with a transmission distance of up to 40km. It uses a Duplex LC interface and supports DOM/SFF-8472 digital diagnostics, making it suitable for long-reach enterprise and telecom deployments.  IBM Part NumberSFP-10GER-31Vendor NameLINK-PP Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength 1310nm Max Cable Distance 40km Connector Duplex LC Media SMF

IBM SFP-10GER-31-I Compatible LINK-PP 10G SFP+ Specifications The IBM SFP-10GER-31-I Compatible LINK-PP module is an industrial-grade 10G SFP+ optical transceiver engineered for long-haul single-mode fiber connections. Operating at a 1310nm wavelength with a Duplex LC interface, it delivers reliable 10 Gbps data transmission over distances up to 40km while featuring built-in Digital Diagnostic Monitoring to ensure real-time network management.  IBM Part NumberSFP-10GER-31-IVendor NameLINK-PP Part Status Active Form Factor SFP+ Max Data Rate 10.7Gbps

IBM SFP1G-SX-85-I Compatible LINK-PP 1G SFP Specifications The IBM SFP1G-SX-85-I Compatible LINK-PP module is an industrial-grade 1G SFP transceiver engineered for reliable Gigabit Ethernet over multi-mode fiber. Operating at an 850nm wavelength, it supports transmission distances up to 550 meters via duplex LC interfaces. This hot-pluggable module features digital optical monitoring (DOM) and thrives in harsh environments from -40°C to +85°C. IBM Part NumberSFP1G-SX-85-IVendor NameLINK-PP Form Factor SFP Max Data Rate 1.25Gbps Wavelength 850nm Max

IBM SFP-10GLRM-31 Compatible LINK-PP 10G SFP+ Specifications SFP-10GLRM-31 is a 10GBASE-LRM SFP+ optical transceiver module featuring a Duplex LC/UPC interface, integrated digital optical monitoring (DOM), compliance with SFP+ MSA standards, and transmission distances of up to 220m over multi-mode fiber with stable optical output characteristics. IBM Part NumberSFP-10GLRM-31Vendor NameLINK-PP Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength 1310nm Max Cable Distance 220m Connector Duplex LC Media MMF Transmitter Type FP Receiver Type PIN

IBM SFP28-25G-SR Compatible LINK-PP 25G SFP28 Specifications SFP28-25G-SR is a hot-pluggable 25GBASE-SR SFP28 optical transceiver utilizing an 850nm VCSEL transmitter and PIN receiver to deliver a deterministic 25Gbps line rate across optical transport distances of up to 70m over OM3 or 100m over OM4 multi-mode fiber. IBM Part NumberSFP28-25G-SRVendor NameLINK-PP Form Factor SFP28 Max Data Rate 25.7813Gbps Wavelength 850nm Max Cable Distance 100m@OM4/70m@OM3 Connector Duplex LC Media MMF Transmitter Type VCSEL Receiver Type PIN

IBM SFP1G-ZX160-55 Compatible LINK-PP 1.25G SFP Specifications The IBM SFP1G-ZX160-55 Compatible LINK-PP module is a high-performance Small Form-factor Pluggable transceiver specifically designed for Gigabit Ethernet applications. Operating at a data rate of 1.25Gbps, this commercial-grade module features a 1550nm DFB transmitter paired with a highly sensitive APD receiver, enabling reliable ultra-long-haul optical data transmission up to 160km over single-mode fiber infrastructure. IBM Part NumberSFP1G-ZX160-55Vendor NameLINK-PP Form Factor SFP Max Data Rate 1.25

IBM SFP1G-ZX120-55 Compatible LINK-PP 1.25G SFP Specifications The IBM SFP1G-ZX120-55 Compatible LINK-PP module is a high-performance Small Form-factor Pluggable transceiver designed for long-reach Gigabit Ethernet and Fibre Channel applications. Operating at a 1.25Gbps signaling rate, this single-mode module delivers optimal performance over extended optical links. It features a reliable 1550nm DFB transmitter and a highly sensitive PIN receiver, ensuring exceptional signal integrity and low power consumption across commercial operating environments. IBM Part
