What type of fiber cable is required for the SFP-10GLRL-31, and what is its maximum reach?

This module is designed to be used with Single-Mode Fiber (SMF) using a Duplex LC connector, and it supports stable data transmission up to a maximum distance of 2 kilometers.

Is the SFP-10GLRL-31 compatible with my existing network switches?

Yes, the transceiver is fully compliant with Multi-Source Agreement (MSA) standards, ensuring reliable, plug-and-play compatibility with major network equipment brands such as Cisco, Juniper, Arista, and others.

Does this SFP+ module support diagnostic monitoring?

Yes, it features Digital Optical Monitoring (DOM) capability, allowing network administrators to track critical real-time metrics like temperature, voltage, laser bias current, and optical power.

What is the operating wavelength, and what are its typical applications?

The module operates at a 1310nm wavelength and is highly suitable for short to medium-haul 10 Gigabit Ethernet links, including data center interconnects, enterprise campus networks, and service provider applications.

Home

Optics Transceivers | SFP Modules

10/25/40G/100G Transceiver Modules

10G SFP+

204254

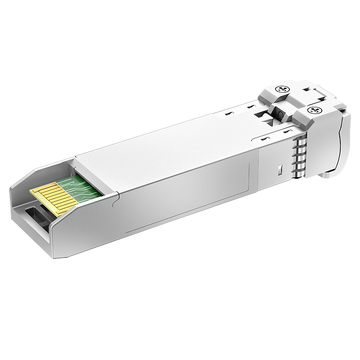

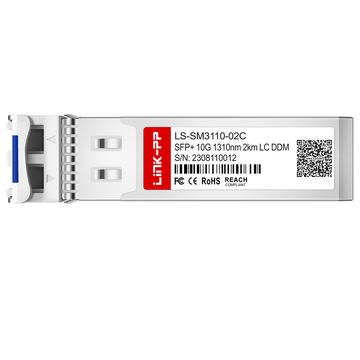

IBM SFP-10GLRL-31 Compatible LINK-PP 10G SFP+ 1310nm 2km DOM Duplex LC/UPC SMF Optical Transceiver Module

Name: SFP-10GLRL-31
Brand: LINK-PP
SKU: 204254
Price: 12.6 USD
Availability: InStock
Rating: 5 (26 reviews)

# 204254

For Order Over $1000 Get $15.00 Off , Code:

Linkpp15

For Order Over $3000 Get $50.00 Off , Code:

Linkpp50

For Order Over $5000 Get $100.00 Off , Code:

Linkpp100

: IBM SFP-10GLRL-31 Compatible LINK-PP 10G SFP+ 1310nm 2km DOM Duplex LC/UPC SMF Optical Transceiver Module

26 Reviews Need Help?

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

26 Reviews

0 Questions

Request Stock

3.1K Sold

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF )

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 12.6

100

$ 11.97

1000

$ 11.592

3000

$ 11.214

6000

$ 10.836

Manufacture: LINK-PP

P/N: LS-SM3110-02C

Compatible:: Cisco; FiberMall; Alcatel-Lucent; Arista; Broadcom; Brocade; DELL; Extreme; FS; Fortinet; Generic; H3C; HW; IBM; Intel; Juniper; LINK-PP; Mellanox; Netgear; Ubiquiti

Compatible P/N:: SFP-10GLRL-31 | 2km; 45W2421-I | 10km; 90Y9412 | 10km; SFP+ 10GBASE-ZR | 100km

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

Specifications

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

IBM SFP-10GLRL-31 Compatible LINK-PP 10G SFP+ Specifications

The IBM SFP-10GLRL-31 Compatible LINK-PP module is a high-performance 10Gbps SFP+ optical transceiver designed to transmit data up to 2 kilometers over Single-Mode Fiber (SMF) using a 1310nm wavelength and a Duplex LC connector. Additionally, it features Digital Optical Monitoring (DOM), allowing network administrators to monitor real-time operational parameters like temperature, voltage, and optical power for enhanced reliability.

IBM Part Number	SFP-10GLRL-31	Vendor Name	LINK-PP
Form Factor	SFP+	Max Data Rate	10.3Gbps
Wavelength	1310nm	Max Cable Distance	2km
Connector	Duplex LC	Optical Components	FP 1310nm
Media	SMF	DOM Support	Yes
TX Power	-6.5 to -0.5dBm	RX Power	-20 to -1dBm
Receiver Sensitivity	-14.4dBm	Receiver Overload	0.5dBm
Operating case temperature	0 to 70°C	Protocols	SFP+ MSA Compliant, CPRI, eCPRI
