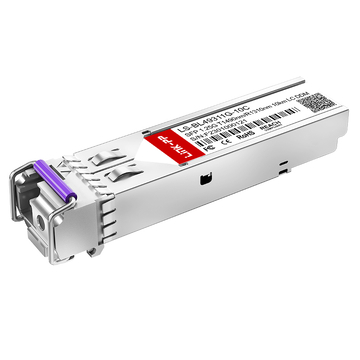

Extreme 10056 Compatible LINK-PP 1G BiDi SFP Specifications The Extreme 10056 Compatible LINK-PP module is a high-performance 1G BiDi SFP transceiver engineered for exceptional data communication. This single-mode optical module operates over a standard 10km distance with 1490nm-TX and 1310nm-RX wavelengths. It features a reliable simplex LC interface, comprehensive DDM support, and low power consumption, making it ideal for Gigabit Ethernet networks. Extreme Part Number10056Vendor NameLINK-PP Form Factor SFP Max Data Rate 1.25Gbps Wavelength

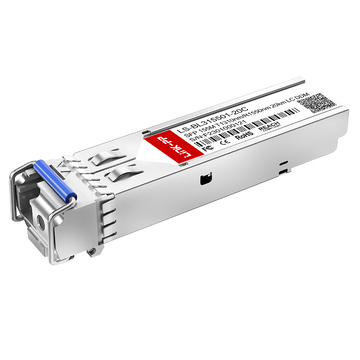

Extreme 10059-20 Compatible LINK-PP 155M SFP Specifications 10059-20 operates as a commercial-grade 155M SFP BiDi single-mode optical transceiver module, pairing a 1310nm FP laser with a 1550nm PIN photo detector across a hot-pluggable architecture to sustain seamless single-strand bidirectional spans up to 20km. Extreme Part Number10059-20Vendor NameLINK-PP Form Factor SFP Max Data Rate 155Mbps Wavelength 1310nm-TX/1550nm-RX Max Cable Distance 20km Connector Simplex LC Media SMF Transmitter Type FP Receiver Type PIN TX Power -14

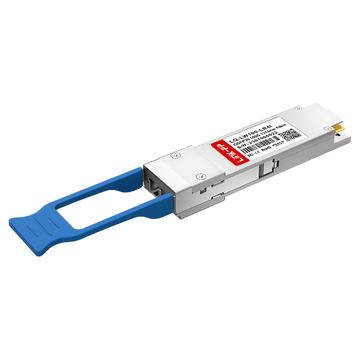

Extreme 100G-QSFP28-LR4-I Compatible LINK-PP 100G QSFP28 Specifications The Extreme 100G-QSFP28-LR4-I Compatible LINK-PP module is an industrial-grade QSFP28 LR4 100G optical transceiver designed for robust high-speed data transmission over single-mode fiber. Utilizing LAN-WDM technology operating within the 1310nm band, this module supports a 10km reach and features a duplex LC interface with built-in Digital Diagnostics Monitoring for real-time network optimization in harsh environments. Extreme Part Number100G-QSFP28-LR4-IVendor NameLINK-PP Form Factor QSFP28

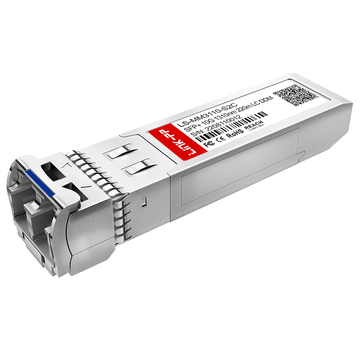

Extreme 10303 Compatible LINK-PP 10G SFP+ Specifications 10303 is a 10GBASE-LRM SFP+ optical transceiver module featuring a Duplex LC/UPC interface, integrated digital optical monitoring (DOM), compliance with SFP+ MSA standards, and transmission distances of up to 220m over multi-mode fiber with stable optical output characteristics. Extreme Part Number10303Vendor NameLINK-PP Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength 1310nm Max Cable Distance 220m Connector Duplex LC Media MMF Transmitter Type FP Receiver Type PIN TX Power -

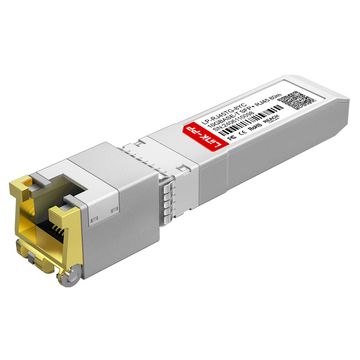

Extreme 10339 Compatible LINK-PP 10GBASE-T SFP+ Specifications The Extreme 10339 Compatible LINK-PP module is a high-performance 10GBASE-T SFP+ copper transceiver engineered for demanding network links. It delivers data transfer rates up to 10Gbps over standard Cat6a/Cat7 twisted-pair cabling, extending transmission distances up to 80 meters. This hot-pluggable module ensures energy-efficient, low-latency connectivity, providing an ideal, cost-effective solution for enterprise data centers and high-speed enterprise networks. Extreme Part Number10339Vendor NameLINK-PP

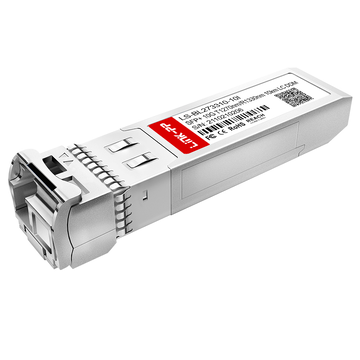

Extreme 10GB-BX10-U-I Compatible LINK-PP 10G SFP+ Specifications Extreme 10GB-BX10-U-I Compatible LINK-PP module is an industrial-grade 10G SFP+ BiDi transceiver delivering high-performance 10.3Gbps data rates over a single-mode fiber up to 10km. Operating at 1270nm-TX / 1330nm-RX with an LC receptacle, this hot-pluggable module features built-in Digital Diagnostic Monitoring (DDM) and exceptional stability in harsh environments from -40°C to +85°C. Extreme Part Number10GB-BX10-U-IVendor NameLINK-PP Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength

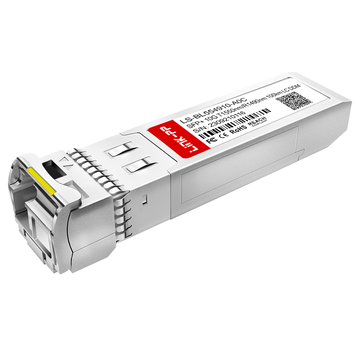

Extreme 10GB-BX100-D Compatible LINK-PP 10G SFP+ Specifications 10GB-BX100-D redefines long-haul connectivity as a single-strand BiDi SFP+ optical transceiver, engineered to master a 100km reach over single-mode fiber by utilizing a sophisticated 1550nm-TX/1490nm-RX wavelength split through a simplex LC/UPC connector with integrated DOM capabilities. Extreme Part Number10GB-BX100-DVendor NameLINK-PP Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength 1550nm-TX/1490nm-RX Max Cable Distance 100km Connector Simplex LC Media SMF Transmitter Type

Extreme 10GB-BX100-U Compatible LINK-PP 10G SFP+ Specifications Extreme 10GB-BX100-U Compatible LINK-PP module is a 10G SFP+ BiDi optical transceiver module that utilizes single-strand single-mode fiber via a simplex LC/UPC connector to deliver long-range 100km connectivity, leveraging integrated DOM capabilities and an asymmetric 1490nm-TX/1550nm-RX wavelength split to maximize spectral efficiency by transmitting and receiving data simultaneously over a single optical path. Extreme Part Number10GB-BX100-UVendor NameLINK-PP Form Factor SFP+ Max Data Rate 10.7Gbps

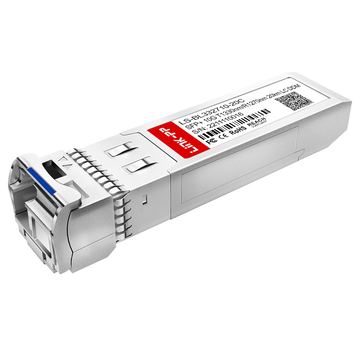

Extreme 10GB-BX20-D Compatible LINK-PP 10G SFP+ Specifications The Extreme 10GB-BX20-D Compatible LINK-PP module is a 10G SFP+ BiDi optical transceiver module that enables bidirectional communication over a single fiber strand by utilizing a 1330nm-TX/1270nm-RX wavelength combination to support data links up to 20km. Extreme Part Number10GB-BX20-DVendor NameLINK-PP Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength 1330nm-TX/1270nm-RX Max Cable Distance 20km Connector Simplex LC Media SMF Transmitter Type DFB Receiver Type PIN TX

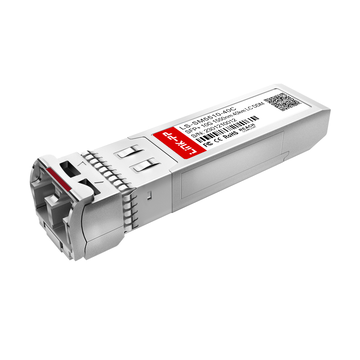

Extreme 10GB-ER-SFPP Compatible LINK-PP 10G SFP+ Specifications The Extreme 10GB-ER-SFPP Compatible LINK-PP module is a commercial-grade 10G SFP+ optical transceiver engineered for extended-reach single-mode fiber networks. Operating at a 1550nm wavelength with a Duplex LC interface, this SFP+ 40km module delivers robust 10 Gbps data transmission while utilizing integrated Digital Diagnostic Monitoring to ensure continuous network visibility and reliability. Extreme Part Number10GB-ER-SFPPVendor NameLINK-PP Part Status Active Form Factor SFP+ Max Data Rate 1

Extreme 10GB-LRLX-SFPP Compatible LINK-PP 10G SFP+ Specifications The Extreme 10GB-LRLX-SFPP Compatible LINK-PP module is a high-performance 10Gbps SFP+ optical transceiver engineered for long-reach data transmission up to 10 kilometers over Single-Mode Fiber (SMF). It operates at a 1310nm wavelength using a Duplex LC connector and features Digital Optical Monitoring (DOM) to provide real-time diagnostic data for optimal network management. Extreme Part Number10GB-LRLX-SFPPVendor NameLINK-PP Part Status Active Form Factor SFP+ Max Data Rate 10.7Gbps

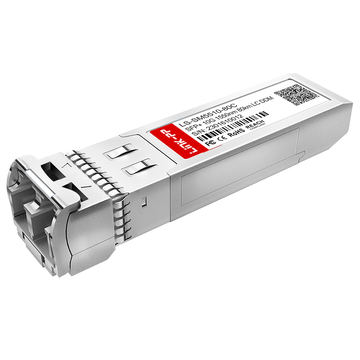

Extreme 10GB-ZR-SFPP Compatible LINK-PP 10G SFP+ Specifications The Extreme 10GB-ZR-SFPP Compatible LINK-PP module is a high-performance 10GBASE-ZR SFP+ optical transceiver designed for long-haul optical communication. Operating at a wavelength of 1550nm over single-mode fiber, this module supports a stable data rate of 1.25Gbps to 10Gbps and transmission distances up to 80km, making it an optimal solution for extended enterprise networks and metropolitan area networks. Extreme Part Number10GB-ZR-SFPPVendor NameLINK-PP Part Status Active Form Factor SFP+ Max

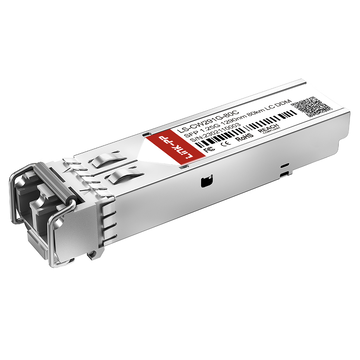

Extreme CWDM-SFP-1290 Compatible LINK-PP 1.25G SFP CWDM Optical Transceiver Module(1290nm,80km,SMF,Duplex LC,DDM) The Extreme CWDM-SFP-1290 Compatible LINK-PP SFP transceiver is high performance, cost effective modules supporting data rate of 1.25Gbps and 80km transmission distance with SMF. The transceiver consists of three sections: a CWDM DFB laser transmitter, a PIN photodiode integrated with atrans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472

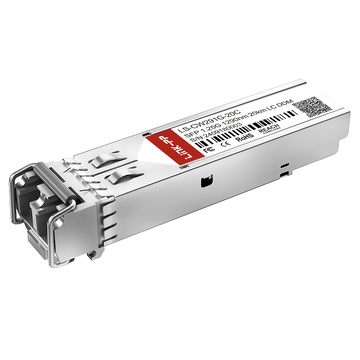

Extreme CWDM-SFP-1290-20 Compatible LINK-PP 1.25G SFP CWDM Duplex LC/UPC SMF Optical Transceiver Module for Transmission (SMF, 1290nm, 20km,DOM) Extreme CWDM-SFP-1290-20 Compatible LINK-PP Product Features: Supports up to 1.25Gbps bit rates Hot-pluggable SFP footprint CWDM DFB laser and PIN photo detector, Up to 20km for SMF transmission Compliant with SFP MSA and SFF-8472 with duplex LC receptacle Compatible with RoHS Single +3.3V power supply Real Time Digital Diagnostic Monitoring Extreme Part NumberCWDM-SFP-1290-20Vendor NameLINK-PP Form Factor SFP Max Data Rate 1.25Gbps

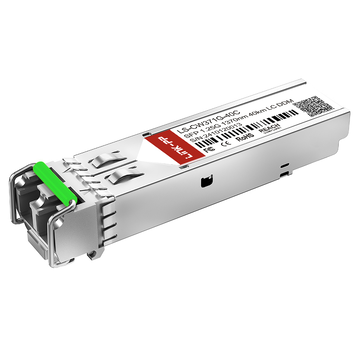

Extreme CWDM-SFP-1370 Compatible LINK-PP 1.25G SFP CWDM Single Mode Optical Transceiver Module(1370nm,40km,DOM,Duplex LC) The Extreme CWDM-SFP-1370 Compatible LINK-PP is a high-performance, cost-efficient SFP transceiver designed for single-mode fiber networks. It delivers a data rate of 1.25Gbps with a transmission distance of up to 40km. Built with a CWDM DFB laser transmitter, a PIN photodiode with integrated TIA, and an MCU control module, this unit complies with Class 1 laser safety standards and supports SFP MSA and SFF-8472 digital diagnostic monitoring.   Extreme Part

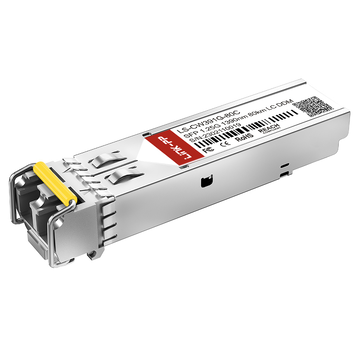

Extreme CWDM-SFP-1390 Compatible LINK-PP 1.25G SFP CWDM Optical Transceiver Module(1390nm,80km,SMF,Duplex LC,DDM) The Extreme CWDM-SFP-1390 Compatible LINK-PP SFP transceiver is high performance, cost effective modules supporting data rate of 1.25Gbps and 80km transmission distance with SMF. The transceiver consists of three sections: a CWDM DFB laser transmitter, a PIN photodiode integrated with atrans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472
