LPJG48831A4NL 1000 base-t rj45 1x4 port module connectors tab up green&yellow green&yellow led

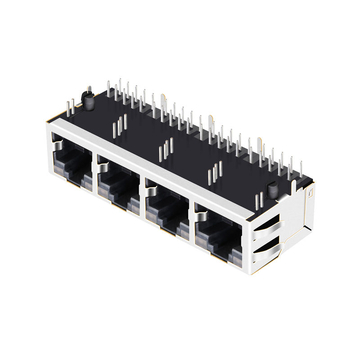

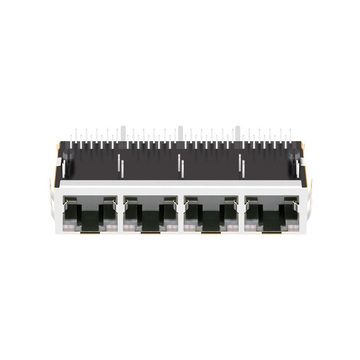

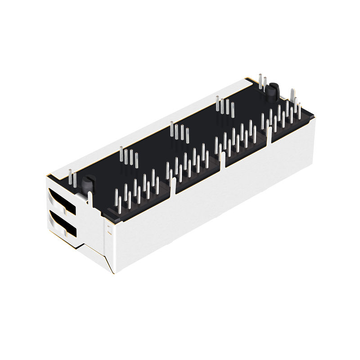

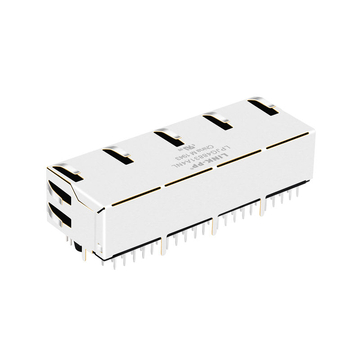

LPJG48831A4NL 1000 Base-T RJ45 1x4 Port Module Connectors Tab Up Green&Yellow/Green&Yellow Led

Product summary

Product
LPJG48831A4NL 1000 Base-T RJ45 1x4 Port Module Connectors Tab Up Green&Yellow/Green&Yellow Led
SKU
173092
P/N
LPJG48831A4NL
Price
$ 10.60
Stock
1200 in Stock
Sold
29.9K
Unit price $ 10.60
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJG48831A4NLSKU: 173092

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
Tyco
LINK-PP
Compatible P/N:
LPJG48831A4NL
Volume pricing Online tiers · larger qty or custom price on request
$ 10.600
1–99 pcs
$ 8.795
100–599 pcs
$ 7.523
600–1,199 pcs
$ 6.675
1,200–5,999 pcs
$ 5.934
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1200 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 20
Total Price:
$ 10.60
Packaging Details
20 pcs
400 pcs
Tray
37×30×30 cm
0.026 kg
10.7 kg

LINK-PP LPJG48831A4NL 10/100/1000 Base-T RJ45 Module Connectors for Hard Disk Players and Internet Of things Gateways (1x4 Port,Tab Up,Green&Yellow/Green&Yellow LED)


The LPJG48831A4NL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as VoIP Gateways, PoE Repeater,DVD and Webcams.


LINK-PP Part Number:
LPJG48831A4NL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
10p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x4 PortSpeed
10/100/1000 Base-T
Latch
UpCores per Port
12
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green&Yellow/Green&Yellow Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1.00/25.40

Package Width (Inches/mm)
2.331/59.20
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJG48831A4NL Drawing LPJG48831A4NL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    It did, at 59.20 mm along the panel edge. The depth behind the face is modest for a ganged part. We moved two mounting holes to clear the lamp legs. Routing the four pairs took the most room. by LINK-PP Technical Support
  • A:
    The idle port keeps its own magnetics terminated, so the pair does not float. We left port three open for a week and watched the other three. Their error counters stayed flat. Crosstalk from the open port was below our floor. by LINK-PP Technical Support
  • A:
    It runs along the top and the two ends of the shell. The centre dividers carry no fingers of their own. We checked contact with a thin feeler at each mouth. All four read the same. by LINK-PP Technical Support
  • A:
    Yes, each port brings out its own yellow and green legs. We tied them to four separate PHY channels. The back of the body carries sixteen lamp legs in two rows. Nothing is shared across the block. by LINK-PP Technical Support
  • A:
    One opening 59.20 mm across covers the row. The height is 13.50 mm, so the panel work stays shallow. We punched it once and filed the long edges. Every mouth ended up flush with the plate. by LINK-PP Technical Support
  • A:
    A gigabit link per port, on ten position contacts. All four share one metal shell and one row of fingers. We ran four separate links through it at once. None of them slowed the others down. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    54 Reviews

  • 5 Stars
    94%
    4 Stars
    6%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (54)
No data
Y***e
Verified Purchase
5.0
2026-11-14
Posts lined up with our holes, no rework. It dropped in with the same pin out.
S***r
Canada
Verified Purchase
5.0
2026-06-22
Our bracket sits 26 mm behind the bezel and the body is 25.40 mm long. It clears by half a millimetre, tight but fine. Cables turn down clear of the board.
N***l
Verified Purchase
5.0
2026-01-07
The lens pairs read green and yellow on both sides. It has been in service with both lamps working.
O***n
Verified Purchase
5.0
2025-09-29
59.20 mm wide, and it dropped straight into our opening. The length matched the sheet.
U***d
Verified Purchase
5.0
2025-03-08
Four mouths, one frame. Every contact read through first try.
