LPJG46945AENL 10 100 1000 base-t magnetics rj45 1x4 port connectors with transformer tab down green yellow led

LPJG46945AENL 10/100/1000 Base-T Magnetics RJ45 1x4 Port Connectors with transformer Tab Down Green/Yellow Led

Product summary

Product
LPJG46945AENL 10/100/1000 Base-T Magnetics RJ45 1x4 Port Connectors with transformer Tab Down Green/Yellow Led
SKU
155144
P/N
LPJG46945AENL
Price
$ 12.60
Stock
387 in Stock
Sold
9.8K
Unit price $ 12.60
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJG46945AENLSKU: 155144

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
Pulse
LINK-PP
Compatible P/N:
LPJG46945AENL
Volume pricing Online tiers · larger qty or custom price on request
$ 12.600
1–99 pcs
$ 10.458
100–599 pcs
$ 8.946
600–1,199 pcs
$ 7.938
1,200–5,999 pcs
$ 7.056
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
387 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 20
Total Price:
$ 12.60
Packaging Details
20 pcs
400 pcs
Tray
37×30×30 cm
0.025 kg
10 kg

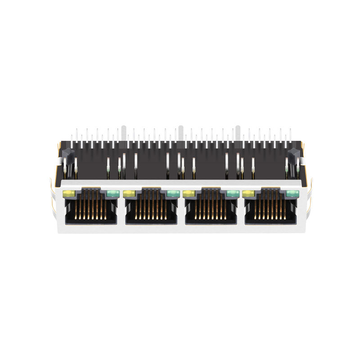

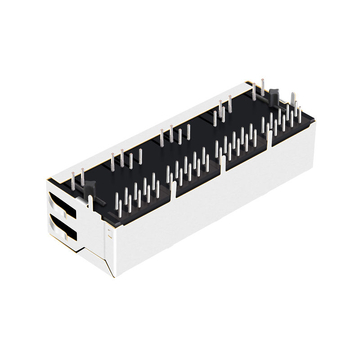

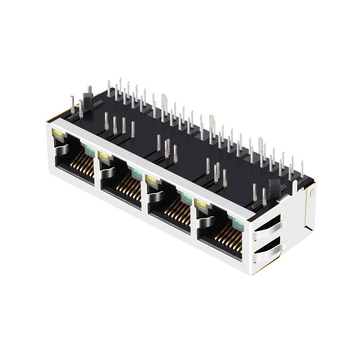

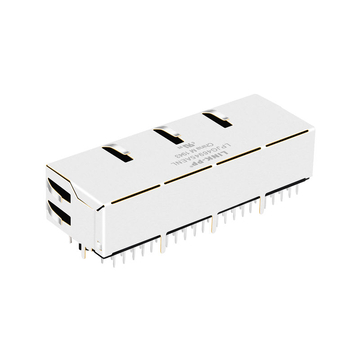

LINK-PP LPJG46945AENL 10/100/1000 Base-T Magnetics RJ45 1x4 Port Connectors with transformer for Optical Terminal and Bluray (Tab Down,Green/Yellow LED)

The LPJG46945AENL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Optical Terminal, Bluray,DVD and Webcams.

LINK-PP Part Number LPJG46945AENL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 10p8c (RJ45, Ethernet) Application-Lan Ethernet(NoN PoE)
Number of Ports 1x4 Port Speed 10/100/1000 Base-T
Latch Down Cores per Port 8
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs With LED Option

Green/Yellow Led

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.527/13.39 Package Length (Inches/mm)

0.831/21.10

Package Width (Inches/mm) 2.325/59.06 Temperature -40℃ TO 85℃
Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJG46945AENL Drawing LPJG46945AENL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Begin by comparing the one to one winding ratio and the tap rails with your schematic, before any traffic is sent. Then train a link at each of the three speeds and watch the error counters. The built in transformer saves placement work, but a wrong tap connection still shows up as poor reach on a long cable. We captured the PHY registers at a hundred and a thousand megabits, then ran a short lead and a ninety metre cable before signing off the batch. by LINK-PP Technical Support
  • A:
    The release tabs sit on the lower face, so the free space has to be below the openings rather than above them. That suits a chassis where a display or label strip occupies the upper panel, but it changes which way the cable boots point once the board is vertical. A recessed lower edge can make the tab awkward to press, so ask the enclosure team to mock it up with a real plug fitted. Check the clearance against the chassis drawing and leave room for the boot bend. by LINK-PP Technical Support
  • A:
    Each opening has a green and a yellow window driven from the PHY, and with four ports that is eight outputs to map. We assigned link and activity the same way on every port, printed that mapping on the legend, then verified the polarity port by port with a live cable on the first board. Getting the colours consistent matters more than which function you pick. A reversed drive shows up as a dark window, which is quick to catch at bring up. by LINK-PP Technical Support
  • A:
    One long shell means a single panel cutout and one set of mounting points, which saves front area but ties the four openings together mechanically. The shield tabs run along the whole strip, so we verified a bond at several places on the bezel rather than at one end only. A damaged port means replacing the entire block, so a spare goes on the shelf. For a dense switch face the trade was worth it, and the shared frame kept all four mouths in one plane. by LINK-PP Technical Support
