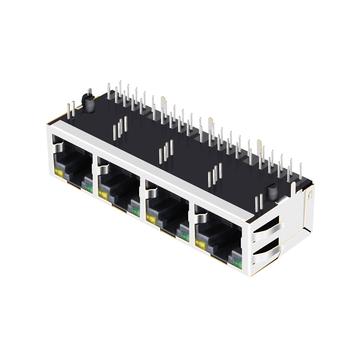

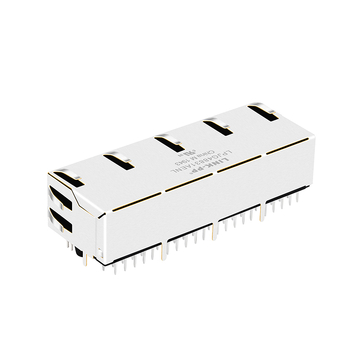

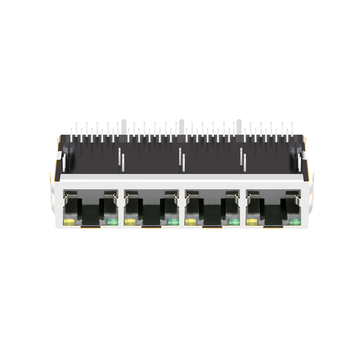

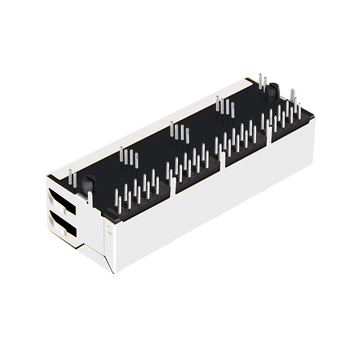

LPJG48831AENL 1000 base-t rj45 1x4 port jacks with magnetics tab up green yellow leds
Click to open expanded view

LPJG48831AENL 1000 Base-T RJ45 1x4 Port Jacks With Magnetics Tab Up Green/Yellow Leds

Product summary

Product
LPJG48831AENL 1000 Base-T RJ45 1x4 Port Jacks With Magnetics Tab Up Green/Yellow Leds
SKU
174364
P/N
LPJG48831AENL
Price
$ 10.60
Stock
3502 in Stock
Sold
9K
Unit price $ 10.60
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJG48831AENLSKU: 174364

LINK-PP originalDatasheetAll downloads

Compatible:
Pulse
LINK-PP
Compatible P/N:
LPJG48831AENL
Volume pricing Online tiers · larger qty or custom price on request
$ 10.600
1–99 pcs
$ 8.795
100–599 pcs
$ 7.523
600–1,199 pcs
$ 6.675
1,200–5,999 pcs
$ 5.934
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
3502 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 20
Total Price:
$ 10.60
Packaging Details
20 pcs
400 pcs
Tray
37×30×30 cm
0.026 kg
10.7 kg

LINK-PP LPJG48831AENL 10/100/1000 Base-T RJ45 Jacks With Magnetics for Hard Disk Players and Internet Of things Gateways (1x4 Port,Tab Up,Green/Yellow LED)


The LPJG48831AENL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as VoIP Gateways, PoE Repeater,DVD and Webcams.


LINK-PP Part Number:
LPJG48831AENL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
10p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x4 PortSpeed
10/100/1000 Base-T
Latch
UpCores per Port
12
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1.00/25.40

Package Width (Inches/mm)
2.331/59.20
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJG48831AENL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Each mouth has its own clip on the upper face. Pulling one plug leaves the other three firmly seated. Ours gets a patch cable moved most weeks. No neighbouring port has ever dropped during a swap. by LINK-PP Technical Support
  • A:
    Green and yellow are wired per port on this body. The firmware can show a link on one segment while another faults. Ours drives them from the switch ASIC. One shared lamp would hide which segment is down. by LINK-PP Technical Support
  • A:
    A single metal shell wraps the row with tabs down both long sides. All four mouths share the bond. Ours ties the shell to the chassis at the panel screws. Each mouth keeps its own latch. by LINK-PP Technical Support
  • A:
    The body runs 59.20 mm across and 13.50 mm tall. A 1U front gets four ports in a small strip. Ours leaves room for a fifth port later. The mounting posts are marked on the drawing. by LINK-PP Technical Support
  • A:
    One body gives four mouths on a single drill pattern. The panel stays tidy and the board needs one footprint. Ours feeds four segments from the same face. The row is 59.20 mm wide across the front. by LINK-PP Technical Support

Customer Reviews

  • 5

    43 Reviews

  • 5 Stars
    98%
    4 Stars
    2%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (43)
No data
K***n
Verified Purchase
5.0
2026-11-14
Green over yellow on each. No fuss wiring the lamp legs.
R***d
Verified Purchase
5.0
2026-03-31
Four ports, one plate. It sat within spec on the height.
I***s
Verified Purchase
5.0
2025-10-05
The nurse call desk needed four jacks on a single plate, and four separate bodies would have meant four cutouts and four sets of screws. This one block covered the whole opening. We fitted six desks and every port held its link through a full shift. Both ports trained as described.
D***n
Verified Purchase
4.0
2025-05-16
The block came in with a scuffed end, but all four mouths were square and each port trained at gigabit, so the nurse call desk went live. The link came up within spec on the meter.
S***s
Verified Purchase
5.0
2024-12-22
Four in a row, 59.20 mm across. The panel cut needed no filing, no fuss.
