LPJM46938AENL-2 2.5g base-t 1x4 port rj45 magjack tab down green yellow led

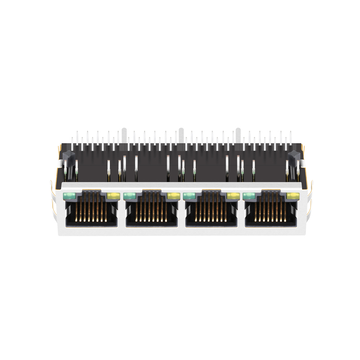

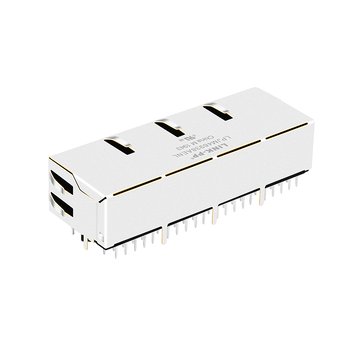

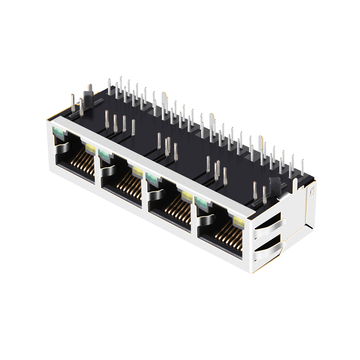

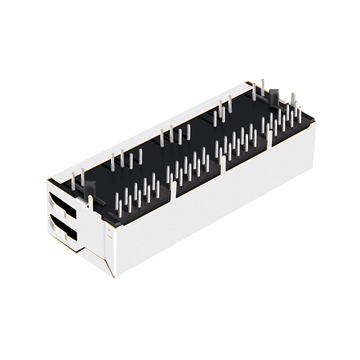

LPJM46938AENL-2 2.5G Base-T 1x4 Port RJ45 Magjack Tab Down Green/Yellow LED

Product summary

Product
LPJM46938AENL-2 2.5G Base-T 1x4 Port RJ45 Magjack Tab Down Green/Yellow LED
SKU
161584
P/N
LPJM46938AENL
Price
$ 12.70
Stock
1799 in Stock
Sold
52.8K
Unit price $ 12.70
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJM46938AENLSKU: 161584

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
LINK-PP
Compatible P/N:
LPJM46938AENL
Volume pricing Online tiers · larger qty or custom price on request
$ 12.700
1–99 pcs
$ 10.539
100–599 pcs
$ 9.016
600–1,199 pcs
$ 8.000
1,200–5,999 pcs
$ 7.111
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1799 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 40
Total Price:
$ 12.70
Packaging Details
40 pcs
360 pcs
Tray
33×33×21 cm
0.023 kg
8.3 kg

LINK-PP LPJM46938AENL-2 2.5G Base-T Ethernet RJ45 Connector for Network Firewall and Monitoring System (1x4 Port , Tab Down,Green/Yellow LED)

The LPJM46938AENL-2 supports speed 2.5G Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Server, Network Firewall,Ethernet Control and Monitoring System.

LINK-PP Part Number: LPJM46938AENL-2 Connector Type Jack
Part Status Active Mounting Type Through Hole
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x4 Port Speed 2.5G Base-T
Latch Down Cores per Port 8
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs With LED Option

Green/Yellow Led

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.527/13.39 Package Length (Inches/mm)

0.831/21.10

Package Width (Inches/mm) 2.325/59.06 Temperature -40℃ TO 85℃
Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJM46938AENL-2 1x4 2.5G-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The part is listed for -40℃ to 85℃. A sealed cabinet in a cold yard stays well inside that range. We ran a batch at -30℃ and the links came up at 2.5G. No cracked housing came back. by LINK-PP Technical Support
  • A:
    The latch sits on the down side, so the plug clip tucks under. That keeps the shell top flat at 13.39 mm and the cover closes clean. Two hundred units went in without a clip catching. by LINK-PP Technical Support
  • A:
    The body measures 59.06 mm across and 13.39 mm high. That width covers four mouths in one frame, so a single rectangular cutout works. Our back plate needed no extra notch between any of the ports. by LINK-PP Technical Support
  • A:
    Yes, every port on this bank is rated for 2.5G Base-T. All four use the same magnetics build, so no mouth is slower than the rest. Our rack ran four links at 2.5G at once and held. by LINK-PP Technical Support

Customer Reviews

  • 5

    84 Reviews

  • 5 Stars
    99%
    4 Stars
    1%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (84)
No data
M***o
Colombia
Verified Purchase
5.0
2026-11-16
No PoE here, just four clean copper ports at 2.5G.
N***a
Hungary
Verified Purchase
5.0
2026-06-12
We put this on a shelf that carries four 2.5G copper links. The body is 59.06 mm across, each port has its own transformer inside the housing, and the latch sits down so a lead cannot catch the shelf above. Two hundred shelves have gone out and every port has trained clean at 2.5G.
M***n
Singapore
Verified Purchase
5.0
2026-02-19
Four 2.5G ports on one clean 59.06 mm body.
E***t
Czech Republic
Verified Purchase
5.0
2025-07-20
Our uplink shelf runs four 2.5G copper ports on one body, so the placement is one clean hit instead of four. The transformers are inside, and no PoE is needed on this board.
L***l
Portugal
Verified Purchase
5.0
2025-04-12
These sit on a shelf where the copper side has to match the fibre uplink at 2.5G. The latch sits down and keeps a clean gap for the shelf above. :)
