LPJG488148AENL 1x4 port rj45 gigabit magnetic jacks 1000 base-t tab up green yellow led
Click to open expanded view

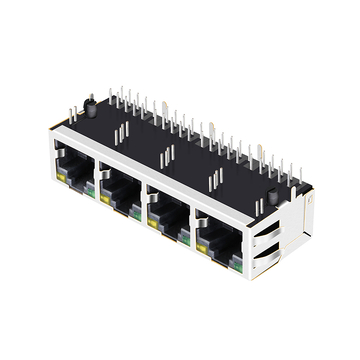

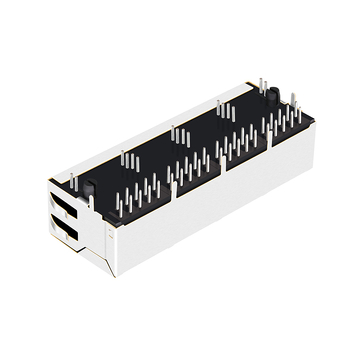

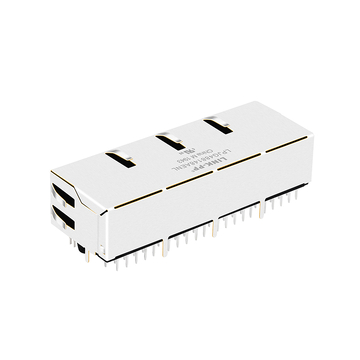

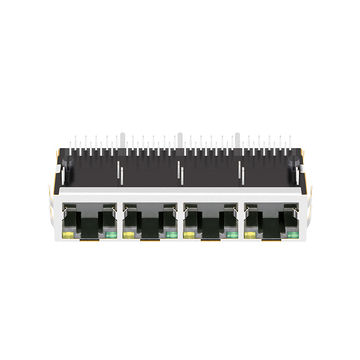

LPJG488148AENL 1x4 Port RJ45 Gigabit Magnetic Jacks 1000 Base-T Tab Up Green/Yellow LED

Product summary

Product
LPJG488148AENL 1x4 Port RJ45 Gigabit Magnetic Jacks 1000 Base-T Tab Up Green/Yellow LED
SKU
171604
P/N
LPJG488148AENL
Price
$ 10.16
Stock
990 in Stock
Sold
10
Unit price $ 10.16
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJG488148AENLSKU: 171604

LINK-PP originalDatasheetAll downloads

Compatible:
LINK-PP
Compatible P/N:
LPJG488148AENL
Volume pricing Online tiers · larger qty or custom price on request
$ 10.160
1–99 pcs
$ 8.432
100–599 pcs
$ 7.213
600–1,199 pcs
$ 6.400
1,200–5,999 pcs
$ 5.689
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
990 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 20
Total Price:
$ 10.16
Packaging Details
20 pcs
400 pcs
Tray
37×30×30 cm
0.025 kg
10 kg

LINK-PP LPJG488148AENL 10/100/1000 Base-T RJ45 Gigabit Magnetic Jacks for Optical Terminal and Bluray (1x4 Port ,Tab Up,Green/Yellow LED)


The LPJG488148AENL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Optical Terminal, Bluray,DVD and Webcams.


LINK-PP Part Number:
LPJG488148AENL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
10p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x4 PortSpeed
10/100/1000 Base-T
Latch
UpCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Yellow Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1.000/25.40

Package Width (Inches/mm)
2.330/59.20
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJG488148AENL Drawing LPJG488148AENL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Keep each port's lens pair immediately beside that port, and print the number under the mouth rather than between two of them. Operators read the nearest lens, so ambiguity turns into a service call. Confirm the mapping with the firmware team after first article and file it with the assembly drawing. by LINK-PP Technical Support
  • A:
    Cords leave upward, so the plate needs clearance above the row for the boot to hinge and for fingers to reach the release. On a long single row that strip runs the full width; a folded lip above it stiffens the plate without stealing the space. Try a booted cord at both end mouths, where the plate is weakest. by LINK-PP Technical Support
  • A:
    It can be. Four gigabit links in one shell lift the internal temperature well above room, so a cabinet already sitting at forty five leaves very little margin. If the install is not air conditioned, choose a wide temperature version of the same footprint rather than assuming the ports will stay idle. by LINK-PP Technical Support
  • A:
    Each mouth gets its own eight core block, so four transformer sets sit side by side under one shield instead of sharing a single core. That is why the height stays low while the width grows. Escape each port's four pairs as pairs and keep them clear of the neighbouring port's routing. by LINK-PP Technical Support

Customer Reviews

  • 5

    48 Reviews

  • 5 Stars
    98%
    4 Stars
    2%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (48)
No data
X***k
Verified Purchase
5.0
2026-11-14
Ordered for a switch face that needs four ports in one row. The second order had the same feel.
B***m
Verified Purchase
5.0
2026-04-26
A port that sat dead turned out to be a pair crossed at the tail, and once it was reseated the row lit green again. No drama at the press station. ;)
Z***o
Verified Purchase
5.0
2025-09-21
Ten contacts, four mouths. The harness took it first try.
U***i
Verified Purchase
5.0
2025-03-31
Body spans 59.20 mm, so lay the four cutouts as one slot. No surprises on the connector height.
W***d
Verified Purchase
4.0
2024-07-09
The first unit had a dented housing and one dead port, but the fault was a crossed pair at the tail row. Reseated, all four mouths run gigabit. It held up at full rate on the bench.
