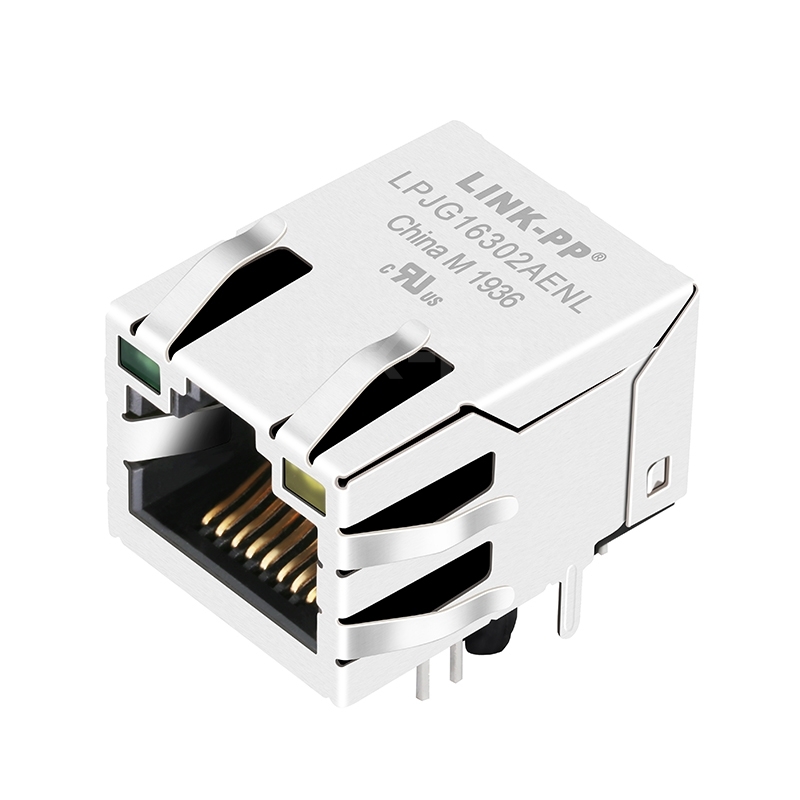

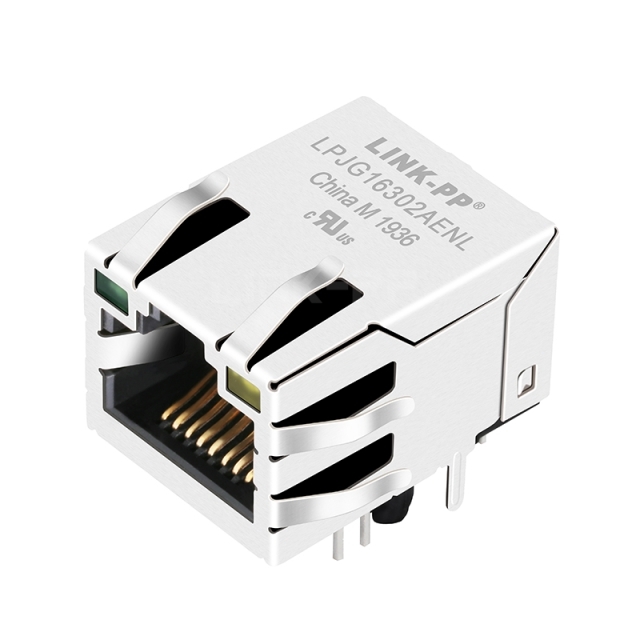

LPJG16302AENL 100/1000 Base-T Single Port RJ45 Magnetic Jack Tab UP Green/Yellow Led

Name: LPJG16302AENL 100/1000 Base-T Single Port RJ45 Magnetic Jack Tab UP Green/Yellow Led
Brand: LINK-PP
SKU: 171326
Price: 3.53 USD
Availability: InStock
Rating: 5 (54 reviews)

Product: LPJG16302AENL 100/1000 Base-T Single Port RJ45 Magnetic Jack Tab UP Green/Yellow Led
SKU: 171326
P/N: LPJG16302AENL
Price: $ 3.53
Stock: 10 in Stock
Sold: 4.6K
Product URL: https://www.l-p.com/products/469729.htm

For Order Over $1000 Get $15 Off , Code: Linkpp15

For Order Over $3000 Get $50 Off , Code: Linkpp50

For Order Over $5000 Get $100 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

54 Reviews

0 Questions

4.6K Sold

$ 3.53

Free shipping over $600. For wholesale pricing, please contact us directly.

Qty (pcs) :

Unit Price :

$ 3.527

100

$ 2.893

600

$ 2.540

1200

$ 1.940

6000

$ 1.658

Manufacture: LINK-PP P/N: LPJG16302AENL SKU: 171326

Compatible:: LINK-PP

Compatible P/N:: LPJG16302AENL

Shipping:

To Be Negotiated

$ 29.47

Can't deliver

to United States via FedEx IP

Estimated delivery time : 3 - 6 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Stock:

10 in Stock .

Quantity:

Total Price:

$ 3.53

Packaging Details:

N.W/pcs: 0.008kg
Package: Tray
SPQ: 50pcs
Qty/carton: 1200pcs
Carton size: 32*30*31cm
G.W/carton: 9kg

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

LINK-PP LPJG16302AENL 100/1000 Base-T RJ45 Magnetic Jack for Digital Camera and Fieldbus System (Single Port, Tab UP, Green/Yellow Led)

The LPJG16302AENL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.

LINK-PP Part Number:	LPJG16302AENL	Connector Type	Jack
Part Status	Active	Mounting Type	Through Hole
Number of Positions/Contacts	10p8c (RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port	Speed	10/100/1000 Base-T
Latch	UP	Cores per Port	8
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Green/Yellow
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.530/13.45	Package Length (Inches/mm)	0.837/21.25
Package Width (Inches/mm)	0.628/15.95	Temperature	0℃ TO 70℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

Magnetic RJ45 Jack

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing LPJG16302AENL.pdf Download
