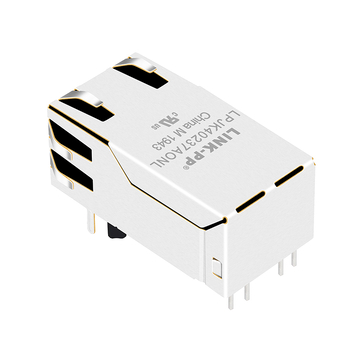

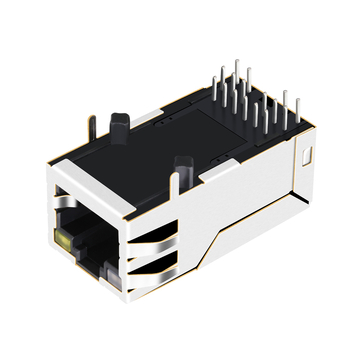

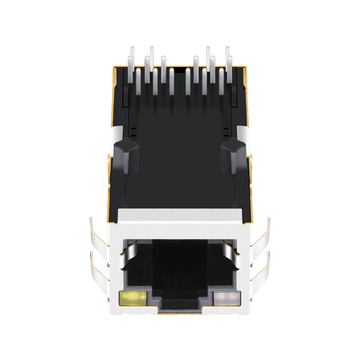

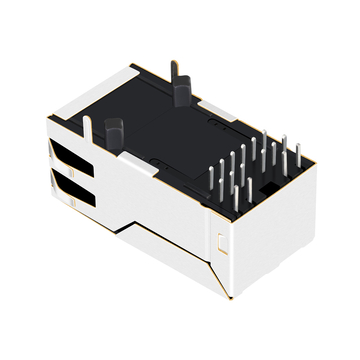

LPJK40237AONL 1000 Base-T Single Port rj45 pcb jack with integrated magnetics Tab Up Orange&Green/Yellow Leds

Name: LPJK40237AONL 1000 Base-T Single Port rj45 pcb jack with integrated magnetics Tab Up Orange&Green/Yellow Leds
Brand: LINK-PP
SKU: 177515
Price: 2.28 USD
Availability: InStock
Rating: 5 (29 reviews)

Product: LPJK40237AONL 1000 Base-T Single Port rj45 pcb jack with integrated magnetics Tab Up Orange&Green/Yellow Leds
SKU: 177515
P/N: LPJK4021AINL
Price: $ 4.85
Stock: 1600 in Stock
Sold: 13.4K
Product URL: https://www.l-p.com/products/473412.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

29 Reviews

0 Questions

13.4K Sold

$ 4.85

Free shipping over $600. For wholesale pricing, please contact us directly.

Qty (pcs) :

Unit Price :

$ 4.85

100

$ 3.977

600

$ 3.492

1200

$ 2.668

6000

$ 2.28

Manufacture: LINK-PP P/N: LPJK4021AINL SKU: 177515

Compatible:: LINK-PP; Belfuse

Compatible P/N:: LPJK40237AONL

Shipping:

To Be Negotiated

$ 29.47

Can't deliver

to United States via FedEx IP

Estimated delivery time : 3 - 6 days.

5-Year Warranty 15-Day Returns 15-Day Exchange

Stock:

1600 in Stock .

Quantity:

Total Price:

$ 4.85

Packaging Details:

N.W/pcs: 0.009kg
Package: Tray
SPQ: 50pcs
Qty/carton: 1000pcs
Carton size: 32*30*31cm
G.W/carton: 8.5kg

Description
Specification
Matching Products
Download
Q&A
Customer Reviews

LINK-PP LPJK40237AONL 100/1000 Base-T rj45 pcb jack with integrated magnetics for Industrial PC and Fieldbus System (Single Port, Tab Up,Orange&Green/Yellow Led)

The LPJK40237AONL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.

LINK-PP Part Number	LPJK40237AONL	Connector Type	Jack
Part Status	Active	Mounting Type	Through Hole
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port	Speed	100/1000 Base-T
Latch	UP	Cores per Port	4
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Orange&Green/Yellow
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.531/13.50	Package Length (Inches/mm)	1.280/32.50
Package Width (Inches)	0.650/16.50	Temperature	-40℃ TO 85℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

rj45 pcb jack

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing LPJK40237AONL.pdf Download
