LPJK2074AHNL 1000 base-t poe rj45 magjack tab up green yellow led

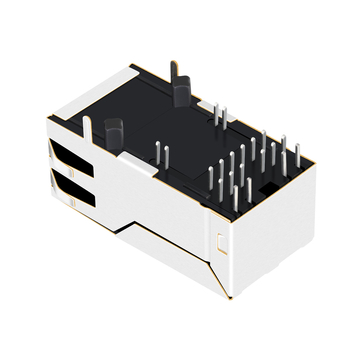

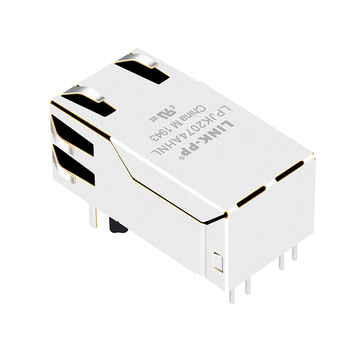

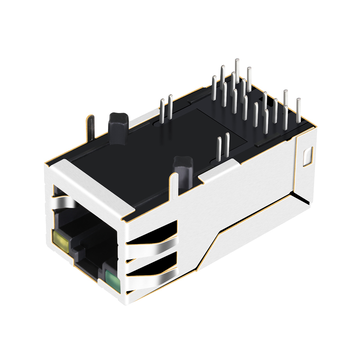

LPJK2074AHNL 1000 Base-T PoE RJ45 Magjack Tab Up Green/Yellow LED

Product summary

Product
LPJK2074AHNL 1000 Base-T PoE RJ45 Magjack Tab Up Green/Yellow LED
SKU
172347
P/N
LPJK2074AHNL
Price
$ 4.85
Stock
1564 in Stock
Sold
31.8K
Unit price $ 4.85
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJK2074AHNLSKU: 172347

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
Halo
LINK-PP
Compatible P/N:
LPJK2074AHNL
Volume pricing Online tiers · larger qty or custom price on request
$ 4.850
1–99 pcs
$ 3.977
100–599 pcs
$ 3.492
600–1,199 pcs
$ 2.668
1,200–5,999 pcs
$ 2.280
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1564 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 4.85
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.008 kg
9 kg

LPJK2074AHNL 1000 Base-T PoE RJ45 Magjack Tab Up Green/Yellow LED

The LPJK2074AHNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3 at, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.

LINK-PP Part Number: LPJK2074AHNL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 16p8c (RJ45, Ethernet) Application-Lan Ethernet( PoE+)
Number of Ports 1x1 Port Speed 10/100/1000 Base-T
Latch UP Cores per Port 8
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs With LED Option

Green/Yellow Leds

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.531/13.50 Package Length (Inches/mm)

1.280/32.50

Package Width (Inches/mm)
0.654/16.60 Temperature

0℃ TO 70℃

Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJK2074AHNL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:

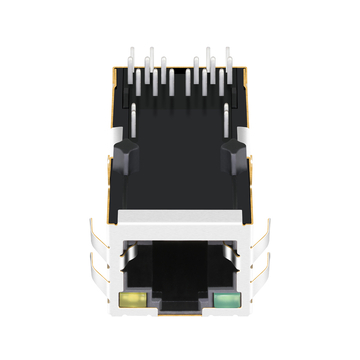

    A green and a yellow lamp sit on the LPJK2074AHNL face, via that line. You map each colour to a state, with this coupler, on our hatch. A bench run proves it on the board, in the tray, via that slot. by LINK-PP Technical Support
  • A:
    EMI tabs are formed on the LPJK2074AHNL front frame, around our port, via the frame. The ground return decides the margin, in the plan, across a note, via our page. The project owner picks the build, on this file, across the coupler. by LINK-PP Technical Support
  • A:
    Ten contacts line the LPJK2074AHNL opening, near the hatch, for a page, under a cage. Some of them drive the lamps, across that carton, across that adapter, for this height. Your case sketch shows the opening, on the bench, via our harness. by LINK-PP Technical Support
  • A:
    LPJK2074AHNL runs 1000 Base-T with PoE on one port, near this grade, with the map. The magnetics sit inside the shell, for this note, via this hatch. The buyer names the grade, with our sheet, under our shelf, with that rig. by LINK-PP Technical Support

Customer Reviews

  • 5

    51 Reviews

  • 5 Stars
    96%
    4 Stars
    4%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (51)
No data
H***m
Verified Purchase
5.0
2026-11-14
A 16p8c mouth with eight cores behind it and the latch on top. It cleared hipot first try.
B***h
Verified Purchase
4.0
2026-06-05
The antenna bracket came with a damaged thread, but sixteen positions held the keyed plug square and the PoE+ feed came up at gigabit on the first try.
A***m
Verified Purchase
5.0
2025-10-23
The rooftop box had been using a jack with a separate transformer on the board, and the 32.50 mm depth of this one reached the bracket standoffs without touching the cable tray. Sixteen positions let the keyed plug seat with room. All 4 boxes trained at gigabit and held. The parts were exactly as described.
Q***d
Verified Purchase
5.0
2025-02-26
Tabs clamp the rim. The latch cleared the bezel first try.
F***y
Verified Purchase
5.0
2024-09-28
13.50 mm tall, 16.60 mm wide, 32.50 mm deep. The panel cut matched the drawing.
