LPJK6078A9NL 1000 base-t rj45 poe++ magjack single port tab up with yellow&green green led
Click to open expanded view

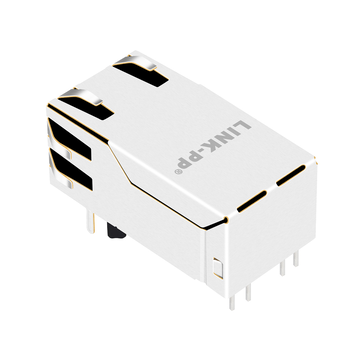

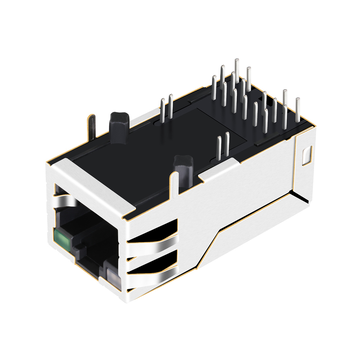

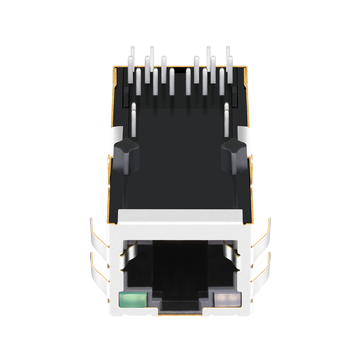

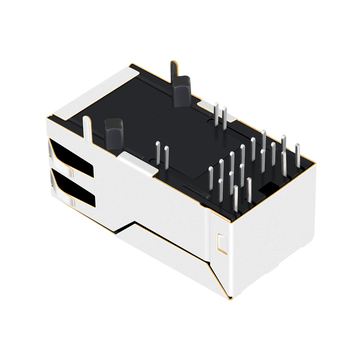

LINK-PP LPJK6078A9NL 1000 Base-T RJ45 PoE++ Magjack Single Port Tab UP With Yellow&Green/Green LED

Product summary

Product
LINK-PP LPJK6078A9NL 1000 Base-T RJ45 PoE++ Magjack Single Port Tab UP With Yellow&Green/Green LED
SKU
203222
P/N
LPJK6078A9NL
Price
$ 5.50
Stock
100 in Stock
Sold
8.9K
Unit price $ 5.50
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LPJK6078A9NLSKU: 203222

LINK-PP originalDatasheetAll downloads

Compatible P/N:
LPJK6078A9NL
Volume pricing Online tiers · larger qty or custom price on request
$ 5.500
1–99 pcs
$ 4.510
100–599 pcs
$ 3.960
600–1,199 pcs
$ 3.025
1,200–5,999 pcs
$ 2.585
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
100 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 60
Total Price:
$ 5.50
Packaging Details
60 pcs
840 pcs
Tray
37×30×30 cm
0.011 kg
9 kg

LINK-PP LPJK6078A9NL RJ45 PoE++ Jack Single Port With 1000 Base-T Integrated Magnetics, Yellow&Green/Green LED, Tab UP, RoHS


LINK-PP Part Number
LPJK6078A9NL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
10p8c (RJ45, Ethernet) Application-Lan
Ethernet(PoE++)
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
UpCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Yellow&Green/Green

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1.280/32.50

Package Width (Inches/mm)
0.650/16.50Temperature

-40℃ TO 85℃

Bst Circuit
YesAutomDX

YES

Diodes
-Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJK6078A9NL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The part is specified for 1000Base-T. On the bench it will link at 2.5G over short cable because the magnetics bandwidth is wider than needed, but we do not rate it there and the return loss at 2.5G is not characterised. If you need 2.5G, use a 2.5G rated magjack. Shipping an unrated combination works until a customer runs 100m of Cat5e in a hot cabinet. by LINK-PP Technical Support
  • A:
    Just the body, measured from the PCB top surface to the highest point of the plastic housing. The LED lens sits inside that envelope. If you add a light pipe housing on top, budget another 2 to 3mm. In a 15mm internal height you have 1.5mm, which is enough for a thin foam pad but not for a light pipe, so plan the LED indication on a front panel board instead. by LINK-PP Technical Support
  • A:
    Both are rated 20mA nominal and work from 5mA. At 10mA you get good visibility through a 3mm light pipe with less heat. Use 330 ohm from 3.3V for about 6mA, or 150 ohm for 12mA on a thick panel. Do not share one resistor between the two LEDs, their forward voltages differ and the brightness will be uneven. by LINK-PP Technical Support
  • A:
    Mask a window under each side of the shield, 4mm by 10mm is enough, and keep the coating off it. Then check continuity from the shield to a chassis screw, target under 1 ohm. If masking is not possible, add a conductive gasket or a ground finger. Powder coat is 60 to 100 microns and will not conduct, so an unmasked tab is effectively floating. by LINK-PP Technical Support
  • A:
    The BST network sits across the centre taps and improves common mode balance, which shows up as lower emissions around 30 to 100MHz and slightly better return loss at the low end. On a PoE++ port next to a switching supply it usually removes the need for a separate common mode choke. For a 10/100 port the plain version is enough, but at 1G with 90W I would keep the BST. by LINK-PP Technical Support
  • A:
    Yes for class 8 at 90W, that is the design case. The limit is thermal, not the contacts. At 90W across two pairs you have about 1.1A per pair and the winding runs 30 to 35℃ above ambient. Keep ambient under 60℃ or derate. If your enclosure runs hotter, split the current across four pairs in a 4PPoE design, which cuts the per-winding loss by roughly half. by LINK-PP Technical Support
