LPJK2065AONL 100 1000 base-t tab up 1x1 port shielded magnetic poe rj45 jack orange&green yellow led

LPJK2065AONL 100/1000 Base-T Tab Up 1x1 Port Shielded Magnetic POE RJ45 Jack Orange&Green/Yellow Led

Product summary

Product
LPJK2065AONL 100/1000 Base-T Tab Up 1x1 Port Shielded Magnetic POE RJ45 Jack Orange&Green/Yellow Led
SKU
156110
P/N
LPJK2065AONL
Price
$ 4.85
Stock
1295 in Stock
Sold
9.9K
Unit price $ 4.85
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJK2065AONLSKU: 156110

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LPJK2065AONL
Volume pricing Online tiers · larger qty or custom price on request
$ 4.850
1–99 pcs
$ 3.977
100–599 pcs
$ 3.492
600–1,199 pcs
$ 2.668
1,200–5,999 pcs
$ 2.280
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1295 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 60
Total Price:
$ 4.85
Packaging Details
60 pcs
840 pcs
Tray
37×30×30 cm
0.011 kg
9 kg

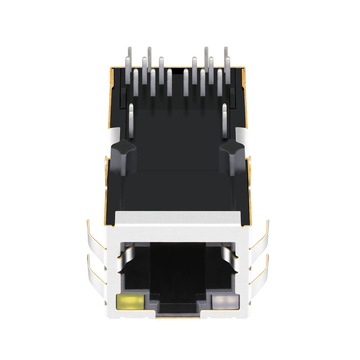

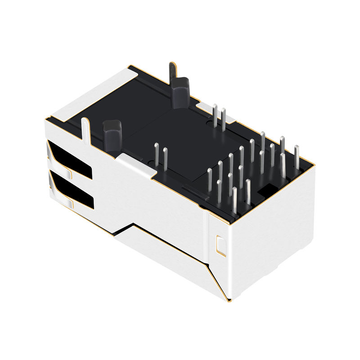

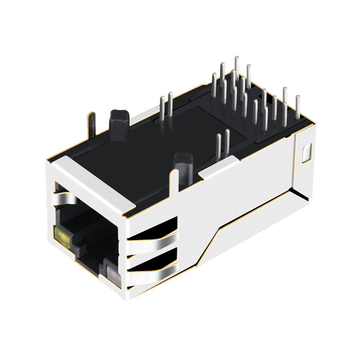

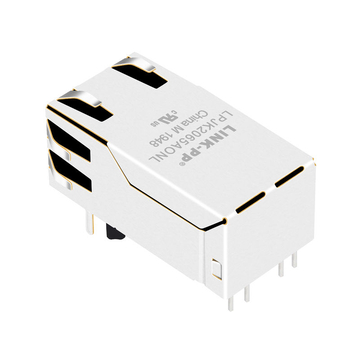

LINK-PP LPJK2065AONL 100/1000 Base-T Shielded Magnetic POE RJ45 Jack for Network Card and The Handheld Device (POE, 1x1 Port, Tab Up, Orange&Green/Yellow Led)


The LPJK2065AONL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3 af, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Network Card,Smart Home, The Handheld Device and Game Controller.


LINK-PP Part Number:
LPJK2065AONL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
12p8c (RJ45, Ethernet) Application-Lan
Ethernet( PoE )
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
UPCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Orange&Green/Yellow Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1.3/33.02

Package Width (Inches)
0.654/16.60Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJK2065AONL Drawing LPJK2065AONL-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    It is a deliberately split pair, so fix the convention in firmware before release: we used steady orange for link and blinking yellow for activity, and both states were correct on the first thirty boards. Check polarity with a clamped 3.3 V source on the bench, as the dies are not reverse protected. Mechanically the jack is 13.50 mm high and 16.60 mm wide with Tab Up, which sat under our low network card bracket with 0.3 mm to spare and no shim. by LINK-PP Technical Support
  • A:
    On our board the centre tap decoupling sat 18 mm from the pins and the common mode noise stopped the higher rate from training, while 100 Base-T stayed up. Moving the capacitors back to the connector and shortening those traces held 1000 Base-T for a 24 hour soak at a 12 W load. Match the four pairs within about 2 mm and keep switching regulators away from the centre taps. The magnetics inside the jack were fine the whole time. by LINK-PP Technical Support
  • A:
    Keep them as separate paths. We held readings of 0.05 to 0.09 ohm on ten jacks and gave the shield fingers two chassis vias within 5 mm, while the centre taps go to the PSE rails through the bridge as your scheme requires. Do not tie the shield into the PoE return and do not rely on a thin ground pour. With power on the data pairs, a noisy or long chassis path shows up as link retraining at the higher rate. Verify hipot on the assembled board. by LINK-PP Technical Support
  • A:
    No. Eight contacts take the data pairs while the other four are assigned to the indicators and the powered centre taps, so an 8p8c symbol leaves powered pins unassigned. Rebuild it from the LPJK2065AONL drawing and count all twelve before tooling; our own symbol review took longer than it should because the pinout is printed small. Once mapped, the PoE link came up first time. A copied footprint is the usual cause of a dead link or a missing supply on this part. by LINK-PP Technical Support
