LPJK6064AONL 100 1000 base-t poe+ rj45 magjack tab up orange&green yellow led

LPJK6064AONL 100/1000 Base-T PoE+ RJ45 Magjack Tab Up Orange&Green/Yellow LED

Product summary

Product
LPJK6064AONL 100/1000 Base-T PoE+ RJ45 Magjack Tab Up Orange&Green/Yellow LED
SKU
142496
P/N
LPJK6064AONL
Price
$ 5.29
Stock
786 in Stock
Sold
31K
Unit price $ 5.29
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJK6064AONLSKU: 142496

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LPJK6064AONL
Volume pricing Online tiers · larger qty or custom price on request
$ 5.290
1–99 pcs
$ 4.339
100–599 pcs
$ 3.810
600–1,199 pcs
$ 2.910
1,200–5,999 pcs
$ 2.487
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
786 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 60
Total Price:
$ 5.29
Packaging Details
60 pcs
840 pcs
Tray
37×30×30 cm
0.011 kg
9 kg

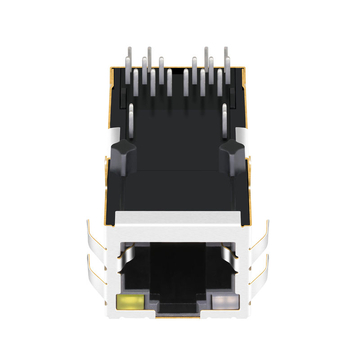

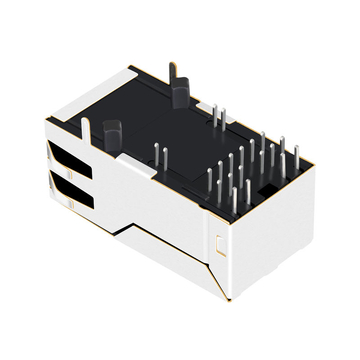

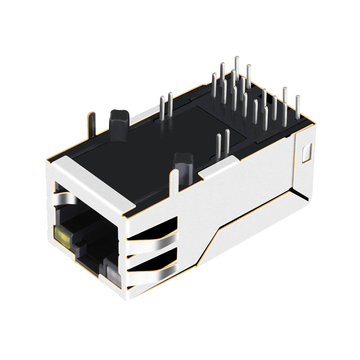

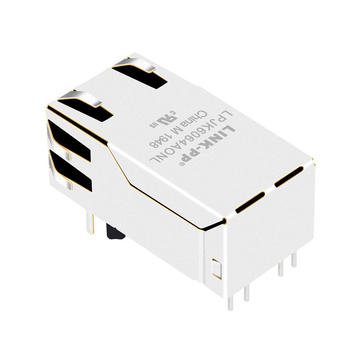

LINK-PP LPJK6064AONL 100/1000 Base-T POE+ RJ45 jack with Magnetics for Solar Inverter and Smart Home (POE+, 1x1 Port, Tab Up, Orange&Green/Yellow Led)

The LPJK6064AONL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3 at, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Home, , Fieldbus System and Game Controller.

LINK-PP Part Number: LPJK6064AONL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 12p8c (RJ45, Ethernet) Application-Lan Ethernet( PoE+ )
Number of Ports 1x1 Port Speed 10/100/1000 Base-T
Latch UP Cores per Port 8
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs With LED Option

Orange&Green/Yellow Leds

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.531/13.50 Package Length (Inches/mm)

1.281/32.55

Package Width (Inches) 0.654/16.60 Temperature

-40℃ TO 85℃

Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

3D Files LPJK6064AONL.3d_stp.zip

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question

Customer Reviews

  • 4.9

    24 Reviews

  • 5 Stars
    92%
    4 Stars
    8%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (24)
No data
C***t
Switzerland
Verified Purchase
5.0
2026-11-16
PoE+ gigabit in one jack, worth it.
T***d
Philippines
Verified Purchase
4.0
2026-10-17
One jack came with a bent shell tab, but the openings were clean and the PoE+ pairs carried 30 W without the shell warming. Nothing on the part got hot after an hour.
K***g
New Zealand
Verified Purchase
5.0
2026-09-18
12p8c instead of 8p8c, worth it for the power pairs. =)
J***l
Poland
Verified Purchase
5.0
2026-09-15
This replaced a jack from another vendor that kept failing our Hi-Pot test after reflow. The difference was the internal isolation, this one holds 1500VAC with no flashover even on the units we ran at the top of the reflow window. Contact resistance on a sample after 400 insertions was 12 milliohms. The only thing I would change is the packaging, the tray holds twenty and we use them in hundreds, so we are always opening trays.
D***t
Ukraine
Verified Purchase
5.0
2026-03-27
We qualified this for a product that ships with a 30W injector and a gigabit uplink. What I would flag is the page: it lists the width in inches without the millimetre equivalent, and the positions are 12p8c rather than the 8p8c most people expect. Neither is a fault with the part, but both cost us a phone call to confirm. The jack itself has been consistent across four lots.
