LPJG0801CNL 100 1000 base-t rj45 gigabit magnetic jack tab down without led

LPJG0801CNL 100/1000 Base-T RJ45 Gigabit Magnetic Jack Tab Down Without Led

Product summary

Product
LPJG0801CNL 100/1000 Base-T RJ45 Gigabit Magnetic Jack Tab Down Without Led
SKU
171632
P/N
LPJG0801CNL
Price
$ 5.69
Stock
9725 in Stock
Sold
53.2K
Unit price $ 5.69
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJG0801CNLSKU: 171632

LINK-PP originalDatasheet3D ModelAll downloads

Compatible P/N:
LPJG0801CNL
Volume pricing Online tiers · larger qty or custom price on request
$ 5.690
1–99 pcs
$ 4.663
100–599 pcs
$ 4.095
600–1,199 pcs
$ 3.128
1,200–5,999 pcs
$ 2.673
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
9725 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 5.69
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.008 kg
9 kg

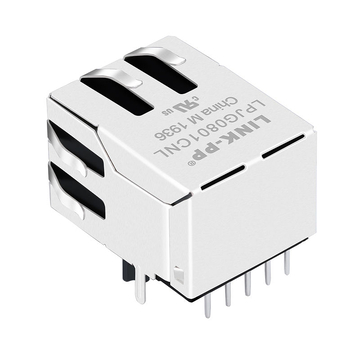

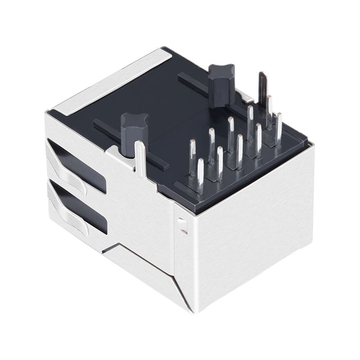

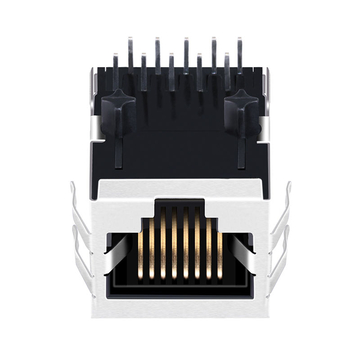

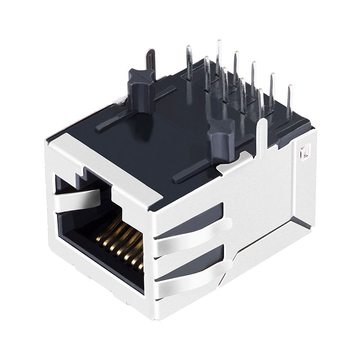

LINK-PP LPJG0801CNL 100/1000 Base-T RJ45 Gigabit Magnetic Jack for Video Recorder and Media Player (One Port, Tab Down, Without Led)


The LPJG0801CNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Solar Inverter, Game Controller, Set-top Box and Intercom.


LINK-PP Part Number:
LPJG0801CNL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
10p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
Down Cores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Without

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.528/13.40Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm)
0.626/15.90Temperature

0 TO +70℃

Bst Circuit
YESAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

LPJG0801CNL Drawing LPJG0801CNL-Drawing.pdf
