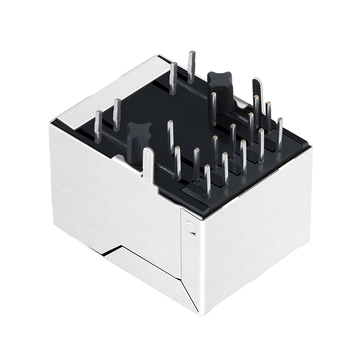

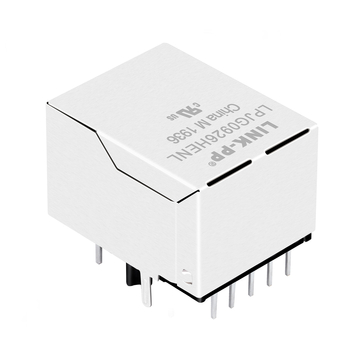

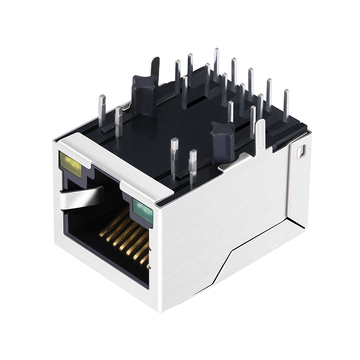

LINK-PP LPJG0926HENL 100/1000 Base-T Single Port RJ45 PoE+ Gigabit MagJack (POE+,Tab Down, Green/Yellow LED)
The LINK-PP LPJG0926HENL is an industry-standard, single-port (1x1) Gigabit Ethernet RJ45 connector with integrated magnetics (Magjack) and PoE+ support. Engineered for outstanding reliability and signal integrity, this 10/100/1000 Base-T network modular jack is widely specified for advanced hardware platforms, including Raspberry Pi 3B+ designs, Raspberry Pi Compute Module 4 IO Board (CM4IO) projects, industrial PCs (IPCs), smart intercom systems, and power supplies (SMPS).
As a high-performance integrated RJ45 jack, the LPJG0926HENL eliminates the need for separate discrete LAN transformers, saving valuable PCB real estate and simplifying circuit layouts in high-density electronic designs.
Industry-Wide Compatibility & Cross-Reference:
The LINK-PP LPJG0926HENL serves as a direct drop-in, pin-to-pin compatible replacement for major competitor part numbers. It shares identical mechanical dimensions, electrical schematics, and footprint layouts with:
- TE Connectivity: 5-2337992-8
- EDAC: A70-112-331N126
- Compatible Boards: Fully compliant with the official Raspberry Pi CM4IO board, matching the natively specified network jack dimensions and pinouts.
| LINK-PP Part Number |
LPJG0926HENL |
Connector Type |
Jack |
| Part Status |
Active |
Mounting Type |
Through Hole |
| Number of Positions/Contacts |
10p8c (RJ45, Ethernet) |
Application-Lan |
Ethernet(PoE+) |
| Number of Ports |
1x1 Port |
Speed |
10/100/1000 Base-T |
| Latch |
Down |
Cores per Port |
8 |
| Orientation |
90° Angle (Right) |
PCB Mount Angle |
SIDE ENTRY
|
| Shield EMI Tabs |
Without |
LED Option |
Green/Yellow
|
| PCB |
FR4 |
PCB Retaining Post |
T POST
|
| Package Height (Inches/mm) |
0.524/13.30 |
Package Length (Inches/mm) |
0.837/21.25
|
| Package Width (Inches/mm) |
0.627/15.93 |
Temperature |
0℃ TO 70℃
|
| Bst Circuit |
Yes |
AutomDX |
YES
|
| Diodes |
No |
Contact Mating Area Plating |
GOLD 6u"/15u"/30u"
|
| Turns Ratio RX/TX |
1CT:1CT |
Configuration RX/TX |
T,C
|
Detailed Technical Specifications of LPJG0926HENL:
1. Electrical Performance & Magnetics:
- Data Rate: 10/100/1000 Base-T (Gigabit Ethernet)
- PoE Standard: Compliant with IEEE 802.3at (PoE+) standard, delivering up to 30W of power to connected devices (PDs).
- Inductance (OCL): 350uH Minimum at 100KHz, 0.1V with 8mA DC Bias.
- Turns Ratio (TX/RX): 1CT:1CT Transmitter / 1CT:1CT Receiver, ensuring balanced signal transformation.
- Isolation Voltage: 1500Vrms minimum, protecting downstream ICs and microcontrollers from electrical surges and transients.
2. Mechanical Structure & Physical Configuration:
- Orientation: 90-degree Right Angle, Side Entry interface.
- Mounting Type: Through-Hole (THT) Solder mounting pins for robust mechanical attachment to the PCB.
- Latch Direction: Latch Down (Tab Down) configuration.

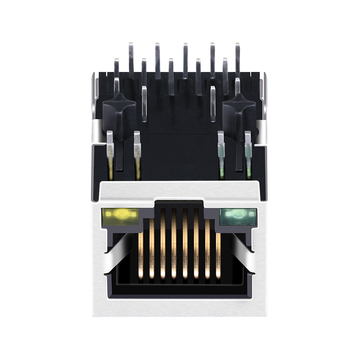

- LED Configuration: Dual LED indicators (Left: Green, Right: Yellow) for real-time link and activity status monitoring.
- Shielding Structure: Copper alloy shield with solder tail pins; designed without EMI Tab contacts, matching standard industrial enclosures.
- Overall Dimensions: Width: 15.93 mm, Height: 13.30 mm, Length/Depth: 21.25 mm.
3. Materials & Environmental Standards:
- Housing Material: Thermoplastic, UL 94V-0 rated (black).
- Contact Plating: Gold plating over nickel on mating area for low contact resistance and long cycle life.
- Operating Temperature: Rated for standard commercial operating temperature range (0°C to 70°C).
- Compliance: Compliant with global environmental and safety directives: UL Certified, RoHS Directive, REACH Compliant, manufactured under ISO9001 and ISO14001 certified quality control systems.
Key Benefits of Sourcing LINK-PP LPJG0926HENL:
- Seamless Replacement: Since the physical footprint, pin layout, and LED positions match industry-standard specifications, hardware design engineers can seamlessly swap this component during assembly without updating Altium, Eagle, or KiCad footprint libraries.
- Stable Supply Chain Solution: Avoid long lead times and supply chain delays. LINK-PP maintains standard stock levels of the LPJG0926HENL to ensure stable delivery times for mass production orders.
- Optimized for Automated SMT/THT Assembly: Packaged in secure, anti-static trays (50 pieces per tray, 1000 pieces per master carton) compatible with manual insertion and wave soldering production lines.
Sample & Engineering Support:
Technical datasheets, 2D mechanical drawings, 3D STP CAD files, and free engineering prototype samples of the LPJG0926HENL magjack are available upon request. Contact our sales engineering team to verify your hardware cross-reference list and secure your volume quotation.
