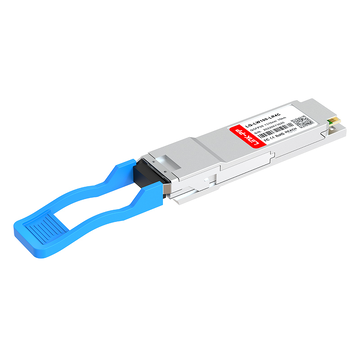

HW 02311KNU Compatible LINK-PP 100G QSFP28 Specifications The HW 02311KNU Compatible LINK-PP module is a 100GBASE-LR4 QSFP28 optical transceiver designed for high-speed Ethernet links over single-mode fiber. It supports an aggregate data rate of 103.125Gb/s, a maximum reach of 10km, and provides stable duplex LC connectivity with DDM support for real-time monitoring. HW Part Number02311KNUVendor NameLINK-PP Form Factor QSFP28 Max Data Rate 103.1Gbps Wavelength 1295.56nm, 1300.05nm, 1304.58nm and 1309.14nm Max Cable Distance 10km Connector Duplex LC

HW 0231A0A8-I Compatible LINK-PP 10G SFP+ Specifications The HW 0231A0A8-I Compatible LINK-PP module is a ruggedized, industrial-grade 10Gbps optical transceiver built to withstand extreme temperatures while delivering reliable data transport over Single-Mode Fiber. Utilizing a 1310nm laser and a Duplex LC connector, it achieves a maximum reach of 10 kilometers and includes built-in DOM for continuous operational monitoring. HW Part Number0231A0A8-IVendor NameLINK-PP Part Status Active Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength 1310nm Max

HW 0231A4-1350 Compatible LINK-PP 1.25G SFP CWDM Single Mode Optical Transceiver Module(1350nm,40km,DOM,Duplex LC) The HW 0231A4-1350 Compatible LINK-PP SFP optical transceiver combines reliable long-haul communication and economical design. Operating at 1.25Gbps over single-mode fiber up to 40km, it integrates a CWDM DFB transmitter, a PIN receiver with trans-impedance preamplifier, and MCU control circuitry. Fully compliant with Class I laser safety regulations, it is compatible with the SFP Multi-Source Agreement and includes complete SFF-8472 digital diagnostics. HW Part Number0231A4

HW 0231A2-1350 Compatible LINK-PP 1.25G SFP CWDM Duplex LC/UPC SMF Optical Transceiver Module for Transmission (SMF, 1350nm, 20km,DOM) HW 0231A2-1350 Compatible LINK-PP Product Features: Supports up to 1.25Gbps bit rates Hot-pluggable SFP footprint CWDM DFB laser and PIN photo detector, Up to 20km for SMF transmission Compliant with SFP MSA and SFF-8472 with duplex LC receptacle Compatible with RoHS Single +3.3V power supply Real Time Digital Diagnostic Monitoring HW Part Number0231A2-1350Vendor NameLINK-PP Form Factor SFP Max Data Rate 1.25Gbps Wavelength 1350nm Max Cable Distance 20

HW 0231A2-1370 Compatible LINK-PP 1.25G SFP CWDM Duplex LC/UPC SMF Optical Transceiver Module for Transmission (SMF, 1370nm, 20km,DOM) HW 0231A2-1370 Compatible LINK-PP Product Features: Supports up to 1.25Gbps bit rates Hot-pluggable SFP footprint CWDM DFB laser and PIN photo detector, Up to 20km for SMF transmission Compliant with SFP MSA and SFF-8472 with duplex LC receptacle Compatible with RoHS Single +3.3V power supply Real Time Digital Diagnostic Monitoring HW Part Number0231A2-1370Vendor NameLINK-PP Form Factor SFP Max Data Rate 1.25Gbps Wavelength 1370nm Max Cable Distance 20

HW 0231A2-1410 Compatible LINK-PP 1.25G SFP CWDM Duplex LC/UPC SMF Optical Transceiver Module for Transmission (SMF, 1410nm, 20km,DOM) HW 0231A2-1410 Compatible LINK-PP Product Features: Supports up to 1.25Gbps bit rates Hot-pluggable SFP footprint CWDM DFB laser and PIN photo detector, Up to 20km for SMF transmission Compliant with SFP MSA and SFF-8472 with duplex LC receptacle Compatible with RoHS Single +3.3V power supply Real Time Digital Diagnostic Monitoring HW Part Number0231A2-1410Vendor NameLINK-PP Form Factor SFP Max Data Rate 1.25Gbps Wavelength 1410nm Max Cable Distance 20

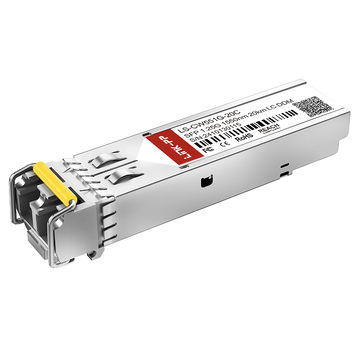

HW 0231A2-1550 Compatible LINK-PP 1.25G SFP CWDM Duplex LC/UPC Optical Transceiver Module (SMF, 1550nm, 20km,DOM) The HW 0231A2-1550 Compatible LINK-PP SFP transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps and 20kmtransmission distance with SMF. The transceiver consists of three sections: a CWDM DFB laser transmitter, a PIN photodiode integrated with atrans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital

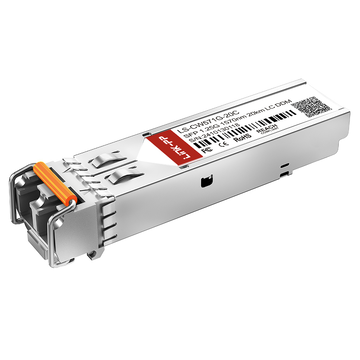

HW 0231A2-1570 Compatible LINK-PP 1.25G SFP CWDM Duplex LC/UPC Optical Transceiver Module (SMF,1570nm,20km,DOM) The HW 0231A2-1570 Compatible LINK-PP SFP transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps and 20kmtransmission distance with SMF. The transceiver consists of three sections: a CWDM DFB laser transmitter, a PIN photodiode integrated with atrans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital

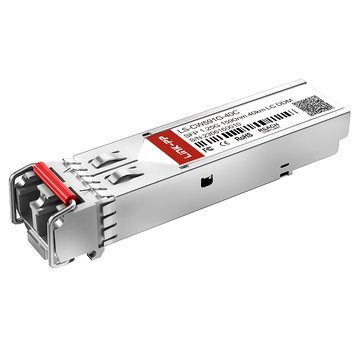

HW 0231A4-1590 Compatible LINK-PP 1.25G SFP CWDM Single Mode Optical Transceiver Module(1590nm,40km,SMF,Duplex LC,DOM) The HW 0231A4-1590 Compatible LINK-PP module is a high performance, cost effective 1.25G SFP transceiver designed for single-mode fiber networks. It supports reliable data transmission up to 40 km using a CWDM DFB laser, with built-in digital diagnostics (SFF-8472) and full compliance with SFP MSA and Class 1 laser safety standards.   HW Part Number0231A4-1590Vendor NameLINK-PP Form Factor SFP Max Data Rate 1.25Gbps Wavelength 1590nm Max Cable Distance 40km

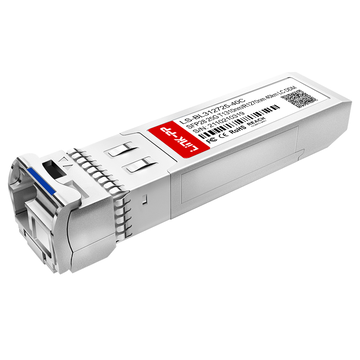

HW 25GBase-BX-D4 Compatible LINK-PP 25G SFP28 Specifications 25GBase-BX-D4 operates as a 25G SFP28 BiDi single-mode optical transceiver module, delivering reliable 40km connectivity over 1310nm-TX/1270nm-RX wavelengths within a 0 to 70°C commercial temperature envelope. HW Part Number25GBase-BX-D4Vendor NameLINK-PP Form Factor SFP28 Max Data Rate 25.78Gbps Wavelength 1310nm-TX/1270nm-RX Max Cable Distance 40km Connector Simplex LC Media SMF Transmitter Type DFB Receiver Type APD TX Power -1 to +7dBm RX Power -15 to +3dBm

HW SFP-10G-ZDWT-56.55 Compatible LINK-PP C26 10G SFP+ DWDM 100GHz Transceiver Module (SMF, 1556.55nm, 80km, Duplex LC, DOM) The HW SFP-10G-ZDWT-56.55 Compatible LINK-PP SFP+ DWDM transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 80km transmission distance with SMF. The transceiver consists of three sections: a Cooled EML laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source

HW DWDM-Sfp10G-1553-33-I Compatible LINK-PP C30 10G SFP+ Specifications DWDM-Sfp10G-1553-33-I is a 10G SFP+ DWDM transceiver operating on the 1553.32nm (C30) wavelength, built with duplex LC interfaces for 40km single-mode transmission and equipped with real-time Digital Optical Monitoring (DOM) to withstand hostile temperatures ranging from -40°C to +85°C. HW Part NumberDWDM-Sfp10G-1553-33-IVendor NameLINK-PP Form Factor SFP+ Max Data Rate 10.7Gbps Wavelength 1553.32nm  Max Cable Distance 40km Connector Duplex LC Media SMF

HW SFP-10G-ZDWT-51.72 Compatible LINK-PP C32 10G SFP+ DWDM 100GHz Transceiver Module (SMF, 1551.72nm, 80km, Duplex LC, DOM) The HW SFP-10G-ZDWT-51.72 Compatible LINK-PP module is a 10G SFP+ DWDM optical transceiver engineered for reliable long-distance fiber transmission, supporting 10Gbps data rates over up to 80 km of single-mode fiber. Its robust three-stage internal hardware platform integrates a cooled EML laser transmitter, APD photodiode paired with trans-impedance preamplifier (TIA), and dedicated MCU control circuitry. Every module complies with global Class 1 laser safety

HW SFP-10G-ZDWT-50.92 Compatible LINK-PP C33 10G SFP+ DWDM Optical Transceiver Module (SMF, 1550.92nm, 80km, LC, DOM) The HW SFP-10G-ZDWT-50.92 Compatible LINK-PP module is a 10G SFP+ DWDM optical transceiver engineered for reliable long-distance fiber transmission, supporting 10Gbps data rates over up to 80 km of single-mode fiber. Its robust three-stage internal hardware platform integrates a cooled EML laser transmitter, APD photodiode paired with trans-impedance preamplifier (TIA), and dedicated MCU control circuitry. Every module complies with global Class 1 laser safety

HW SFP-10G-ZDWT-44.52 Compatible LINK-PP C41 10G SFP+ DWDM Optical Transceiver Module (SMF, 1544.52nm, 80km, Duplex LC, DOM) Designed for long-haul single-mode fiber communication, HW SFP-10G-ZDWT-44.52 Compatible LINK-PP DWDM SFP+ optical transceiver sustains consistent 10Gbps signal transmission up to 80 kilometers. The three-tier internal hardware setup features temperature-controlled EML laser, APD receiver integrated with TIA trans-impedance amplifier and independent MCU control circuit, passing all Class 1 laser safety certifications. Fully SFP MSA standardized, it integrates SFF-

HW SFP-10G-ZDWT-39.76 Compatible LINK-PP C47 10G SFP+ DWDM Optical Transceiver Module (SMF, 1539.76nm, 80km, Duplex LC, DOM) The HW SFP-10G-ZDWT-39.76 Compatible LINK-PP 80km 10G DWDM SFP+ transceiver delivers dependable long-range single-mode fiber data transfer at 10Gbps bandwidth. Its optimized three-layer internal hardware consists of cooled EML laser, APD-TIA receiving unit and dedicated MCU control chips, fully certified for Class 1 laser safety. Standardized to SFP MSA rules and fitted with SFF-8472 digital diagnostics, it supports real-time performance tracking to speed up
