LS-MM3110-S2C is a 10GBASE-LRM SFP+ optical transceiver module featuring a Duplex LC/UPC interface, integrated digital optical monitoring (DOM), compliance with SFP+ MSA standards, and transmission distances of up to 220m over multi-mode fiber with stable optical output characteristics.
| LINK-PP Part Number | LS-MM3110-S2C | Vendor Name | LINK-PP |
| Form Factor | SFP+ | Max Data Rate | 10.7Gbps |
| Wavelength | 1310nm | Max Cable Distance | 220m |
| Connector | Duplex LC | Media | MMF |
| Transmitter Type | FP | Receiver Type | PIN |
| TX Power | -6 to -0.5dBm | RX Power | -15 to -1dBm |
| Receiver Sensitivity | -10dBm | DOM Support | Yes |
| Operating Temperature Range | -5 to 70°C | Protocols | SFP+ MSA Compliant, CPRI, eCPRI |
LINK-PP LS-MM3110-S2C is a 10G SFP+ optical transceiver designed for stable data transmission over short distances. It operates at 1310nm and supports multi-mode fiber with distances up to 220m. The module also includes a Duplex LC/UPC interface and DOM function for easy monitoring and management.
This module follows the standard SFP+ form factor and supports 10Gbps data rate. It is hot-pluggable, making installation and replacement simple. The compact design allows flexible use in different network devices.
It is designed for short-reach connections such as within buildings or data centers. The module ensures stable and efficient data transfer over limited distances. It is suitable for high-density network environments.
Operating at a 1310nm wavelength, this module is optimized for multi-mode fiber architectures. This wavelength ensures reliable, low-attenuation signal transmission, making it highly effective for short and medium-distance optical links.
Streamline your local network with support for up to 220m transmission over multi-mode fiber. Perfect for short-range deployments, it delivers rock-solid signal stability for intra-building setups and rack-to-rack connections.
The module uses a Duplex LC/UPC connector for stable fiber connections. This interface is widely used and easy to deploy. It helps ensure secure and consistent signal transmission. The duplex design supports separate transmit and receive channels for reliable data communication.
It includes Digital Optical Monitoring (DOM) for tracking key parameters. Users can monitor temperature, voltage, and optical power in real time. This helps improve network maintenance and troubleshooting.
LINK-PP LS-MM3110-S2C meets industry standards such as ISO 9001, CE, RoHS, and FCC, ensuring quality, safety, and compliance.
The module undergoes strict testing procedures to ensure stable performance and consistent operation.
The design and production process meet strict quality requirements for reliable operation in network environments.
The module is tested for compatibility with various network devices to ensure stable and seamless integration.
LINK-PP LS-MM3110-S2C is tested through multiple procedures to ensure consistent signal performance and stable operation. Learn more at LINK-PP Test Support Center.
Ensure accurate wavelength output and stable optical signals.
Assess signal integrity and waveform quality.
Evaluate transmission accuracy by measuring error rates.
Test module performance across varying temperature ranges.
LINK-PP LS-MM3110-S2C is handled with care to maintain product condition during delivery. The shipping process supports safe transport and timely arrival.
Prevent electrostatic damage during storage and handling.
Minimize physical impact during transit.
Handle orders efficiently with quick shipment.
Enable worldwide delivery through trusted logistics networks.
LINK-PP LS-MM3110-S2C is easy to install with its hot-pluggable SFP+ design, allowing quick connection to switches or servers, and is commonly used in short-reach links such as data centers, enterprise networks, and rack-to-rack connections.
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Professional guidance to help you select the optimal LS-MM3110-S2C module for your network design and application needs.

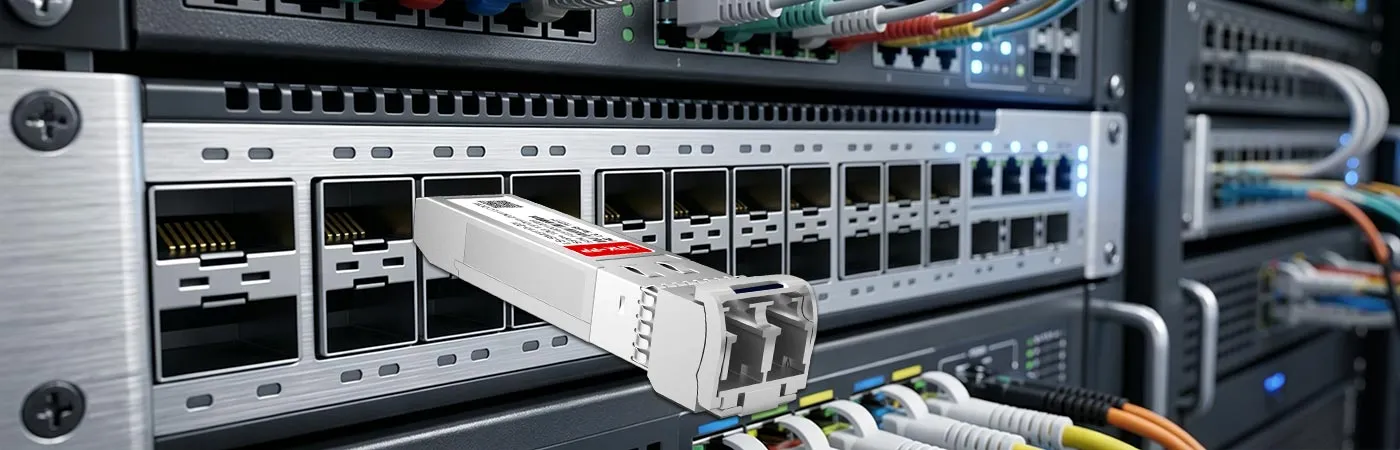

Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.
15-day no-reason return and refund
Free replacement for dead-on-arrival (DOA) or defective items within the initial period
Free repair services for manufacturing defects throughout the warranty period
Warranty exclusions and conditions apply
Common questions are addressed here, focusing on supported distance, troubleshooting link issues, and correct fiber handling for stable operation.
Compatible | LINK-PP | LINK-PP | LINK-PP | LINK-PP | LINK-PP | LINK-PP |
Data Rate (Max) | 10.7Gbps | 10.7Gbps | 10.7Gbps | 10.7Gbps | 10.7Gbps | 10.7Gbps |
Wavelength | 1310nm | 1310nm | 850nm | 1550nm | 1310nm | 1310nm |
Connector | Duplex LC | Duplex LC | Duplex LC | Duplex LC | Duplex LC | Duplex LC |
Cable Distance (Max) | 220m | 10km | 300m | 80km | 10km | 10km |
Cable Type | MMF | SMF | MMF | SMF | SMF | SMF |
TX Power | -6 to -0.5dBm | -6.5 to -0.5dBm | -6.0 to -0.5dBm | -1 to +4dBm | -6.5 to -0.5dBm | -6.5 to -0.5dBm |
Receiver Sensitivity | -10dBm | -20 to -1dBm | -16 to -1dBm | -23 to -6dBm | -20 to -1dBm | -20 to -1dBm |
Operating Temperature | -5 to 70°C | 0 to 70°C | -40 to +85°C | -40 to +85°C | -40 to 85°C | 0 to 70°C |
Form Factor | SFP+ | SFP+ | SFP+ | SFP+ | SFP+ | SFP+ |
Transmitter Type | FP | DFB | VCSEL | EML | DFB | DFB |
Receiver Type | PIN | PIN | PIN | APD | PIN | PIN |
Receiver Overload | 0.5dBm | |||||
DDM/DOM | Yes | Supported | ||||
Protocols | SFP+ MSA Compliant, CPRI, eCPRI | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432,SFP+ MSA Compliant, CPRI, eCPRI | IEEE Std 802.3by, SFF-8402, SFF-8432, SFF-8472, SFF-8431, SFF-8024 | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
DOM Support | Yes |
| Pictures | ID# | Description | Price | Stock | Add to Cart |
Q: Can I connect this module to an 850nm SR module on the other side if the duplex LC patch matches? By X***e on 2026-04-10
A: No, optical transceivers must match wavelengths on both ends; a 1310nm transmitter cannot communicate with an 850nm receiver. By admin on 2026-04-11
Q: Can I use this module to connect an enterprise core switch to a network interface card (NIC)? By V***e on 2026-03-27
A: Yes, as long as both sides have standard 10G SFP+ slots, the link will initialize seamlessly. By admin on 2026-03-28
Q: How accurately does the internal DOM sensor track sudden temperature spikes in high-density server enclosures? By B***k on 2026-02-23
A: The internal temperature sensor updates continuously with an accuracy tolerance within ±3°C, feeding real-time data to your monitoring console. By admin on 2026-02-24
Q: Will this 1310nm multi-mode module work if patched into a single-mode fiber infrastructure? By A***s on 2025-12-05
A: No, this is an MMF specialized module; running it over single-mode fiber cabling will cause severe signal attenuation. By admin on 2025-12-06
Q: Will high ambient rack temperatures around 60°C cause this module to drop packets? By W***d on 2025-09-19
A: No, the LS-MM3110-S2C maintains stable 10Gbps transmission up to its maximum rated 70°C threshold. By admin on 2025-09-20
