LS-MM858G-S3I is an 8G Fibre Channel transceiver module operating at an 850nm wavelength and supporting data rates up to 8.5Gbps. Featuring a VCSEL transmitter and PIN photodiode receiver, it enables link lengths up to 300m over OM3 multimode fiber alongside real-time digital optical monitoring (DOM) for diagnostic tracking.
LINK-PP Part Number
LS-MM858G-S3I
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
8.5Gbps
Wavelength
850nm
Max Cable Distance
300m
Connector
Duplex LC
Media
MMF
Transmitter Type
VCSEL
Receiver Type
PIN
TX Power
-6.0 to -0.5dBm
RX Power
-16 to -1dBm
Receiver Sensitivity
-10.5dBm
DDM/DOM
Supported
Operating Temperature Range
-40 to 85°C
Protocols
MSA Compliant
Key Features of LINK-PP LS-MM858G-S3I 8G SFP+
LINK-PP LS-MM858G-S3I is an industrial-grade 8G Fibre Channel transceiver engineered for robust data links in demanding network environments. Equipped with a duplex LC interface and 300m transmission capability, it enables stable storage network interconnections across wide industrial operating temperatures.

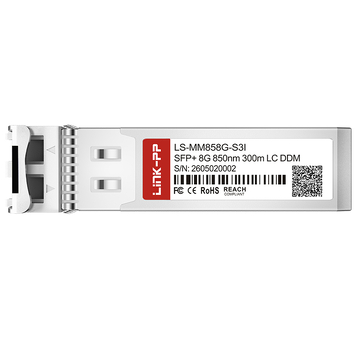

LINK-PP LS-MM858G-S3I 8G SFP+ Optical Module
The hot-pluggable SFP+ footprint allows network technicians to install or replace modules without interrupting host system power. Full compliance with the SFP+ MSA guarantees straightforward mechanical fit and broad hardware interoperability across multi-vendor platforms.
LS-MM858G-S3I: 8 Gbps Connectivity for Industrial Storage Networks
Operating at line rates up to 8.5Gbps, this SFP+ module ensures smooth, low-latency traffic flow across demanding storage area networks. Such transmission speeds reliably support mission-critical SAN arrays, local industrial storage enclosures, and automated enterprise backup servers.
LS-MM858G-S3I Module with 850nm Wavelength
An internal 850nm VCSEL transmitter provides the precise optical emission profile required for short-range signaling. This designated spectral band works hand-in-hand with multi-mode fiber cores to achieve optimal signal integrity while keeping power consumption low.
LS-MM858G-S3I Module Supporting 300m Transmission
Link distances of up to 300m over OM3 multi-mode fiber accommodate extended cabling pathways across equipment rooms. Such physical reach easily connects distributed server clusters and storage cabinets across large factory floors or multi-floor enterprise buildings.
LS-MM858G-S3I Module with Duplex LC Interface
The industry-standard duplex LC optical receptacle ensures secure, low-loss latching with standard fiber patch cords. The compact dual-fiber connector geometry helps administrators maximize port density on crowded switch faceplates.
LS-MM858G-S3I Module with DOM for Real-Time Monitoring
Built-in digital optical monitoring (DOM) functions conform strictly to the SFF-8472 diagnostic standard for real-time telemetry. Network operators can continually track critical internal operating conditions like optical power, supply voltage, laser bias current, and temperature.
LINK-PP LS-MM858G-S3I 8G SFP+ Certification
LINK-PP LS-MM858G-S3I 8G SFP+ optical module complies with strict international industry benchmarks, holding key ISO 9001, CE, RoHS, and FCC certifications to ensure environmental safety and operational excellence.
Every SFP+ 8G transceiver module passes comprehensive testing to confirm consistent signal integrity, electrical parameter stability, and reliable data delivery in harsh thermal environments.
LS-MM858G-S3I Quality Certifications
These recognized quality approvals confirm that the transceiver meets rigid manufacturing standards and delivers dependable reliability for enterprise storage deployments.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
LS-MM858G-S3I Certified for Reliable Host-Device Compatibility
Comprehensive host-device validation ensures seamless plug-and-play operation across mainstream switches, storage arrays, and network host bus adapters.
Each 8G SFP+ module undergoes comprehensive factory inspections to verify exceptional optical consistency and continuous operational stability. Learn more about our detailed validation procedures at the LINK-PP Test Support Center.
Optical Spectrum Test
Measure central wavelengths to guarantee precise optical spectral output.
Eye Pattern Test
Evaluate optical signal quality to eliminate severe waveform distortion.
Bit Error Rate Test
Check data transmission integrity to confirm reliable packet delivery.
Temperature Test
Assess wide thermal limits to maintain reliable optical link performance.
Product Shipping for LINK-PP LS-MM858G-S3I 8G SFP+
Every 8G SFP+ transceiver module is securely packaged to ensure complete physical integrity during international transit. Our streamlined logistics workflow enables swift dispatch and dependable delivery to worldwide enterprise destinations.
Anti-Static Protective Packaging
Prevent electrostatic discharge to protect sensitive internal electronic components.
Shock-Resistant Transport Protection
Reduce rough shipping shocks to keep delicate components safely intact.
Fast Order Processing and Dispatch
Accelerate order handling workflows to enable prompt warehouse dispatch schedules.
Global Logistics and International Delivery
Partner with global express couriers to guarantee dependable worldwide arrival.
LINK-PP LS-MM858G-S3I 8G SFP+ Usage Demonstration
Deploying the LS-MM858G-S3I transceiver module requires only sliding it into a host SFP+ port and snapping in optical cables. The module provides stable 8G Fibre Channel links across industrial storage networks, seamlessly linking central control units to remote factory storage devices.
LS-MM858G-S3I Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal LS-MM858G-S3I module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
A:
Yes, the bail-latch mechanism is built to standard MSA industrial specifications, providing a secure lock in standard SFP+ cages that prevents accidental dislodging from mechanical vibration. By
admin
A:
Absolutely. This module is rated for an industrial operating case temperature of -40°C to +85°C, making it ideal for unheated enclosures and harsh environments. By
admin
A:
Yes, it is fully backwards compatible with 4G and 2G Fibre Channel links and will step down speed automatically based on the remote host interface. By
admin
Good choice for a short-reach storage network. We did not need expensive long-distance optics, just dependable 850nm multimode modules for links across the building. They were recognized normally and saved us time. :-D
Please write comments with more than three
character.
497335
521121
F***r
Cambodia
Verified
Purchase
5 .0
2026-09-01
Bought these for a data-center bulk deployment where we wanted consistent 8G FC optics across multiple racks. The modules performed well with our Duplex LC MMF plant, and DOM made acceptance testing faster. We would order again for future storage expansion.
Please write comments with more than three
character.
497335
521131
L***s
New Zealand
Verified
Purchase
5 .0
2026-08-11
Our virtualization cluster relies on stable SAN connectivity, so we tested the modules before rolling them out. TX and RX readings were within a healthy range on our 200m OM3 runs, and performance remained steady under backup traffic.
Please write comments with more than three
character.
497335
521115
Z***k
United Arab Emirates
Verified
Purchase
5 .0
2026-06-17
We use these in a controlled factory network cabinet, connecting storage-related equipment over multimode fiber. The -40 to 85°C operating range gave our operations team more confidence than regular commercial optics. The optical monitoring data also looks consistent.
Please write comments with more than three
character.
497335
521127
M***a
Australia
Verified
Purchase
5 .0
2026-05-23
We used these 8G FC SFP+ modules to refresh several older SAN links in a small data room. Every unit came online quickly, and the switch showed normal optical diagnostics. Good result for a straightforward MMF upgrade.
Please write comments with more than three
character.
497335
521117
A***r
Thailand
Verified
Purchase
4 .0
2026-05-04
Reliable -40 to 85°C industrial performance on our storage network, but international courier delivery was delayed by two days. Otherwise, no complaints about the module.
Please write comments with more than three
character.
497335
521133
T***d
Bangladesh
Verified
Purchase
5 .0
2026-04-29
This industrial 8G Fibre Channel transceiver solved a recurring issue with standard-temperature modules in one of our hotter rack zones. We can now monitor temperature, voltage, and optical levels through DOM, which makes preventive checks much easier.
Please write comments with more than three
character.
497335
521113
C***z
Argentina
Verified
Purchase
5 .0
2026-02-25
We used these 850nm 300m SFP+ transceivers to connect a backup SAN array. The VCSEL transmitter and PIN receiver combo maintain a steady signal over existing OM3 multimode fiber lines.
Please write comments with more than three
character.
497335
521129
B***e
Hong Kong
Verified
Purchase
5 .0
2026-01-14
Our IT team needed industrial-temperature SFP+ modules for a warm indoor telecom cabinet near production equipment. These have been reliable so far, even when cabinet temperatures rise. Easy replacement for the previous 8G FC optics. ;-)
Please write comments with more than three
character.
497335
521119
R***e
Ireland
Verified
Purchase
5 .0
2025-12-05
Purchased for a campus server-room fiber expansion. The 8.5Gbps Fibre Channel performance is stable, and the DOM values help us check receive power without taking links offline. Nice for routine infrastructure work.
Please write comments with more than three
character.
497335
521114
C***n
Canada
Verified
Purchase
5 .0
2025-10-19
Deployed several LS-MM858G-S3I 8G SFP+ modules during a SAN maintenance window. Installation was quick, links recovered normally after patching, and there were no unusual CRC or link-reset events afterward. A practical industrial Fibre Channel SFP+ module.
Please write comments with more than three
character.
497335
521112
A***y
Ireland
Verified
Purchase
5 .0
2025-07-07
We ordered these transceiver modules for a batch replacement project covering Fibre Channel storage links in two data rooms. All modules seated properly in the SFP+ cages and negotiated cleanly with our compatible equipment. No intermittent alarms after deployment.
Please write comments with more than three
character.
497335
521124
B***n
Denmark
Verified
Purchase
5 .0
2025-06-30
Replaced an older failing optic with this LS-MM858G-S3I SFP+ transceiver in our SAN fabric. Negotiation at 8Gbps was immediate and optical power levels sit cleanly within spec. :)
Please write comments with more than three
character.
497335
521118
D***y
Thailand
Verified
Purchase
5 .0
2025-05-12
We needed a 300m multimode Fibre Channel solution between an office server room and a nearby equipment space. These modules handled the route well. Optical power readings remained comfortably above the receiver sensitivity threshold during our checks.
Please write comments with more than three
character.
497335
521130
A***s
India
Verified
Purchase
5 .0
2025-04-18
Used in an indoor baseband equipment room where fiber jumpers run between cabinets. The VCSEL transmitter and PIN receiver combination has delivered steady traffic, and the LC ports fit our existing patch panels without any changes.
Please write comments with more than three
character.
497335
521122
P***s
Mexico
Verified
Purchase
5 .0
2025-03-16
Good replacement optical transceivers for aging Fibre Channel infrastructure. We tested temperature reporting, transmit power, and receive power after installation, then left the links under regular workload for several weeks. Everything has remained stable, with no unexpected port drops.
Please write comments with more than three
character.
497335
521116
E***n
Norway
Verified
Purchase
5 .0
2025-01-22
Reliable 850nm SFP+ optics for indoor FC switching. The 300m reach gives us enough flexibility for separate server and storage rooms, while the small modules keep cable management simple. =)
