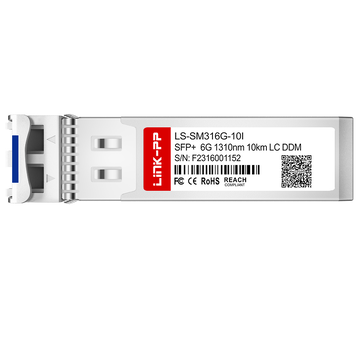

LS-SM316G-10I is an industrial-grade 6G SFP+ SMF transceiver module engineered with a 1310nm DFB laser and a PIN photodiode to deliver reliable optical links up to 10km over single-mode fiber. It features integrated real-time digital diagnostic monitoring (DDM) and supports an operating case temperature range of -40°C to +85°C for demanding deployment environments.
LINK-PP Part Number
LS-SM316G-10I
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
6.25Gbps
Wavelength
1310nm
Max Cable Distance
10km
Connector
Duplex LC
Media
SMF
Transmitter Type
DFB
Receiver Type
PIN
TX Power
-6.5 to -0.5dBm
RX Power
-20 to -1dBm
Receiver Sensitivity
-15dBm
DDM/DOM
Supported
Operating Temperature Range
-40 to 85°C
Protocols
SFP+ MSA Compliant
Key Features of LINK-PP LS-SM316G-10I 6G SFP+
LINK-PP LS-SM316G-10I SFP+ module is built to provide stable optical connections across long distances, even in extreme environments. The module delivers reliable data transfer, standard plug-and-play compatibility, and continuous health tracking for your network.

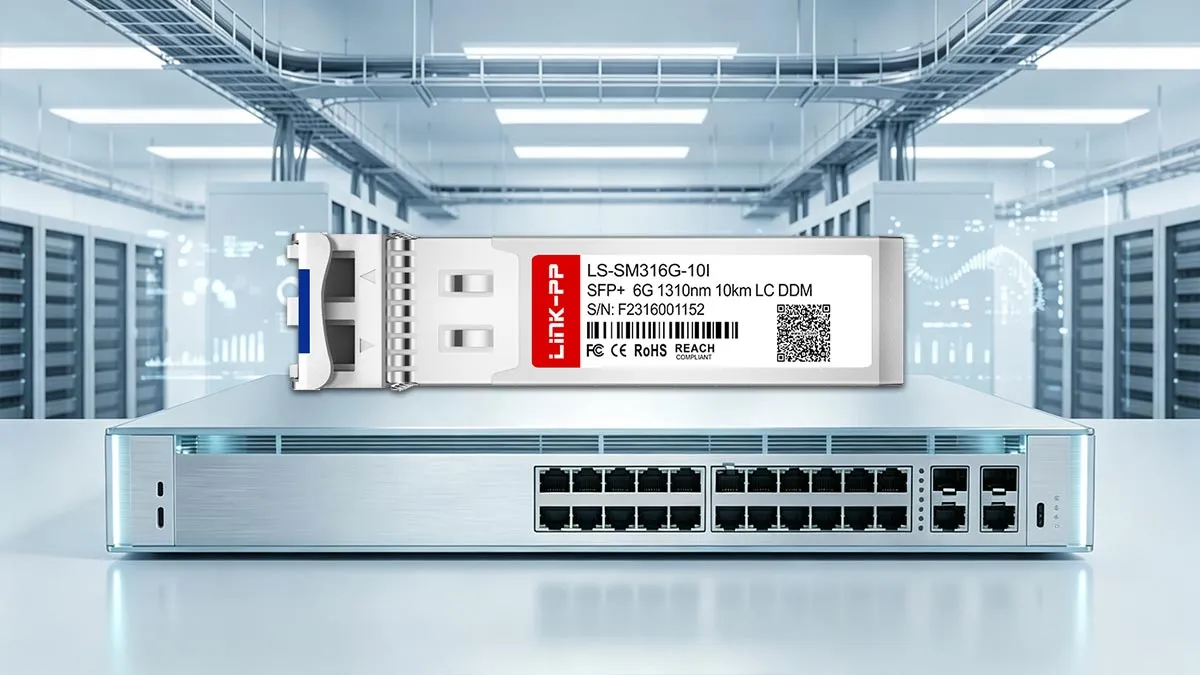

LINK-PP LS-SM316G-10I 6G SFP+ Optical Module
This optical module uses a hot-pluggable SFP+ design, allowing you to install or replace it without turning off your switch. Because it follows standard SFP+ MSA guidelines, it fits seamlessly into a wide range of networking devices.

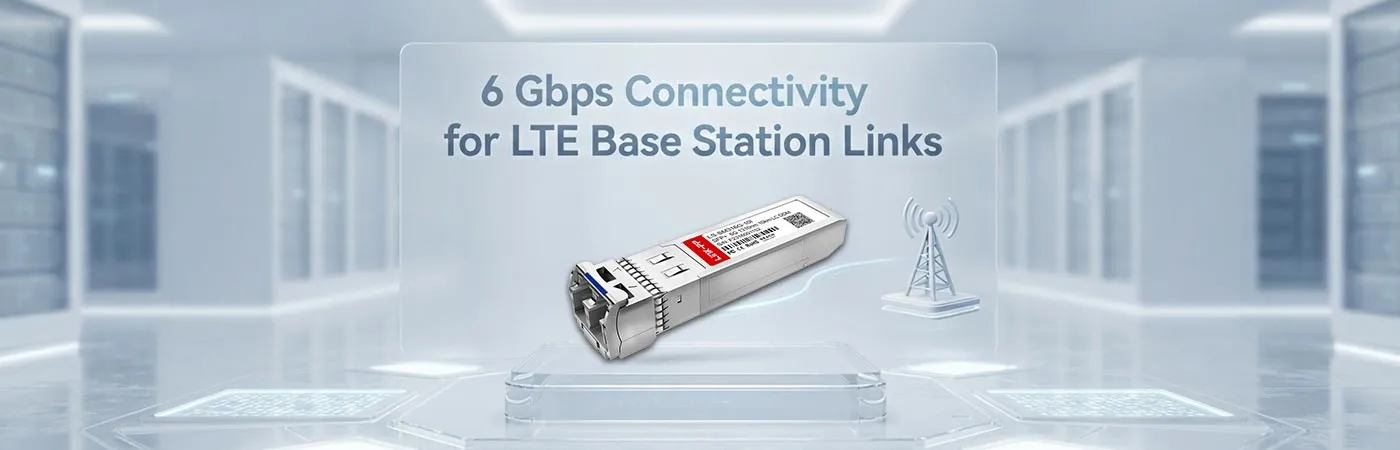

LS-SM316G-10I: 6 Gbps Connectivity for LTE Base Station Links
A high-speed 6Gbps data rate easily meets the bandwidth demands of LTE base stations and wireless mobile networks. It guarantees low delay and smooth data flow between baseband units and remote radio heads.
LS-SM316G-10I Module with 1310nm Wavelength
The 1310nm operating wavelength is ideal for standard single-mode optical fiber links. At this specific frequency, optical signals experience very little light distortion, keeping your data clean and reliable.
LS-SM316G-10I Module Supporting 10km Transmission
Transmission reaches up to 10km over standard single-mode fiber. This long operating distance lets you link distant telecommunication towers without using extra signal boosters.

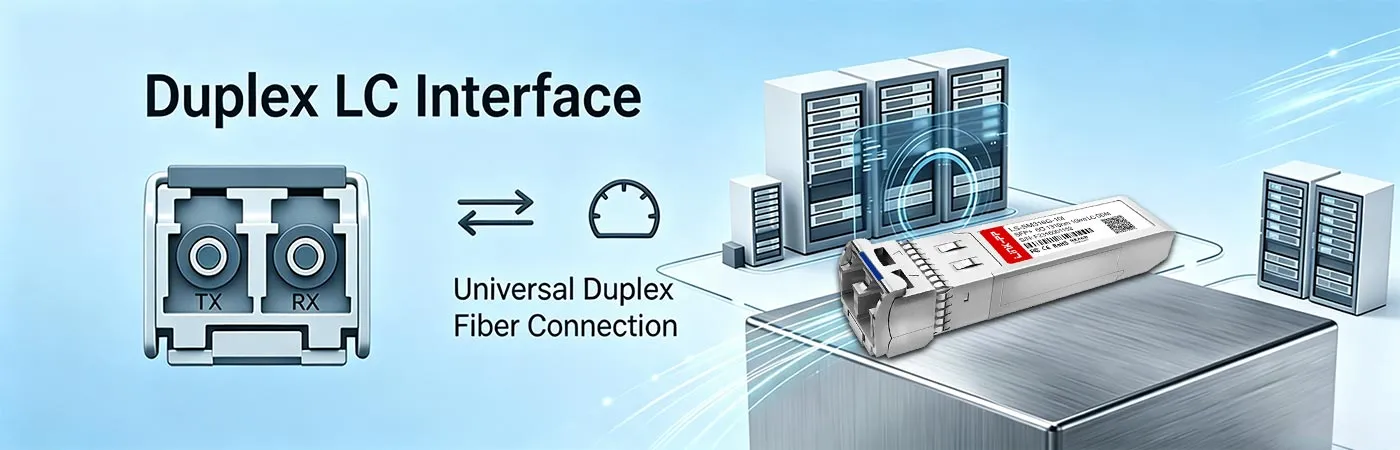

LS-SM316G-10I Module with Duplex LC Interface
Dual LC optical ports offer a secure, snap-in connection for regular fiber patch cables. The separated transmit and receive lines help prevent signal interference and make cable setup simple.

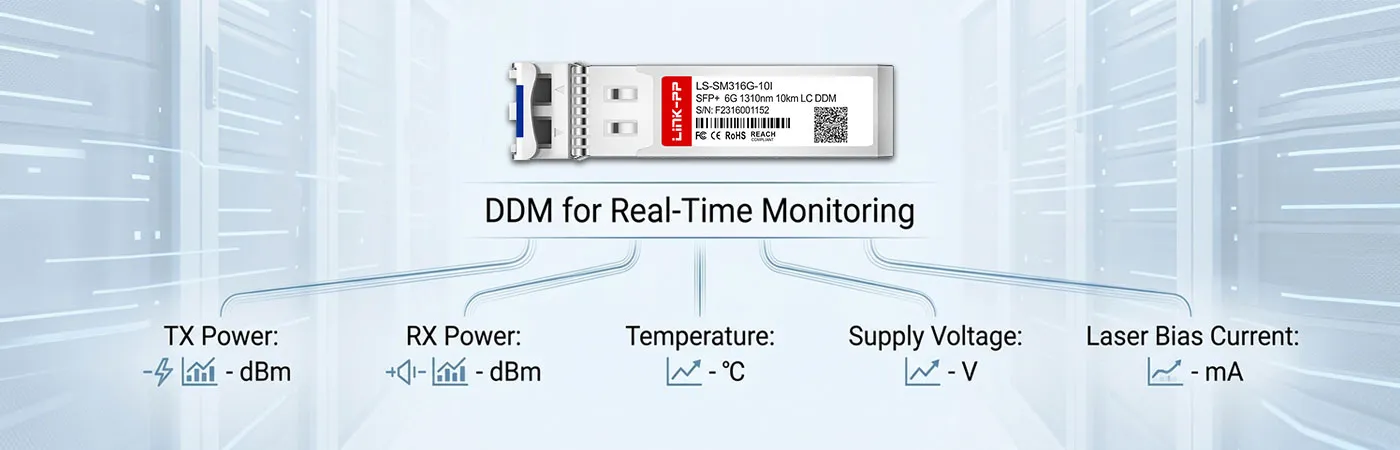

LS-SM316G-10I Module with DDM for Real-Time Monitoring
Digital diagnostic monitoring (DDM) lets engineers track operating temperature, supply voltage, laser bias current, and optical power in real time. Built to meet the SFF-8472 standard, it warns you immediately if a link issue occurs so you can fix it quickly.
LINK-PP LS-SM316G-10I 6G SFP+ Certification
LINK-PP LS-SM316G-10I 6G SFP+ module is fully certified under international standards such as ISO 9001, CE, RoHS, and FCC to ensure safety and quality. These credentials prove that the optical module meets strict environmental, electrical, and manufacturing regulations worldwide.
Every SFP+ optical module goes through rigorous optical and thermal stress tests before leaving the production line. This thorough process helps eliminate defects and guarantees long-term reliability in the field.
LS-SM316G-10I Quality Certifications
These official credentials confirm that the transceiver module adheres to recognized industry production and safety benchmarks. Customers can trust that each module delivers consistent performance and meets all global deployment requirements.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
LS-SM316G-10I Certified for Reliable Host-Device Compatibility
Comprehensive compatibility verification ensures seamless operation with switches, routers, and base-station hardware from major networking brands. You can easily plug the transceiver into your existing equipment without encountering software errors or link failures.
Every 6G SFP+ optical transceiver undergoes comprehensive validation to ensure dependable data transmission across demanding field environments. Learn more about our testing details by visiting the LINK-PP Test Support Center.
Optical Spectrum Test
Measure central wavelength accuracy to maintain stable optical transmission.
Eye Pattern Test
Evaluate optical signal quality to reduce unwanted jitter levels.
Bit Error Rate Test
Check data transmission integrity to eliminate packet transmission loss.
Temperature Test
Examine thermal cycle stability to ensure harsh environmental endurance.
Product Shipping for LINK-PP LS-SM316G-10I 6G SFP+
LINK-PP LS-SM316G-10I 6G SFP+ optical modules are carefully packaged to guarantee safe delivery and immediate deployment upon arrival. Our streamlined fulfillment process ensures fast, secure handling for orders across the globe.
Anti-Static Protective Packaging
Prevent electrostatic discharge damage to safeguard delicate optical components.
Shock-Resistant Transport Protection
Absorb transit physical impacts to ensure complete hardware safety.
Fast Order Processing and Dispatch
Accelerate daily warehouse handling to speed up order shipments.
Global Logistics and International Delivery
Partner with reliable freight carriers to enable timely worldwide distribution.

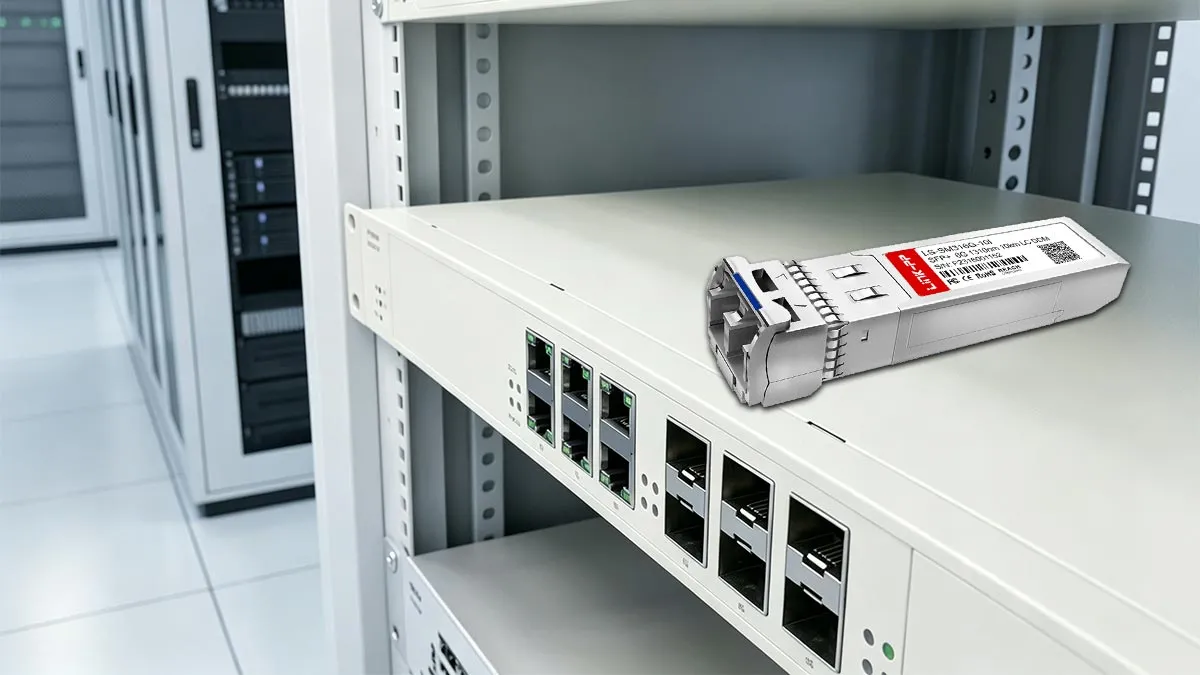

LINK-PP LS-SM316G-10I 6G SFP+ Usage Demonstration
Connect the LS-SM316G-10I optical module by sliding it directly into the SFP+ cage until the latch clicks, then plug in your duplex LC fiber patch cable. It quickly establishes stable, low-latency 6Gbps optical links between baseband units and remote radio heads in LTE base stations.
LS-SM316G-10I Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal LS-SM316G-10I module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
A:
Yes, it supports bit rates up to 6.25Gbps, which covers standard CPRI Option 6 (6.144Gbps) connecting baseband units (BBU) to remote radio heads (RRH). By
admin
A:
With a minimum TX power of -6.5dBm and a receiver sensitivity down to -15dBm, the available optical link budget is approximately 8.5dB under standard conditions. By
admin
A:
Tight macrobends on single-mode patch cords increase optical attenuation; while 1310nm light is slightly more bend-tolerant than 1550nm, excessive bending can still exceed the receiver sensitivity threshold. By
admin
A:
Yes, the module is built with an industrial operating case temperature rating of -40 to +85°C, so it handles freezing winter cold and extreme summer heat without dropping the link. By
admin
Please write comments with more than three
character.
497246
520841
D***z
Norway
Verified
Purchase
5 .0
2026-06-03
We use this optical module in an industrial Ethernet switch for a long plant-floor uplink. It supports the data rate we need, and the SFP+ MSA format made it straightforward to integrate with our existing hardware.
Please write comments with more than three
character.
497246
520835
S***k
Ireland
Verified
Purchase
5 .0
2026-05-14
Bought a batch for a municipal traffic fiber loop. The 1310nm wavelength performance over our single-mode fiber runs has been rock-solid, and hot-swapping into live SFP+ ports works smoothly without restarting the equipment.
Please write comments with more than three
character.
497246
520849
K***s
Canada
Verified
Purchase
4 .0
2026-04-25
The module works well in our industrial switch, but the courier box arrived with light corner wear. The inner antistatic packaging was secure, and the optic passed our field test.
Please write comments with more than three
character.
497246
520851
J***l
Italy
Verified
Purchase
5 .0
2026-04-21
Installed this industrial-grade 6G SFP+ in a roadside control cabinet. The link came up quickly over our existing single-mode fiber and has stayed stable.
Please write comments with more than three
character.
497246
520837
A***r
Iran, Islamic Republic of
Verified
Purchase
5 .0
2026-03-13
We used these LS-SM316G-10I SFP+ modules to connect baseband units to antenna radios at a cellular tower site. The run is about 5km over outdoor single-mode fiber. The DFB laser gave us a strong signal, and the receiver sensitivity gave plenty of link room. Temperature stayed solid even in direct midday sun.
Please write comments with more than three
character.
497246
520833
K***g
Norway
Verified
Purchase
5 .0
2026-01-23
This LS-SM316G-10I SFP+ module fit a remote pumping-station network where the switch enclosure can run hot in summer and cold in winter. The 10km SMF reach covered our route, and the PIN receiver readings stayed within the expected range.
Please write comments with more than three
character.
497246
520847
D***s
Macao
Verified
Purchase
5 .0
2025-12-22
We installed several units for a distributed industrial control project. The 6.25Gbps capability was enough for our switch uplinks, while the -40 to 85°C operating range gave our procurement team more flexibility for cabinet locations.
Please write comments with more than three
character.
497246
520832
G***r
France
Verified
Purchase
5 .0
2025-11-07
We replaced older fiber modules in a manufacturing site with these 1310nm SFP+ transceivers. The DFB transmitter gave us stable link readings, while DOM helped our technicians compare Rx power after each replacement. ;-)
Please write comments with more than three
character.
497246
520836
E***s
France
Verified
Purchase
5 .0
2025-08-10
Our maintenance crew appreciated the DOM support during commissioning. We logged the Tx and Rx optical power at each cabinet, which gave us a useful baseline for checking the 1310nm fiber paths later.
Please write comments with more than three
character.
497246
520834
J***k
India
Verified
Purchase
5 .0
2025-06-08
Good industrial-grade SFP+ transceiver for a base station support link. It was installed in a cabinet that sees big seasonal changes, and the module has performed consistently.
Please write comments with more than three
character.
497246
520840
M***z
New Zealand
Verified
Purchase
5 .0
2025-04-16
Deployed one pair on a rail-side monitoring network with equipment located in protected field enclosures. The industrial operating range was useful for our environment, and the 6G link remained stable during the initial test period. :-D
Please write comments with more than three
character.
497246
520852
A***a
Australia
Verified
Purchase
5 .0
2025-02-11
We used this 1310nm optical transceiver for a factory network extension. The Duplex LC connection matched our patch panel, and DOM readings were easy to review. =D
Please write comments with more than three
character.
497246
520838
D***r
Morocco
Verified
Purchase
5 .0
2025-01-04
We selected this industrial-grade 6G 1310nm SFP+ module for a batch deployment in network cabinets across a utility site. It provided stable fiber connectivity, and the DOM optical values helped us identify one dirty patch cord during installation. :-)
