Can the MMA2L20-AR-I SFP28 module work on multi-mode fiber cables?

No. This 25G SFP28 module utilizes a 1310nm laser optimized specifically for Single-Mode Fiber (SMF). Using it with multi-mode fiber will cause severe signal attenuation and link failure.

What is the maximum power consumption of this transceiver?

The module is designed for high energy efficiency, limiting its maximum power consumption to 1.2W, which helps reduce thermal buildup in high-density switches.

Does the MMA2L20-AR-I support loopback testing functions?

Yes, it supports both optical and electrical loopback functions. This allows engineers to easily perform remote diagnostic testing and isolate link issues without physical hardware intervention.

Does this module include features to mitigate electromagnetic interference (EMI)?

Yes. The transceiver is built with a fully metallic enclosure that provides excellent shielding, significantly minimizing EMI in dense industrial network racks.

Does this module use a DFB or an EML laser type for its 1310nm transmitter setup?

It utilizes a high-reliability Distributed Feedback (DFB) laser, which provides the ideal balance of cost and performance for 10km links.

Can this module achieve the full 10km distance if there are multiple patch panels along the fiber link?

Yes, as long as the total link attenuation across your single-mode fiber path does not exceed the specified optical power budget.

Is this module genuinely rated for unconditioned outdoor cabinets down to -30°C?

Yes, the LS-SM3125-10I is an industrial-grade 25G SFP28 optical transceiver fully certified to operate reliably from -40°C up to +85°C (-40°F to 185°F).

Can the loopback feature help me isolate whether a 25G link issue is caused by the switch or the 10km fiber line?

Yes, exactly. By turning on electrical loopback, you isolate the host switch; by turning on optical loopback, you test the incoming fiber path.

How accurate are the real-time Digital Diagnostic Monitoring Interface reporting steps for Tx_Bias current and Rx_Power?

The DDM telemetry complies with SFF-8472, providing an accuracy of ±3dB for optical power readings and ±10% for internal laser bias current reporting.

Breadcrumb: Home; Products; Optics Transceivers | SFP Modules; 10/25/40G/100G Transceiver Modules; 25G SFP28; 214117

Click to open expanded view

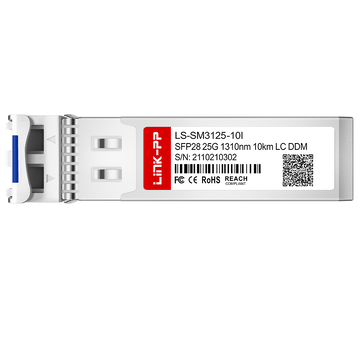

Mellanox MMA2L20-AR-I Compatible LINK-PP 25G SFP28 1310nm 10km Duplex LC/UPC DOM SMF Optical Transceiver Module (Industrial)

Name: Mellanox MMA2L20-AR-I Compatible LINK-PP 25G SFP28 1310nm 10km Duplex LC/UPC DOM SMF Optical Transceiver Module (Industrial)
Brand: LINK-PP
SKU: 214117
Price: 36.98 USD
Availability: InStock
Rating: 5 (30 reviews)

# 214117

Product: Mellanox MMA2L20-AR-I Compatible LINK-PP 25G SFP28 1310nm 10km Duplex LC/UPC DOM SMF Optical Transceiver Module (Industrial)
SKU: 214117
P/N: LS-SM3125-10I
Price: $ 43
Stock: 168 in Stock
Sold: 1.6K
Product URL: https://www.l-p.com/products/494139.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

30 Reviews

5 Questions

Request Stock

1.6K Sold

$ 43

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 43

100

$ 40.85

1000

$ 39.56

3000

$ 38.27

6000

$ 36.98

Manufacture: LINK-PP

P/N: LS-SM3125-10I

Compatible:: Cisco; LINK-PP; Arista; Brocade; FS; Generic; HW; Juniper; Mellanox

Compatible P/N:: MMA2L20-AR | 10km; MMA2L20-AR-I | 10km; SFP-25GMLR-31 | 10km; SFP-25GELR-31-I | 20km; SFP-25GERL-31 | 30km; SFP-25GERL-31-I | 30km; SFP-25GER-31 | 40km; SFP-25GER-31-I | 40km

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

Specifications

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

Mellanox MMA2L20-AR-I Compatible LINK-PP 25G SFP28 Specifications

MMA2L20-AR-I is an industrial-grade 25G SFP28 duplex LC/UPC single-mode optical transceiver engineered for robust 10km data links at a 1310nm nominal wavelength, capping its power consumption at an efficient 1.2W while featuring integrated Digital Optical Monitoring (DOM).

Mellanox Part Number	MMA2L20-AR-I	Vendor Name	LINK-PP
Form Factor	SFP28	Max Data Rate	25.78Gbps
Wavelength	1310nm	Max Cable Distance	10km
Connector	Duplex LC	Media	SMF
Transmitter Type	DFB	Receiver Type	PIN
Receiver Sensitivity	-13dBm	Receiver Overload	2dBm
TX Power	-8 to +3dBm	RX Power	-14 to +3dBm
DOM	Supported	Protocols	SFF-8472, SFF-8402, SFF-8432, SFF-8431, CEI-28G-VSR
Operating Temperature Range	-40 to 85°C	Warranty	5 Years

Videos

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LS-SM3125-10I.pdf

Questions & Answers
Ask a Question

No data

Q: Does this module use a DFB or an EML laser type for its 1310nm transmitter setup? By P***r on 2026-03-05

A: It utilizes a high-reliability Distributed Feedback (DFB) laser, which provides the ideal balance of cost and performance for 10km links. By admin on 2026-03-06
Q: Can this module achieve the full 10km distance if there are multiple patch panels along the fiber link? By K***y on 2025-12-03

A: Yes, as long as the total link attenuation across your single-mode fiber path does not exceed the specified optical power budget. By admin on 2025-12-04
Q: Is this module genuinely rated for unconditioned outdoor cabinets down to -30°C? By O***s on 2025-08-20

A: Yes, the LS-SM3125-10I is an industrial-grade 25G SFP28 optical transceiver fully certified to operate reliably from -40°C up to +85°C (-40°F to 185°F). By admin on 2025-08-21
Q: Can the loopback feature help me isolate whether a 25G link issue is caused by the switch or the 10km fiber line? By X***n on 2025-05-30

A: Yes, exactly. By turning on electrical loopback, you isolate the host switch; by turning on optical loopback, you test the incoming fiber path. By admin on 2025-05-31
Q: How accurate are the real-time Digital Diagnostic Monitoring Interface reporting steps for Tx_Bias current and Rx_Power? By Z***y on 2025-01-13

A: The DDM telemetry complies with SFF-8472, providing an accuracy of ±3dB for optical power readings and ±10% for internal laser bias current reporting. By admin on 2025-01-14
