We are building an 802.3by 25G Ethernet campus backbone. Is the LS-MM8525-S1I module fully compliant with standard 25GBASE-SR?

Yes. The module fully complies with IEEE 802.3by 25GBASE-SR, SFF-8431, and SFF-8432 specifications, making it fully interoperable with any standard 25GBASE-SR optical port.

Is the metal housing rugged enough to withstand continuous mechanical vibration near industrial railway machinery?

Yes, the die-cast zinc housing and sturdy bail-latch mechanism provide heavy-duty vibration resistance and superior EMI shielding.

We have existing OM3 fiber patch cables in our building. What distance can the LS-MM8525-S1I module reach compared to OM4 fiber?

The LS-MM8525-S1I 25G SFP28 module reaches up to 70m over OM3 multimode fiber and up to 100m over high-bandwidth OM4 multimode fiber.

Breadcrumb: Home; Products; Optics Transceivers | SFP Modules; 10/25/40G/100G Transceiver Modules; 25G SFP28; 218371

Click to open expanded view

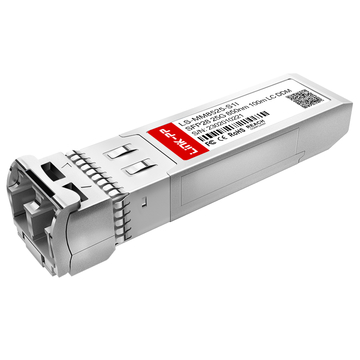

Mellanox MMA2P00-AS-I Compatible LINK-PP 25G SFP28 850nm 100m Duplex LC/UPC DOM MMF Optical Transceiver Module (Industrial)

Name: Mellanox MMA2P00-AS-I Compatible LINK-PP 25G SFP28 850nm 100m Duplex LC/UPC DOM MMF Optical Transceiver Module (Industrial)
Brand: LINK-PP
SKU: 218371
Price: 36.12 USD
Availability: InStock
Rating: 5 (30 reviews)

# 218371

Product: Mellanox MMA2P00-AS-I Compatible LINK-PP 25G SFP28 850nm 100m Duplex LC/UPC DOM MMF Optical Transceiver Module (Industrial)
SKU: 218371
P/N: LS-MM8525-S1I
Price: $ 42
Stock: 945 in Stock
Sold: 1.5K
Product URL: https://www.l-p.com/products/477570.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

30 Reviews

3 Questions

Request Stock

1.5K Sold

$ 42

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 42

100

$ 39.9

1000

$ 38.64

3000

$ 37.38

6000

$ 36.12

Manufacture: LINK-PP

P/N: LS-MM8525-S1I

Compatible:: Cisco; LINK-PP; Arista; Brocade; Dell; H3C; HW; Intel; Juniper; Mellanox

Compatible P/N:: MMA2P00-AS | 100m; MMA2P00-AS-I | 100m; MMA2P00-AS | 300m

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

Specifications

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

Mellanox MMA2P00-AS-I Compatible LINK-PP 25G SFP28 Specifications

Mellanox MMA2P00-AS-I Compatible LINK-PP module is an industrial-grade 25GBSE-SR SFP28 optical transceiver operating at 850nm with duplex LC/UPC connectors, integrated DOM for real-time monitoring, and specified reaches of 70m over OM3 MMF or 100m over OM4 MMF across an industrial temperature range of -40°C to +85°C.

Mellanox Part Number	MMA2P00-AS-I	Vendor Name	LINK-PP
Form Factor	SFP28	Max Data Rate	25.7813Gbps
Wavelength	850nm	Max Cable Distance	70m over OM3 MMF 100m over OM4 MMF
Connector	Duplex LC	Media	MMF
Transmitter Type	VCSEL	Receiver Type	PIN
Receiver Sensitivity	＜-10.3dBm	DDM/DOM	Supported
Operating Temperature Range	-40 to 85°C	Protocols	IEEE 802.3by, SFF-8472, SFF-8432, SFP28 MSA, CPRI, eCPRI

Videos

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LS-MM8525-S1I.pdf

Questions & Answers
Ask a Question

No data

Q: We are building an 802.3by 25G Ethernet campus backbone. Is the LS-MM8525-S1I module fully compliant with standard 25GBASE-SR? By X***t on 2026-01-24

A: Yes. The module fully complies with IEEE 802.3by 25GBASE-SR, SFF-8431, and SFF-8432 specifications, making it fully interoperable with any standard 25GBASE-SR optical port. By admin on 2026-01-25
Q: Is the metal housing rugged enough to withstand continuous mechanical vibration near industrial railway machinery? By F***n on 2025-10-22

A: Yes, the die-cast zinc housing and sturdy bail-latch mechanism provide heavy-duty vibration resistance and superior EMI shielding. By admin on 2025-10-23
Q: We have existing OM3 fiber patch cables in our building. What distance can the LS-MM8525-S1I module reach compared to OM4 fiber? By I***e on 2025-05-07

A: The LS-MM8525-S1I 25G SFP28 module reaches up to 70m over OM3 multimode fiber and up to 100m over high-bandwidth OM4 multimode fiber. By admin on 2025-05-08

Customer Reviews
Write a Review

{{stardata.star}}

{{comment.count}} reviews
5 Stars

{{comment.star5}}%

4 Stars

{{comment.star4}}%

3 Stars

{{comment.star3}}%

2 Stars

{{comment.star2}}%

1 Star

{{comment.star1}}%

All Reviews ({{comment.star_num?comment.star_num:comment.count}})

All Reviews

5 stars only

4 stars only

3 stars only

2 stars only

1 star only
Reviews with Pictures ( {{comment.pic_comment}} )
See All Reviews

No data

N***n

Denmark

Verified Purchase

5 .0

2026-05-22

Was concerned about multi-vendor compatibility in our mixed switch fabric. Requested pre-coded MSA optics upon ordering — and the vendor delivered! DOM parameters show real-time temperature, voltage, and optical power cleanly in our switch OS. Very impressed with how seamless the integration was.

99 Helpful vote Comments

P***s

Hungary

Verified Purchase

5 .0

2026-03-17

Managing mixed-vendor switch environments often leads to optic compatibility issues and EEPROM errors. We requested custom pre-coding for these SFP28 modules upon ordering, and they performed flawlessly across our entire multi-vendor switch network. The switches instantly recognized the 25GBASE-SR optics, displaying clean serial numbers and accurate diagnostic data without requiring CLI override commands. Link auto-negotiation over LC/UPC multimode fiber was immediate, making them a truly turnkey choice for complex network backbones.

124 Helpful vote Comments

L***r

Ireland

Verified Purchase

5 .0

2026-02-28

Bulletproof transceiver! Installed in our aggregation switches; zero packet loss across 80m OM4 multi-mode fiber runs.

43 Helpful vote Comments

S***e

Poland

Verified Purchase

5 .0

2025-11-23

Deploying field communications cabinets where internal temperatures swing wildly between winter and summer (-30°C to +70°C). Standard commercial optics always overheat or fail. These industrial-grade (-40°C to +85°C) modules haven't dropped a single frame in four months of continuous operation.

111 Helpful vote Comments

M***t

Russian Federation

Verified Purchase

5 .0

2025-11-19

Upgraded our ToR switches to 25GBASE-SR modules. These duplex LC multimode optical transceivers fit snugly into standard SFP28 slots. Running full 25Gbps line rate across 85m OM4 multimode fiber patch cords. Low power consumption keeps our chassis thermals cool. Will definitely order another batch for our next rack expansion.

116 Helpful vote Comments

D***t

South Africa

Verified Purchase

5 .0

2025-09-28

High-speed bliss. Upgraded our core storage cluster to 25G SFP28—massive throughput bump for our SAN environment!

98 Helpful vote Comments

G***g

Ukraine

Verified Purchase

4 .0

2025-05-23

Performance is solid across our OM4 fiber links, and DOM readings are accurate. The only downside was that the package arrived a couple of days late, which slightly delayed our installation schedule.

27 Helpful vote Comments

G***n

New Zealand

Verified Purchase

5 .0

2025-03-08

Solid industrial temp performance. Running rock solid in our unconditioned outdoor enclosure at -20°C ambient without any drops.

79 Helpful vote Comments

S***s

Thailand

Verified Purchase

5 .0

2025-01-11

Using this SFP28 module for 25G uplinks between racks, DOM helps a lot with monitoring TX/RX power. Pretty stable so far!

60 Helpful vote Comments

Y***p

Italy

Verified Purchase

5 .0

2024-06-07

As always, prompt fulfillment and delivered as advertised.

55 Helpful vote Comments

A***a

Hong Kong

Verified Purchase

5 .0

2024-05-03

Just received my order today and it is exactly what I wanted!

52 Helpful vote Comments

J***s

Philippines

Verified Purchase

5 .0

2024-05-02

Nothing to complain, except the slow delivery. Hope it would be Faster the next time.

27 Helpful vote Comments

G***n

United States

Verified Purchase

5 .0

2024-03-12

Found exactly what I wanted, quickly and easily, at the best price. Looking forward to delivery.

64 Helpful vote Comments

J***n

Ukraine

Verified Purchase

5 .0

2024-03-07

Delivery was prompt, product was as advertised. Good job overall.

69 Helpful vote Comments

M***n

Ukraine

Verified Purchase

5 .0

2024-02-15

it was Fast & easy , got the help i need it .

93 Helpful vote Comments

F***l

United States

Verified Purchase

5 .0

2024-02-04

I am totally amazed by the so competitive price for the Transceiver Module. I bought 4pcs for test in advance, which work well on my switches. The price is much cheaper than original. What's more, the quality is pretty well, which has life warranty for it. Great product.

29 Helpful vote Comments

S***e

United Arab Emirates

Verified Purchase

5 .0

2024-01-09

Very good service, l-p.com would be helpful just in case you need more help.

98 Helpful vote Comments

M***y

Morocco

Verified Purchase

5 .0

2024-01-06

Every order, every time - is quick and simple to process, arrives on time, never had an issue with the product, a return, etc. They often have the best price, and product you can't always find elsewhere.

59 Helpful vote Comments

J***u

Lithuania

Verified Purchase

5 .0

2023-12-05

Excellent prices, large selection, and Fast service. Ordering is quick and easy.

88 Helpful vote Comments

S***c

Norway

Verified Purchase

5 .0

2023-12-04

Link-pp has everything that I need in stock, with the best prices and the Fastest shipping. Shopping here is always a fantastic experience for me. I love Link-pp and will continue to use it as my provider for all of my Sfp Cage needs!

49 Helpful vote Comments

z***n

Germany

Verified Purchase

5 .0

2023-09-30

Never had a single issue. Will continue to buy products from Link pp next time.

57 Helpful vote Comments

T***t

Brazil

Verified Purchase

5 .0
