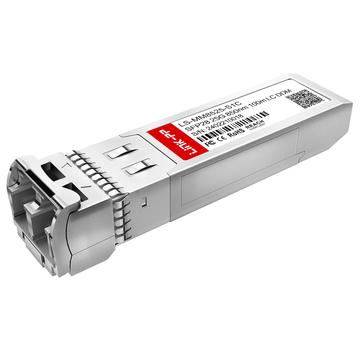

SFP-25G-SR-S is a hot-pluggable 25GBASE-SR SFP28 optical transceiver utilizing an 850nm VCSEL transmitter and PIN receiver to deliver a deterministic 25Gbps line rate across optical transport distances of up to 70m over OM3 or 100m over OM4 multi-mode fiber.
Cisco Part Number
SFP-25G-SR-S
Vendor Name
LINK-PP
Form Factor
SFP28
Max Data Rate
25.7813Gbps
Wavelength
850nm
Max Cable Distance
100m@OM4/70m@OM3
Connector
Duplex LC
Media
MMF
Transmitter Type
VCSEL
Receiver Type
PIN
Power Consumption
≤3.3W
Extinction Ratio
>2dB
DDM/DOM
Supported
Operating Temperature Range
0°C to +70°C
TX Power
-8.4~2.4dBm
Minimum Receiver Power
＜-10.3dBm
Powerbudget
1.9dB
Receiver Overload
2.4dBm
DDM/DOM
Supported
FEC Function
Support RS-FEC, FC FEC
Protocols
SFF-8472, SFF-8024, SFF-8431, SFF-8432
Warranty
5 Years
Key Features of Cisco SFP-25G-SR-S Compatible LINK-PP 25G SFP28
Cisco SFP-25G-SR-S Compatible LINK-PP module is a reliable 25GBASE-SR transceiver module designed for short-reach data communication. It integrates advanced features including an 850nm wavelength, duplex LC interface, and digital optical monitoring to ensure stable multi-mode fiber connectivity. This module provides an efficient and cost-effective solution for modern enterprise network upgrades.
This multimode SFP transceiver is fully compliant with the SFP28 MSA standards to ensure excellent compatibility. It serves as an industry-standard pluggable transceiver for standard 25G Ethernet environments. The design guarantees seamless interoperability with various networking hardware brands.
SFP-25G-SR-S: 25 Gbps Connectivity for Top-of-Rack Interconnects
This SFP28 transceiver delivers a reliable 25Gbps line rate to support the growing bandwidth demands of modern data centers. It is ideal for Top-of-Rack (ToR) switches connecting directly to servers or leaf switches. This ensures low latency and efficient data throughput across short-distance hardware links.
SFP-25G-SR-S Module with 850nm Wavelength
The module utilizes a dependable 850nm VCSEL transmitter to achieve stable optical signal transmission. This specific wavelength is optimized for high-efficiency and cost-saving operations over multi-mode fiber systems. It offers an ideal balance of power consumption and signal integrity.
SFP-25G-SR-S Module Supporting 100m Transmission
It supports data transmission distances of up to 100m when paired with OM4 multi-mode fiber cables. For networks utilizing OM3 multi-mode fiber, it covers a reliable distance of up to 70m. This makes it perfect for intra-rack and inter-rack data center cabling.
SFP-25G-SR-S Module with Duplex LC Interface
Equipped with an industry-standard duplex LC connector, the module ensures quick installation and tight physical connectivity. The precise optical alignment of the LC interface minimizes insertion loss during data transmission. It allows for high-density fiber patching in crowded network environments.
SFP-25G-SR-S Module with DOM for Real-Time Monitoring
The integrated Digital Optical Monitoring (DOM) function allows network administrators to track vital metrics in real time. It monitors key real-time telemetry such as operating temperature, voltage, laser bias current, and optical power. This proactive feature helps prevent sudden link downtime and simplifies troubleshooting.
Cisco SFP-25G-SR-S Compatible LINK-PP 25GBASE-SR SFP28 module complies with major international standards including ISO 9001, CE, RoHS, and FCC to ensure safety, environmental friendliness, and manufacturing excellence.
Each 25GBASE-SR multimode SFP transceiver undergoes rigorous hardware testing and optical parameter verification before shipment to ensure stable performance.
SFP-25G-SR-S Quality Certifications
These global credentials prove that the transceiver module meets strict regulatory mandates for telecommunications hardware.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.
SFP-25G-SR-S Certified for Reliable Host-Device Compatibility
The module is fully certified to work seamlessly across a wide range of industry-standard switches, routers, and servers without link errors.
Every LINK-PP SFP28 module undergoes strict hardware validation to ensure flawless signal integrity and total compatibility across demanding network environments. To discover how we guarantee these strict standards, explore the LINK-PP Test Support Center.
Optical Spectrum Test
Verify the central wavelength and spectral width for stable transmission.
Eye Pattern Test
Analyze optical signal quality to guarantee clear data waveforms.
Bit Error Rate Test
Measure data transmission accuracy to eliminate potential packet loss.
Temperature Test
Evaluate module reliability under varying thermal and environmental conditions.
Product Shipping for Cisco SFP-25G-SR-S Compatible LINK-PP 25G SFP28
We ensure secure packaging and efficient global delivery for every LINK-PP 25G SFP28 optical module. All shipments follow strict logistics standards.
Anti-Static Protective Packaging
Protect sensitive optical components from electrostatic discharge during handling.
Shock-Resistant Transport Protection
Secure the modules firmly to prevent damage during transit.
Fast Order Processing and Dispatch
Speed up order fulfillment to guarantee quick warehouse departure.
Global Logistics and International Delivery
Ship products worldwide using reliable international freight carriers.
Featuring hot-swappable operation, this SFP-25G-SR-S 25GBASE-SR SFP28 module offers effortless deployment without disrupting running systems. It serves as a vital component in modern data center interconnects (DCI), high-performance computing clusters, and enterprise server rooms to optimize short-range, 25Gbps multi-mode fiber links.
SFP-25G-SR-S Technical Support
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Pre-Sales Technical Consultation
Professional guidance to help you select the optimal SFP-25G-SR-S module for your network design and application needs.
Compatibility Verification Support
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Deployment & Installation Assistance
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
Yes, the secure Duplex LC bail latch mechanism is rigorously cycle-tested to ensure repeated clean connections without physical drift. by LINK-PP Technical Support
The transceiver housing can withstand non-operational storage temperatures ranging from -40°C up to 85°C without warping the internal optical array. by LINK-PP Technical Support
Not at all, as long as your multi-mode fiber faces are clean and your patch panels are within normal insertion loss specs, it will hold a flawless 25G link. by LINK-PP Technical Support
