We have older top-of-rack switches that require low-power optics — what is the maximum power draw for this transceiver?

The LS-BL312725-40C operates on a standard +3.3V supply and draws under 1.5W of power. This low power draw prevents port thermal throttling in dense switch configurations.

We are mounting switches inside an unconditioned street cabinet for video surveillance backhaul — is this optical module sufficient?

This commercial-grade SFP28 module is rated for 0°C to +70°C case operating temperature inside standard indoor racks or climate-controlled enclosures. If your outdoor cabinets experience freezing winters or extreme heat, we recommend our industrial-grade version (-40°C to +85°C).

We manage a multi-tenant rack environment — can we read real-time laser bias and temperature stats via standard SNMP polling on this optical transceiver?

Yes, the built-in SFF-8472 compliant DDM function lets you monitor optical Rx/Tx power, voltage, laser bias current, and temperature natively via SNMP or CLI.

Can we use these transceivers for 5G mobile fronthaul tower links running eCPRI protocol?

Yes, it fully supports both 25.78Gbps Ethernet (IEEE 802.3cc) and 5G eCPRI / CPRI Option 10 wireless protocols over 40km SMF.

Breadcrumb: Home; Products; Optics Transceivers | SFP Modules; 10/25/40G/100G Transceiver Modules; 25G SFP28; 218394

Click to open expanded view

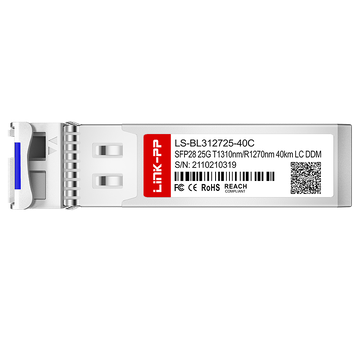

Cisco SFP-25GBX-D-40 Compatible LINK-PP 25G SFP28 BiDi 1310nm-TX/1270nm-RX 40km Simplex LC/UPC DOM SMF Optical Transceiver Module

Name: Cisco SFP-25GBX-D-40 Compatible LINK-PP 25G SFP28 BiDi 1310nm-TX/1270nm-RX 40km Simplex LC/UPC DOM SMF Optical Transceiver Module
Brand: LINK-PP
SKU: 218394
Price: 356.9 USD
Availability: InStock
Rating: 4.9 (29 reviews)

# 218394

Product: Cisco SFP-25GBX-D-40 Compatible LINK-PP 25G SFP28 BiDi 1310nm-TX/1270nm-RX 40km Simplex LC/UPC DOM SMF Optical Transceiver Module
SKU: 218394
P/N: LS-BL312725-40C
Price: $ 415
Stock: 137 in Stock
Sold: 1.1K
Product URL: https://www.l-p.com/products/493445.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

29 Reviews

4 Questions

Request Stock

1.1K Sold

$ 415

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 415

100

$ 394.25

1000

$ 381.8

3000

$ 369.35

6000

$ 356.9

Manufacture: LINK-PP

P/N: LS-BL312725-40C

Compatible:: Cisco; LINK-PP; Arista; Brocade; DELL; FS; Generic; HW; Juniper; Mellanox

Compatible P/N:: SFP-25G-BXD-I | 10km; SFP-25GBX-D-10 | 10km; SFP-25GBX-U-10 | 10km; SFP28-25G-BX-I | 10km; SFP-25G32-BX20-I | 20km; SFP-25GBX-D-20 | 20km; SFP-25GBX-U-20 | 20km; SFP28-25G-BX20-I | 20km; SFP-25G-BX40D-I | 40km; SFP-25G-BX40U-I | 40km; SFP-25G23-BX40 | 40km; SFP-25GBX-D-40 | 40km

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

Specifications

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

Cisco SFP-25GBX-D-40 Compatible LINK-PP 25G SFP28 Specifications

SFP-25GBX-D-40 operates as a 25G SFP28 BiDi single-mode optical transceiver module, delivering reliable 40km connectivity over 1310nm-TX/1270nm-RX wavelengths within a 0 to 70°C commercial temperature envelope.

Cisco Part Number	SFP-25GBX-D-40	Vendor Name	LINK-PP
Form Factor	SFP28	Max Data Rate	25.78Gbps
Wavelength	1310nm-TX/1270nm-RX	Max Cable Distance	40km
Connector	Simplex LC	Media	SMF
Transmitter Type	DFB	Receiver Type	APD
TX Power	-1 to +7dBm	RX Power	-15 to +3dBm
Receiver Sensitivity	＜-19dBm	Receiver Overload	-7dBm
Operating Temperature Range	0 to 70°C	Protocols	MSA Compliant, CPRI, eCPRI

Videos

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LS-BL312725-40C.pdf

Questions & Answers
Ask a Question

No data

Q: We have older top-of-rack switches that require low-power optics — what is the maximum power draw for this transceiver? By N***s on 2026-03-28

A: The LS-BL312725-40C operates on a standard +3.3V supply and draws under 1.5W of power. This low power draw prevents port thermal throttling in dense switch configurations. By admin on 2026-03-29
Q: We are mounting switches inside an unconditioned street cabinet for video surveillance backhaul — is this optical module sufficient? By H***e on 2026-01-09

A: This commercial-grade SFP28 module is rated for 0°C to +70°C case operating temperature inside standard indoor racks or climate-controlled enclosures. If your outdoor cabinets experience freezing winters or extreme heat, we recommend our industrial-grade version (-40°C to +85°C). By admin on 2026-01-10
Q: We manage a multi-tenant rack environment — can we read real-time laser bias and temperature stats via standard SNMP polling on this optical transceiver? By M***y on 2025-06-25

A: Yes, the built-in SFF-8472 compliant DDM function lets you monitor optical Rx/Tx power, voltage, laser bias current, and temperature natively via SNMP or CLI. By admin on 2025-06-26
Q: Can we use these transceivers for 5G mobile fronthaul tower links running eCPRI protocol? By L***r on 2025-04-03

A: Yes, it fully supports both 25.78Gbps Ethernet (IEEE 802.3cc) and 5G eCPRI / CPRI Option 10 wireless protocols over 40km SMF. By admin on 2025-04-04
