What is the maximum transmission distance supported by the 100GBASE-LR4 QSFP28 transceiver?

This 100GBASE-LR4 QSFP28 module is specifically designed to support a maximum link length of 10 kilometers over standard Single Mode Fiber (SMF) without requiring external amplification.

Is the NVIDIA/Mellanox MMA1L10-CR Compatible LINK-PP compatible with my existing Cisco or Juniper network switches?

Yes, the 100GBASE-LR4 QSFP28 is fully compliant with the QSFP28 MSA technical specifications, ensuring seamless plug-and-play interoperability with major equipment vendors like Cisco, Juniper, and Arista.

Does this 100GBASE-LR4 QSFP28 transceiver support Digital Diagnostic Monitoring (DDM)?

Absolutely, it features comprehensive DDM functions accessible via the I2C interface as specified by SFF-8636, allowing real-time monitoring of temperature, optical transmit/receive power, and voltage.

What type of laser technology does the 100GBASE-LR4 QSFP28 use to achieve its 10km reach?

The module utilizes a high-performance 4x25Gb/s DFB-based LAN-WDM transmitter, which provides excellent wavelength stability and minimizes chromatic dispersion over the 10km optical link.

Is the MMA1L10-CR compatible with standard QSFP28 ports?

It is designed for compatible QSFP28 host systems that support 100GBASE-LR4 optical modules. Final compatibility should always be confirmed against the host platform’s approved vendor list and port requirements.

Does it comply with standard Ethernet and telecom protocols?

Yes. The transceiver follows MSA requirements and supports common Ethernet networking applications as well as telecom transport environments where compatible standards are required.

What fiber type and connector should we use with this transceiver?

The module supports the specified optical fiber type on the product page and uses standard LC connectivity for reliable enterprise and telecom installations.

Will these modules work with Cisco, Juniper, Aruba, and Ubiquiti switches?

Yes. They support broad OEM compatibility and can be programmed for Cisco, Juniper, Aruba, Ubiquiti, Dell, Netgear, and other major networking vendors.

Can we get better pricing for large enterprise or ISP orders?

Absolutely. Volume discounts and customized quotations are available for data centers, telecom operators, system integrators, and long-term procurement projects.

Is there an industrial temperature version for outdoor cabinets or factory environments?

Yes. Industrial-grade models with extended operating temperature ranges are available for telecom sites, manufacturing facilities, and other harsh deployment scenarios.

Breadcrumb: Home; Products; Optics Transceivers | SFP Modules; 10/25/40G/100G Transceiver Modules; 100G QSFP28/SFP-DD; 219428

Click to open expanded view

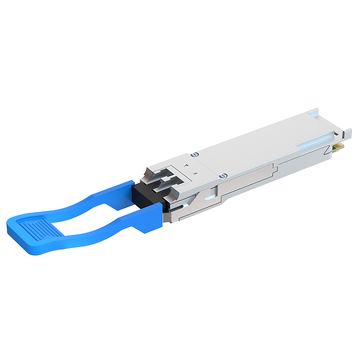

NVIDIA/Mellanox MMA1L10-CR Compatible LINK-PP 100G QSFP28 LAN-WDM 1310nm 10km Duplex LC DDM SMF Optical Transceiver Module

Name: NVIDIA/Mellanox MMA1L10-CR Compatible LINK-PP 100G QSFP28 LAN-WDM 1310nm 10km Duplex LC DDM SMF Optical Transceiver Module
Brand: LINK-PP
SKU: 219428
Price: 573.76 USD
Availability: InStock
Rating: 5 (27 reviews)

# 219428

Product: NVIDIA/Mellanox MMA1L10-CR Compatible LINK-PP 100G QSFP28 LAN-WDM 1310nm 10km Duplex LC DDM SMF Optical Transceiver Module
SKU: 219428
P/N: LQ-LW100-LR4C
Price: $ 652
Stock: 1962 in Stock
Sold: 11.8K
Product URL: https://www.l-p.com/products/494292.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

27 Reviews

5 Questions

Request Stock

11.8K Sold

$ 652

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 652

$ 632.44

100

$ 612.88

1000

$ 593.32

3000

$ 573.76

Manufacture: LINK-PP

P/N: LQ-LW100-LR4C

Compatible:: Cisco; LINK-PP; Alcatel-Lucent; Allied Telesis; Arista; Avago; Broadcom; Brocade; Check Point; Chelsio; Ciena; D-Link; Dell; Edge-Core; Extreme; F5 Networks; FS; Fortinet; Generic; H3C; HPE Aruba; HW; Intel; Ixia; Juniper; MRV; Mikrotik; NVIDIA/Mellanox; Palo Alto

Compatible P/N:: MMA1L10-CR | 10km; MMA1L10-CR-I | 10km; QSFP-4W20-100G-I | 20km; QSFP-4W40-100G-I | 40km; QSFP-ER4L-100G | 40km

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

Specifications

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

NVIDIA/Mellanox MMA1L10-CR Compatible LINK-PP 100G QSFP28 Specifications

The NVIDIA/Mellanox MMA1L10-CR Compatible LINK-PP module is a 100GBASE-LR4 QSFP28 optical transceiver designed for high-speed Ethernet links over single-mode fiber. It supports an aggregate data rate of 103.125Gb/s, a maximum reach of 10km, and provides stable duplex LC connectivity with DDM support for real-time monitoring.

NVIDIA/Mellanox Part Number	MMA1L10-CR	Vendor Name	LINK-PP
Form Factor	QSFP28	Max Data Rate	103.1Gbps
Wavelength	1295.56nm, 1300.05nm, 1304.58nm and 1309.14nm	Max Cable Distance	10km
Connector	Duplex LC	Media	SMF
Transmitter Type	EML	Receiver Type	PIN
Power Consumption	≤3.3W	Protocols	IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636
Host FEC	Supported	Operating Temperature Range	0°C to +70°C

Videos

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LQ-LW100-LR4C.pdf

Questions & Answers
Ask a Question

No data

Q: Does it comply with standard Ethernet and telecom protocols? By S***n on 2025-08-09

A: Yes. The transceiver follows MSA requirements and supports common Ethernet networking applications as well as telecom transport environments where compatible standards are required. By admin on 2025-08-09
Q: What fiber type and connector should we use with this transceiver? By K***s on 2025-06-21

A: The module supports the specified optical fiber type on the product page and uses standard LC connectivity for reliable enterprise and telecom installations. By admin on 2025-06-21
Q: Will these modules work with Cisco, Juniper, Aruba, and Ubiquiti switches? By M***s on 2025-05-25

A: Yes. They support broad OEM compatibility and can be programmed for Cisco, Juniper, Aruba, Ubiquiti, Dell, Netgear, and other major networking vendors. By admin on 2025-05-25
Q: Can we get better pricing for large enterprise or ISP orders? By K***z on 2025-03-25

A: Absolutely. Volume discounts and customized quotations are available for data centers, telecom operators, system integrators, and long-term procurement projects. By admin on 2025-03-25
Q: Is there an industrial temperature version for outdoor cabinets or factory environments? By R***s on 2024-10-18

A: Yes. Industrial-grade models with extended operating temperature ranges are available for telecom sites, manufacturing facilities, and other harsh deployment scenarios. By admin on 2024-10-18
