The LINK-PP LS-SM5510-80C is a high-performance 10GBASE-ZR SFP+ optical transceiver designed for long-haul optical communication. Operating at a wavelength of 1550nm over single-mode fiber, this module supports a stable data rate of 1.25Gbps to 10Gbps and transmission distances up to 80km, making it an optimal solution for extended enterprise networks and metropolitan area networks.
LINK-PP Part Number
LS-SM5510-80C
Vendor Name
LINK-PP
Form Factor
SFP+
Max Data Rate
10.7Gbps
Wavelength
1550nm
Max Cable Distance
80km
Connector
Duplex LC
Media
SMF
Transmitter Type
EML
Receiver Type
APD
TX Power
-1 to +4dBm
RX Power
-23 to -6dBm
Receiver Sensitivity
<-23dBm
DDM/DOM
Supported
Operating Temperature Range
0°C to +70°C
Protocols
SFP+ MSA Compliant, CPRI, eCPRI
Key Features of LINK-PP LS-SM5510-80C 10G SFP+
Engineered for extended network reach, this high-density 10GBASE-ZR SFP+ module delivers stable 10 Gbps transmission over 80km of single-mode fiber. It integrates advanced digital diagnostic monitoring capabilities, ensuring superior signal integrity and simplified fault isolation for demanding carrier-grade infrastructure.
LINK-PP LS-SM5510-80C 10G SFP+ Optical Module
Delivering reliable 10 Gbps throughput over 80km, this robust 10GBASE-ZR SFP+ transceiver provides enterprise networks with seamless long-haul connectivity and real-time performance monitoring.
LS-SM5510-80C: 10 Gbps Connectivity for Metropolitan Area Network Rings
This high-speed 10G capability ensures zero-bottleneck data aggregation across distributed data centers, allowing seamless high-bandwidth applications and rapid disaster recovery replication over extensive geographical distances.
LS-SM5510-80C Module with 1550nm Wavelength
10GBASE-ZR SFP+ Module with 1550nm Wavelength operates in the lowest attenuation window of silica optical fiber. This specific wavelength minimizes signal loss over long distances, providing the optical stability required to maintain data integrity across 80km spans without the immediate need for signal amplification.
LS-SM5510-80C Module Supporting 80km Transmission
80km Transmission bridges vast physical gaps between remote enterprise campuses and telecommunication hubs. By achieving this extended reach via single-mode fiber, network architects can significantly reduce the capital expenditure associated with deploying intermediate repeaters or active amplification equipment.
LS-SM5510-80C Module with Duplex LC Interface
The industry-standard LC connector ensures high-density patching and secure physical connections within crowded rack environments.
LS-SM5510-80C Module with DDM for Real-Time Monitoring
This built-in diagnostic capability facilitates rapid troubleshooting, reduces network downtime, and ensures the continuous health of critical fiber optic links.
LINK-PP LS-SM5510-80C 10G SFP+ Certification
The LINK-PP LS-SM5510-80C complies with stringent international networking standards to guarantee optimal safety and operational reliability.
Ensures the 10GBASE-ZR SFP+ module undergoes a comprehensive evaluation to verify its optical parameters and structural integrity before leaving the manufacturing facility.
LS-SM5510-80C Quality Certifications
Indicate that this module holds major global regulatory approvals including CE, FCC, and RoHS compliance for safe operation.
This product is in conformity with ISO9001. This system is valid to a company engaging in development, production and supply service of fiber optical products. Please contact us to learn more.
ISO/IEC 27001 is an international standard for managing and processing information security. This standard is jointly developed by the International Organization for Standardization (ISO) and the International Electrotechnical Commission (IEC). It sets out requirements for establishing, implementing, maintaining, and continually improving an information security management system (ISMS). Ensuring the confidentiality, integrity, and availability of organizational information assets, obtaining an ISO 27001 certificate means that the enterprise has passed the audit conducted by a certification body, proving that its information security management system has met the requirements of the international standard. Please contact us to learn more.
This product is in conformity with ISO14001.It is intended for use by an organization seeking to manage its environmental responsibilities in a systematic manner that contributes to the environmental pillar of sustainability. Please contact us to learn more.
ISO 45001 is a global standard that sets out the requirements for an occupational health and safety management system (OH&SMS).
REACH is a European Union regulation concerning the Registration, Evaluation, Authorization and Restriction of Chemicals. It came into force on 1st June 2007 and replaced a number of European Directives and Regulations with a single system. The regulation aims to protect human health and environmental safety, maintain and improve the competitiveness of the EU chemical industry, and develop innovative capabilities for non-toxic and harmless compounds to prevent market fragmentation, increase the transparency of the use of chemicals, promote non-animal experiments, and pursue sustainable social development.Please contact us to learn more.
This product meets the applicable requirements of Directive (EU) 2015/863 of RoHS. It restricts the use of 10 hazardous materials in the manufacture of various types of electronic and electrical equipment: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, and four different phthalates. Please contact us to learn more.
This product fully accords with the FCC, which aims to manage the radio wave and magnetic fields more reasonably. Please contact us to learn more.
CB is an international system operated by IECEE. This product is based on IEC standards for testing the safety performance of electrical products. Please contact us to learn more.
This product fully accords with UKCA (UK Conformity Assessed) certificate, which signifies that it meets all relevant quality standards as well as health and safety requirements. Please contact us to learn more.
UL certification is a non-mandatory certification in the United States,mainly testing and certification of product safety performance.Its ultimate purpose is to obtain products with a fairly safe level for the market,and to contribute to ensuring human health and property safety.Please contact us to learn more.

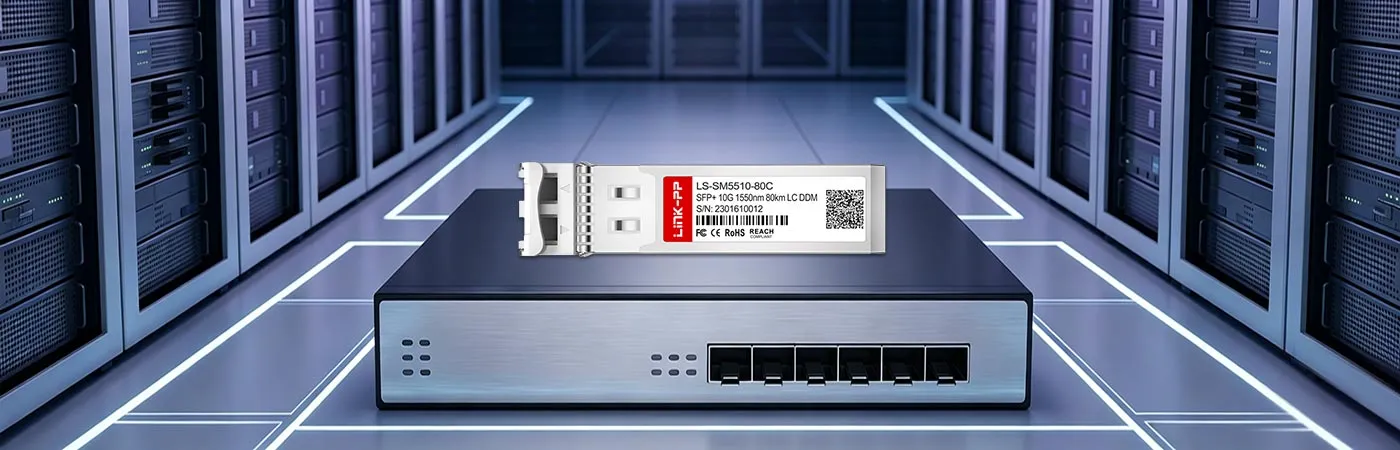

LS-SM5510-80C Certified for Reliable Host-Device Compatibility
Confirms plug-and-play functionality and MSA compliance across a wide range of major OEM switches and routers.
Subjecting every individual 10GBASE-ZR SFP+ module to automated inspection processes that validate both optical and electrical characteristics under extreme conditions.
Optical Spectrum Test
Confirms that the 1550nm laser maintains precise center wavelength and narrow spectral width to prevent chromatic dispersion.
Eye Pattern Test
Conducted to evaluate signal quality, ensuring clear definition and minimal jitter for error-free 10 Gbps transmission.
Bit Error Rate Test
Continuously pushes data streams through the module to guarantee zero packet loss over the specified 80km optical link.
Temperature Test
Verifies that the 10GBASE-ZR SFP+ transceiver maintains thermal stability and consistent optical output from 0 to 70 degrees Celsius.
Product Shipping for LINK-PP LS-SM5510-80C 10G SFP+
Product shipping for the LINK-PP LS-SM5510-80C 10GBASE-ZR is managed through a secure, systematic logistics pipeline designed to protect sensitive optical components during transit.
Anti-Static Protective Packaging
Ensures each module is individually sealed to prevent electrostatic discharge damage to the internal microelectronics.
Shock-Resistant Transport Protection
Utilizes custom-fitted foam enclosures to absorb physical impacts and vibrations during long-distance shipping.
Fast Order Processing and Dispatch
Ensure that inventory is quickly picked, verified, and handed over to carriers to meet strict project deadlines.
Global Logistics and International Delivery
Global Logistics partnerships guarantee reliable, tracked shipments to enterprise customers and data centers worldwide.

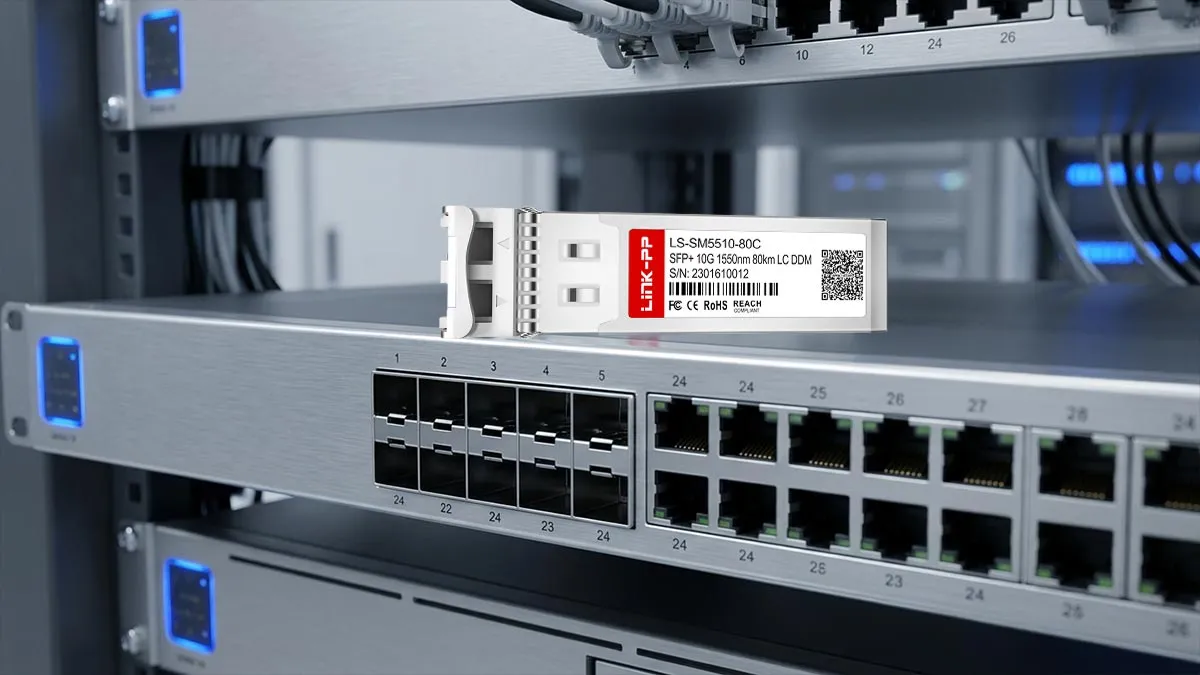

The LS-SM5510-80C 10GBASE-ZR SFP+ connects effortlessly into any standard SFP+ port on compatible switches, instantly establishing a secure fiber link. Upon insertion, the hot-pluggable design allows immediate recognition by the host system, enabling administrators to configure long-haul uplinks and monitor digital diagnostics without interrupting active network traffic.
LS-SM5510-80C Technical Support
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Pre-Sales Technical Consultation
Professional technical guidance to help customers select the most suitable LS-SM5510-80C modules based on network architecture and application requirements.
Compatibility Verification Support
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Deployment & Installation Assistance
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Long-Term Technical Assurance
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
This 1550nm transceiver is designed exclusively for Single Mode Fiber (SMF) with a Duplex LC connector. To prevent signal distortion and receiver saturation, we strongly recommend using OS2 SMF cable even for shorter distances, along with appropriate optical attenuators if the run is very short. by LINK-PP Technical Support
It is highly versatile. Besides being fully compliant with 10GBASE-ZR/ZW Ethernet standards, it supports standard CPRI, eCPRI, and OTU2/OTU2e data rates, making it perfect for both enterprise LAN extensions and telecom base station applications. by LINK-PP Technical Support
Absolutely! For large-scale B2B procurements of our 10G SFP+ 80km transceivers, please contact our B2B sales team. We provide tiered volume pricing and dedicated procurement support for enterprise clients. by LINK-PP Technical Support
This specific module is designed for standard commercial temperatures (0°C to 70°C). However, we do offer an industrial-grade version (-40°C to 85°C) for this exact 1550nm 80km spec. Please check our store or contact support for the industrial SKU. by LINK-PP Technical Support
Yes, these 10GBASE-ZR transceivers are strictly tested for OEM compatibility. They will plug and play seamlessly with Cisco, Juniper, Arista, Ubiquiti, and other major brands without any vendor lock-in issues. by LINK-PP Technical Support
