What is the maximum safe operational temperature threshold for the standard LS-MM8510-S3C SFP module?

The standard commercial-grade module is rated for stable operation within a standard indoor environment range of 0°C to 70°C.

What is the maximum transmission distance achieved by this module when operating over standard OM3 multi-mode fiber?

This transceiver supports a maximum link distance of up to 300 meters when deployed on high-quality OM3 multi-mode infrastructure.

Will this module function properly in standard multi-vendor SFP+ slots without experiencing firmware lockout issues?

Yes, the module is fully compliant with standard Multi-Source Agreement (MSA) specifications, ensuring seamless operation across standard hardware platforms.

Can this commercial-grade 10G SFP module be customized or upgraded to handle extreme outdoor operational temperatures?

Yes, we offer industrial-grade versions designed to operate efficiently across an extended temperature range from -40°C to 85°C.

Does the integrated DOM mechanism provide real-time notification alerts if the laser bias current surpasses standard limits?

The module continuously updates the internal register parameters according to SFF-8472, allowing your switch's operating system to trigger automatic SNMP traps.

Breadcrumb: Home; Products; Optics Transceivers | SFP Modules; 10/25/40G/100G Transceiver Modules; 10G SFP+; 219342

Click to open expanded view

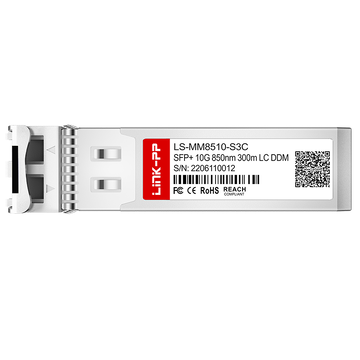

Check Point CPAC-TR-10SR-C Compatible LINK-PP 10G SFP+ 850nm 300m Duplex LC/UPC DOM MMF Optical Transceiver Module

Name: Check Point CPAC-TR-10SR-C Compatible LINK-PP 10G SFP+ 850nm 300m Duplex LC/UPC DOM MMF Optical Transceiver Module
Brand: LINK-PP
SKU: 219342
Price: 15.91 USD
Availability: InStock
Rating: 4.9 (28 reviews)

# 219342

Product: Check Point CPAC-TR-10SR-C Compatible LINK-PP 10G SFP+ 850nm 300m Duplex LC/UPC DOM MMF Optical Transceiver Module
SKU: 219342
P/N: LS-MM8510-S3C
Price: $ 18.5
Stock: 972 in Stock
Sold: 2.3K
Product URL: https://www.l-p.com/products/495781.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

: Check Point CPAC-TR-10SR-C Compatible LINK-PP 10G SFP+ 850nm 300m Duplex LC/UPC DOM MMF Optical Transceiver Module

28 Reviews Need Help?

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}
Quantity

28 Reviews

5 Questions

Request Stock

2.3K Sold

$ 18.5

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 18.5

100

$ 17.575

1000

$ 17.02

3000

$ 16.465

6000

$ 15.91

Manufacture: LINK-PP

P/N: LS-MM8510-S3C

Compatible:: Cisco; LINK-PP; Alcatel-Lucent; Arista; Aruba; Avago; Avaya; Broadcom; Brocade; Check Point; Ciena; D-Link; DELL; EdgeCore; Extreme; F5 Networks; FS; Finisar; Fortinet; Generic; H3C; HPE; HPE BladeSystem; HW; IBM; Intel; Juniper; Mellanox; Meraki; MikroTik; Netgear; Palo Alto; ProCurve; Ruijie; SonicWall; Ubiquiti; ZTE

Compatible P/N:: CPAC-TR-10SR-C | 300m

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

Specifications

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

Check Point CPAC-TR-10SR-C Compatible LINK-PP 10G SFP+ Specifications

CPAC-TR-10SR-C is a 10GBASE-SR SFP+ optical transceiver module designed for 850nm operation, delivering up to 300m transmission over multi-mode fiber (MMF), featuring a duplex LC/UPC interface, compliant with SFP+ MSA standards, and equipped with digital optical monitoring (DOM) for real-time parameter visibility.

Check Point Part Number	CPAC-TR-10SR-C	Vendor Name	LINK-PP
Form Factor	SFP+	Max Data Rate	10.7Gbps
Wavelength	850nm	Max Cable Distance	300m
Connector	Duplex LC	Media	MMF
Transmitter Type	VCSEL	Receiver Type	PIN
TX Power	-6 to -0.5dBm	RX Power	-16 to -1dBm
Receiver Sensitivity	< -10.5dBm	Operating Temperature Range	0 to 70°C
DDM/DOM	Supported	Protocols	IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432,SFP+ MSA Compliant, CPRI, eCPRI

Videos

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LS-MM8510-S3C.pdf

Questions & Answers
Ask a Question

No data

Q: What is the maximum safe operational temperature threshold for the standard LS-MM8510-S3C SFP module? By I***h on 2026-03-22

A: The standard commercial-grade module is rated for stable operation within a standard indoor environment range of 0°C to 70°C. By admin on 2026-03-23
Q: What is the maximum transmission distance achieved by this module when operating over standard OM3 multi-mode fiber? By S***s on 2026-02-14

A: This transceiver supports a maximum link distance of up to 300 meters when deployed on high-quality OM3 multi-mode infrastructure. By admin on 2026-02-15
Q: Will this module function properly in standard multi-vendor SFP+ slots without experiencing firmware lockout issues? By C***t on 2025-12-08

A: Yes, the module is fully compliant with standard Multi-Source Agreement (MSA) specifications, ensuring seamless operation across standard hardware platforms. By admin on 2025-12-09
Q: Can this commercial-grade 10G SFP module be customized or upgraded to handle extreme outdoor operational temperatures? By P***f on 2025-11-25

A: Yes, we offer industrial-grade versions designed to operate efficiently across an extended temperature range from -40°C to 85°C. By admin on 2025-11-26
Q: Does the integrated DOM mechanism provide real-time notification alerts if the laser bias current surpasses standard limits? By T***k on 2025-10-12

A: The module continuously updates the internal register parameters according to SFF-8472, allowing your switch's operating system to trigger automatic SNMP traps. By admin on 2025-10-13
