Avaya AA1419059-E6 Compatible LINK-PP 1.25G SFP CWDM Single Mode Optical Transceiver Module(1590nm,40km,SMF,Duplex LC,DOM) The Avaya AA1419059-E6 Compatible LINK-PP module is a high performance, cost effective 1.25G SFP transceiver designed for single-mode fiber networks. It supports reliable data transmission up to 40 km using a CWDM DFB laser, with built-in digital diagnostics (SFF-8472) and full compliance with SFP MSA and Class 1 laser safety standards.   Avaya Part NumberAA1419059-E6Vendor NameLINK-PP Form Factor SFP Max Data Rate 1.25Gbps Wavelength 1590nm Max Cable

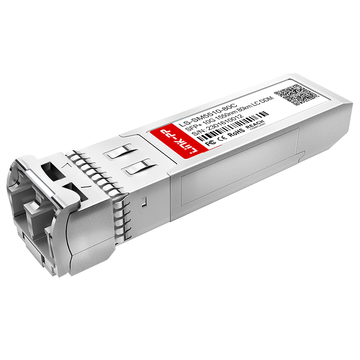

Avaya AA1403016-E6 Compatible LINK-PP 10G SFP+ Specifications The Avaya AA1403016-E6 Compatible LINK-PP module is a high-performance 10GBASE-ZR SFP+ optical transceiver designed for long-haul optical communication. Operating at a wavelength of 1550nm over single-mode fiber, this module supports a stable data rate of 1.25Gbps to 10Gbps and transmission distances up to 80km, making it an optimal solution for extended enterprise networks and metropolitan area networks. Avaya Part NumberAA1403016-E6Vendor NameLINK-PP Part Status Active Form Factor SFP+ Max Data

Avaya AA1403019-E6 Compatible LINK-PP 3m (10ft) 10G SFP+ Copper Cable RoHS Compliant (3-meter, Passive, SFP+ to SFP+) The Avaya AA1403019-E6 Compatible LINK-PP SFP+ Direct Attach Cable is Compliant With the SFF-8431,SFF-8432 and SFF-8472 specifications. Various choices of wire gauge are available from 30 to 24 AWG with various choices of cable length(up to 7m).The 10G SFP+ Copper Cable offers a cost-effective connectivity for establishing a 10-Gigabit short-distance connectivity within a rack or between adjacent racks in data centers. Avaya Part NumberAA1403019-E6Vendor NameLINK-PP

Avaya AA1419048-E6 Compatible LINK-PP 1G SFP Specifications The Avaya AA1419048-E6 Compatible LINK-PP module is an industrial-grade 1G SFP transceiver engineered for reliable Gigabit Ethernet over multi-mode fiber. Operating at an 850nm wavelength, it supports transmission distances up to 550 meters via duplex LC interfaces. This hot-pluggable module features digital optical monitoring (DOM) and thrives in harsh environments from -40°C to +85°C. Avaya Part NumberAA1419048-E6Vendor NameLINK-PP Form Factor SFP Max Data Rate 1.25Gbps Wavelength 850nm

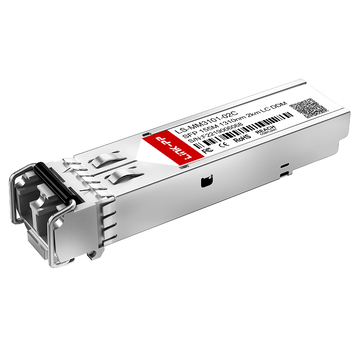

Avaya AA1419074-E6 Compatible LINK-PP 155M SFP Specifications AA1419074-E6 redefines entry-level fiber connectivity as a 155M SFP multi-mode optical transceiver, engineered with a precision 1310nm FP laser and PIN photo detector to drive seamless data transmission up to a 2km span across multi-mode fiber within standard 0°C to 70°C commercial environments. Avaya Part NumberAA1419074-E6Vendor NameLINK-PP Form Factor SFP Max Data Rate 155Mbps Wavelength 1310nm Max Cable Distance 2km Connector Duplex LC Media MMF Transmitter Type FP

Avaya AA1419077-E6 Compatible LINK-PP 1G BiDi SFP Specifications The Avaya AA1419077-E6 Compatible LINK-PP module is a high-performance 1G BiDi SFP optical module designed for Gigabit Ethernet and Fibre Channel applications. It features a 1.25Gbps data rate, 1490nm-TX/1310nm-RX wavelengths, and operates over single-mode fiber up to 40km. Equipped with a simplex LC interface and DDM capabilities, this commercial-grade fiber optic transceiver ensures robust and reliable network connectivity. Avaya Part NumberAA1419077-E6Vendor NameLINK-PP Form Factor SFP Max Data

Avaya AA1419082-E5-U Compatible LINK-PP 155M SFP Specifications AA1419082-E5-U is a 155M SFP BiDi single-mode optical transceiver engineered to deliver bidirectional data transmission up to 10km over a single strand of fiber by pairing a 1310nm FP laser transmitter with a 1550nm PIN photodiode receiver. Avaya Part NumberAA1419082-E5-UVendor NameLINK-PP Form Factor SFP Max Data Rate 155Mbps Wavelength 1310nm-TX/1550nm-RX Max Cable Distance 10km Connector Simplex LC Media SMF Transmitter Type FP Receiver Type PIN TX Power -14 to

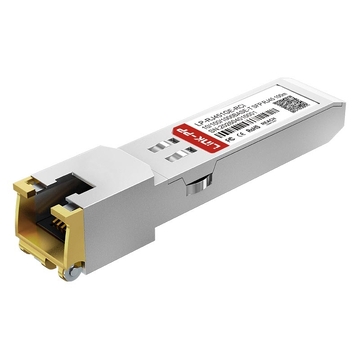

Avaya SFP-GEB-T-IL Compatible LINK-PP 10/100/1000BASE-T SFP SGMII Copper 100m RJ-45 Industrial Transceiver Module The Avaya SFP-GEB-T-IL Compatible LINK-PP module is a high-performance, industrial-grade copper SFP transceiver operating over an SGMII interface. Powered by the Realtek RTL8213B chip, it supports 10/100/1000Mbps auto-negotiation and delivers reliable full-duplex links up to 100 meters over Category 5 UTP cabling. It features integrated Tx-disable and Rx_los functions as standard. Avaya Part NumberSFP-GEB-T-ILVendor NameLINK-PP Part Status Active Form Factor

Avaya SFP-GEB-T-IL Compatible LINK-PP 10/100/1000BASE-T SFP Specifications The Avaya SFP-GEB-T-IL Compatible LINK-PP module is a high-performance, industrial-grade copper SFP transceiver operating over an SGMII interface. Powered by the Realtek RTL8213B chip, it supports 10/100/1000Mbps auto-negotiation and delivers reliable full-duplex links up to 100 meters over Category 5 UTP cabling. It features integrated Tx-disable and Rx_los functions as standard. Avaya Part NumberSFP-GEB-T-ILVendor NameLINK-PP Part Status Active Form Factor SFP SGMII Max. Data Rate 1

Avaya AA1419053-E6 Compatible LINK-PP 1.25G SFP CWDM Single Mode Optical Transceiver Module(1470nm,40km,SMF,Duplex LC,DOM) The Avaya AA1419053-E6 Compatible LINK-PP module is a high performance, cost-effective 1.25G SFP transceiver designed for single mode fiber networks. It supports reliable data transmission up to 40 km using a CWDM DFB laser, with built-in digital diagnostics (SFF-8472) and full compliance with SFP MSA and Class 1 laser safety standards.   Avaya Part NumberAA1419053-E6Vendor NameLINK-PP Form Factor SFP Max Data Rate 1.25Gbps Wavelength 1470nm Max Cable

Avaya SFP-GEB-T-IL Compatible LINK-PP 10/100/1000BASE-T SFP Specifications SFP-GEB-T-IL is an industrial-grade 10/100/1000BASE-T SFP copper transceiver module that features low power consumption, a fully metallic enclosure to reduce EMI, and a 100-meter transmission range over Cat 5 cable in extreme temperatures from -40°C to +85°C. Avaya Part NumberSFP-GEB-T-ILVendor NameLINK-PP Part Status Active Form Factor SFP SGMII Max. Data Rate 1.25G Max. Cable Distance 100m Media Cat 5 Connector RJ-45 RX_LOS Yes DOM Support No

Avaya SFP-GEB-T-IL Compatible LINK-PP 10/100/1000BASE-T SFP Specifications SFP-GEB-T-IL acts as an industrial-grade 10/100/1000BASE-T SFP copper module engineered for extreme environments, sustaining deterministic network links up to 100m over Category 5 twisted-pair cabling while effortlessly adapting to diverse host systems via its dual-architecture support for SERDES (at native 1000BASE-T) and SGMII (at 10/100/1000Mbps multi-rate compliance) across an operating temperature spectrum of -40°C to +85°C. Avaya Part NumberSFP-GEB-T-ILVendor NameLINK-PP Part

Avaya 700283872 Compatible LINK-PP 1000BASE-T SFP Specifications 700283872 is a commercial-grade 1000BASE-T copper SFP transceiver module engineered for efficient gigabit connectivity up to 100m over Cat 5 cabling, featuring a compact RJ-45 connector and an eco-conscious design that draws a typical low power dissipation of just 1.05W while housing its circuitry in a fully metallic enclosure to guarantee low electromagnetic interference across its 0°C to 70°C operating temperature range. Avaya Part Number700283872Vendor NameLINK-PP Part Status Active Form

Avaya AA1419043-E6 Compatible LINK-PP 1000BASE-T SFP Specifications AA1419043-E6 is an industrial-grade 1000BASE-T SFP copper transceiver module engineered for host systems with a SERDES interface, driving data reliably across 100m of Category 5 twisted-pair cabling with a typical power dissipation of just 1.05W while enduring extreme thermal envelopes from -40°C to +85°C. Avaya Part NumberAA1419043-E6Vendor NameLINK-PP Part Status Active Form Factor SFP Max. Data Rate 1.25G Max. Cable Distance 100m Media Cat 5 Connector RJ-45 Rx LOS

Avaya SFP1G-SX-31-I Compatible LINK-PP 1.25G SFP Specifications The Avaya SFP1G-SX-31-I Compatible LINK-PP module is a high-performance 1.25Gbps SFP transceiver engineered for single-mode fiber infrastructure. It features a 1310nm FP laser transmitter paired with a highly sensitive PIN photodiode receiver. Operating on a stable +3.3V power supply, this hot-pluggable module fully complies with standard SFP MSA and SFF-8472 specifications. It delivers efficient gigabit data transmission. Avaya Part NumberSFP1G-SX-31-IVendor NameLINK-PP Form Factor SFP Max Data Rate

Avaya SFP1G-SX-31 Compatible LINK-PP 1.25G SFP Specifications The Avaya SFP1G-SX-31 Compatible LINK-PP module is a high-performance Small Form-factor Pluggable (SFP) transceiver module engineered for reliable 1.25Gbps data communications over single-mode fiber. This hot-pluggable module fully complies with SFP MSA and SFF-8472 industry specifications. Operating under a single +3.3V power supply, it features a stable 1310nm FP laser transmitter and integrated digital diagnostic monitoring functions. Avaya Part NumberSFP1G-SX-31Vendor NameLINK-PP Form Factor SFP Max
