The LINK-PP LS-BL49311G-10C is a high-performance 1G BiDi SFP transceiver engineered for exceptional data communication. This single-mode optical module operates over a standard 10km distance with 1490nm-TX and 1310nm-RX wavelengths. It features a reliable simplex LC interface, comprehensive DDM support, and low power consumption, making it ideal for Gigabit Ethernet networks.
| LINK-PP Part Number | LS-BL49311G-10C | Vendor Name | LINK-PP |
| Form Factor | SFP | Max Data Rate | 1.25Gbps |
| Wavelength | 1490nm-TX/1310nm-RX | Max Cable Distance | 10km |
| Connector | Simplex LC | Media | SMF |
| Transmitter Type |
DFB | Receiver Type |
PIN |
| TX Power | -9 to 0dBm | RX Power | -23 to -1dBm |
| Receiver Sensitivity | <-23dBm | DOM Support | Yes |
| Operating Temperature Range | 0 to 70°C | Protocols |
Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
Highlighting top-tier efficiency, this 1G BiDi SFP optical transceiver delivers seamless hot-pluggable functionality and advanced DOM capabilities. The commercial-grade module ensures robust performance across 0°C to 70°C environments, maximizing your network infrastructure value while maintaining strict compliance with industry MSA standards.
Upgrade your networking architecture with the premium LINK-PP LS-BL49311G-10C optical module. This bidirectional transceiver maximizes bandwidth utilization on a single fiber strand, providing a highly cost-effective and space-saving solution for modern high-speed enterprise telecommunications.
Achieve flawless integration by pairing the LS-BL49311G-10C transceiver with your fiber media converter. This reliable 1G connectivity solution bridges copper and fiber networks effortlessly, extending your operational reach while maintaining excellent signal integrity across diverse switching environments.
Utilizing advanced WDM technology, this transceiver transmits data at 1490nm and receives at 1310nm. This precise wavelength configuration guarantees minimal signal loss, ensuring optimal bidirectional data flow when correctly paired with its corresponding 1310nm-TX counterpart.
Designed for long-reach applications, this single-mode SFP module confidently supports up to 10km transmission distances. It delivers stable and continuous gigabit networking capabilities, making it the perfect choice for expanding metropolitan area networks and campus backbones.
Featuring a standard simplex LC interface, this optical module simplifies fiber optic cabling infrastructure. The single LC connector design cuts fiber cabling requirements in half, offering a highly economical upgrade path for densely populated telecom server racks.
Equipped with advanced Digital Optical Monitoring technology, this transceiver allows network administrators to perform real-time monitoring. You can instantly track critical parameters including temperature, voltage, and laser power, ensuring proactive maintenance and preventing unexpected system downtime.
Every LINK-PP LS-BL49311G-10C 1G SFP transceiver complies strictly with MSA standards and RoHS directives, ensuring environmentally friendly manufacturing and universally accepted networking equipment integration.
We subject each LS-BL49311G-10C transceiver to a rigorous quality testing program. This comprehensive evaluation process guarantees exceptional optical performance, physical durability, and networking stability before shipment.
Backed by CE, FCC, and RoHS quality certifications, the LS-BL49311G-10C optical module meets stringent global regulatory standards, delivering secure, safe, and highly dependable telecommunication solutions.

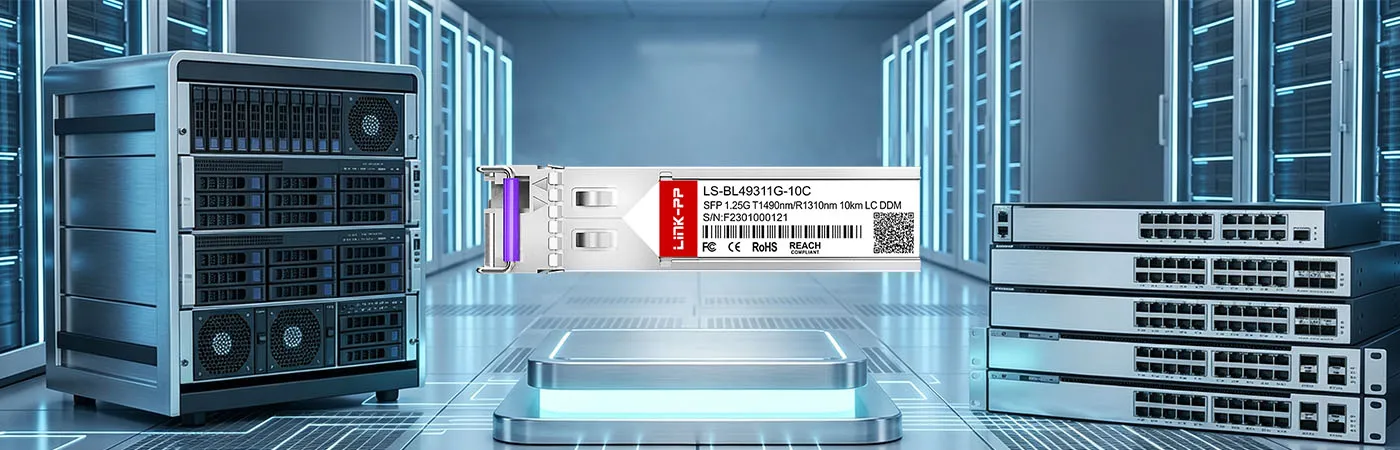

Thoroughly certified for reliable host-device compatibility, this module integrates flawlessly with major switches and routers, preventing vendor lock-in and maximizing your existing hardware investments seamlessly.
Our multi-step evaluation process involves rigorous testing to ensure reliable SFP performance, guaranteeing your network handles heavy data loads without critical failure.
Verifies precise operating wavelengths to ensure zero signal interference and maximum transmission clarity.
Evaluates signal integrity and noise margins to guarantee flawless high-speed optical data transmission.
Confirms continuous network stability by strictly maintaining an ultra-low error probability during operation.
Validates consistent commercial-grade performance across changing thermal environments from 0°C to 70°C.
Our streamlined product shipping process for the LINK-PP LS-BL49311G-10C 1G SFP guarantees your valuable networking components arrive securely and precisely on schedule.
Securely sealed in anti-static materials to completely prevent electrical discharge damage.
Buffered with robust shock-resistant materials to survive demanding physical transit conditions.
Orders are rapidly processed and dispatched to minimize your crucial network downtime.
Partnered with top couriers for reliable global logistics and rapid international delivery.
Watch our comprehensive usage demonstration to see the LINK-PP LS-BL49311G-10C in action. This guide illustrates the simple plug-and-play installation process, showing how seamlessly it connects with fiber switches and media converters for instant gigabit deployment.
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Professional technical guidance to help customers select the most suitable LS-BL49311G-10C modules based on network architecture and application requirements.
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.
15-day no-reason return and refund
Free replacement for dead-on-arrival (DOA) or defective items within the initial period
Free repair services for manufacturing defects throughout the warranty period
Warranty exclusions and conditions apply
Compatible | LINK-PP | LINK-PP | LINK-PP | LINK-PP | LINK-PP | LINK-PP |
Data Rate (Max) | 1.25Gbps | 1.25Gbps | 1.25Gbps | 1.25Gbps | 1.25Gbps | 1.25Gbps |
Wavelength | 1490nm-TX/1310nm-RX | 1490nm-TX/1310nm-RX | 1490nm-TX/1310nm-RX | 1310nm-TX/1550nm-RX | 1550nm-TX/1310nm-RX | 1310nm-TX/1550nm-RX |
Connector | Simplex LC | Simplex LC | Simplex LC | Simplex LC | Simplex LC | Simplex LC |
Cable Distance (Max) | 10km | 20km | 40km | 3km | 60km | 2km |
Cable Type | SMF | SMF | SMF | SMF | SMF | SMF |
TX Power | -9 to 0dBm | -9 to 0dBm | -5 to 0dBm | -15 to -8dBm | -5 to 0dBm | -15 to -8dBm |
Receiver Sensitivity | -23 to -1dBm | -23 to -1dBm | -23 to -1dBm | -23 to -1dBm | -23 to -1dBm | -23 to -1dBm |
Operating Temperature | 0 to 70°C | 0 to 70°C | 0 to 70°C | 0 to 70°C | 0 to 70°C | 0 to 70°C |
Form Factor | SFP | SFP | SFP | SFP | SFP | SFP |
Transmitter Type | DFB | DFB | DFB | FP | DFB | FP |
Receiver Type | PIN | PIN | PIN | PIN | PIN | PIN |
DOM Support | Yes | Yes | Yes | Yes | Yes | Yes |
Protocols | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
| Pictures | ID# | Description | Price | Stock | Add to Cart |
Q: I need to connect two campus buildings 8km apart. Can I use this transceiver with OM3 multimode fiber, or is it strictly for single-mode runs? By J***z on 2026-05-18
A: This specific 1G BiDi SFP is designed exclusively for Single-Mode Fiber (SMF) to achieve the 10km range reliably without signal degradation. Multimode fiber (like OM3) will cause severe signal dispersion at these WDM wavelengths, so SMF is absolutely required for your campus link. By admin on 2026-05-18
Q: We run a mixed environment with Cisco Catalyst and Fortinet firewalls. Will this LS-BL49311G-10C module suffer from vendor lock-in or throw unsupported transceiver errors? By S***s on 2025-09-10
A: Not at all! This 1G BiDi SFP is 100% MSA compliant and coded for broad OEM compatibility. It operates seamlessly across Cisco, Fortinet, Juniper, Broadcom, and other major switches without triggering unsupported optic warnings. By admin on 2025-09-10
Q: This module specifies a 0 to 70°C operating temperature. Do you have an industrial-grade equivalent for our unventilated outdoor cellular base station cabinets? By K***l on 2025-05-01
A: Yes, if your outdoor deployment exceeds the 70°C commercial limit, we highly recommend the LS-BL49311G-10I model. It is the industrial wide-temperature counterpart built specifically to withstand extreme freezing or high-heat environments for base station backhaul. By admin on 2025-05-01
Q: Our state government contract requires all network hardware to strictly adhere to industry standards. Is this optical transceiver certified? By E***e on 2025-04-03
A: Yes, it strictly complies with the Multi-Source Agreement (MSA), Fast Ethernet, and Gigabit Fibre Channel standards. You can confidently deploy it in telecom, enterprise, and government networks requiring high-compliance hardware. By admin on 2025-04-03
