The LINK-PP LS-BL31551G-03I is a robust industrial-grade 1G BiDi SFP optical transceiver designed for high-performance Gigabit Ethernet connectivity. Utilizing WDM technology, this single-mode module transmits at a 1310nm wavelength and receives at 1550nm over a simplex LC interface. It features a reliable FP laser, guaranteeing exceptional stability across extended temperature ranges for demanding 3km networking applications.
| LINK-PP Part Number | LS-BL31551G-03I | Vendor Name | LINK-PP |
| Form Factor | SFP | Max Data Rate | 1.25Gbps |
| Wavelength | 1310nm-TX/1550nm-RX | Max Cable Distance | 3km |
| Connector | Simplex LC | Media | SMF |
| Transmitter Type | FP | Receiver Type |
PIN |
| TX Power | -15 to -8dBm | RX Power | -23 to -1dBm |
| Receiver Sensitivity | <-23dBm | DOM Support | Yes |
| Operating Temperature Range | -40 to 85°C | Protocols |
Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
Discover the exceptional capabilities of the LINK-PP LS-BL31551G-03I 1G BiDi SFP transceiver. This hot-pluggable module features an industrial operating temperature range from -40°C to 85°C. By leveraging a high-quality FP laser and single-fiber bidirectional transmission, it drastically reduces infrastructure costs while maximizing network efficiency.
The LINK-PP LS-BL31551G-03I 1G BiDi SFP optical module provides seamless integration for modern telecom infrastructures. Engineered for reliability, this robust transceiver ensures uninterrupted gigabit data transmission, making it an essential component for upgrading enterprise networks and data centers.
Designed for harsh environments, the LS-BL31551G-03I delivers ultra-reliable 1G connectivity for Industrial IoT applications. Its rugged construction perfectly supports smart grids, outdoor surveillance systems, and factory automation networks operating under extreme environmental conditions.
Operating with advanced WDM technology, the LS-BL31551G-03I module utilizes a 1310nm-TX FP laser alongside a 1550nm-RX PIN photodetector. This optimized wavelength pairing ensures superior signal integrity and minimizes chromatic dispersion throughout your single-mode fiber optic link.
Optimize your short-haul communication links with the LS-BL31551G-03I module supporting 3km transmission. This cost-effective solution effortlessly bridges connections across campuses and industrial facilities, guaranteeing stable and rapid data delivery over 9/125µm single-mode fiber infrastructure.
Simplify your cabling architecture using the LS-BL31551G-03I module with simplex LC interface. By enabling bidirectional communication over a single fiber strand, this compact optical connector doubles your existing network capacity while significantly reducing overall fiber optic cabling expenses.
Enhance your network management capabilities with the LS-BL31551G-03I module with DOM for real-time monitoring. This digital diagnostic function allows administrators to accurately track transceiver temperature, voltage, laser bias current, and optical power for proactive system maintenance.
Every LINK-PP LS-BL31551G-03I 1G SFP transceiver undergoes strict validation to meet comprehensive global standards. These robust compliance measures ensure unparalleled safety, environmental responsibility, and excellent networking performance.
Our exhaustive LS-BL31551G-03I quality testing program meticulously evaluates each transceiver. From strict material selection to final inspection, we guarantee consistent high-speed transmission and exceptional industrial operational reliability.
Complying with SFP MSA, IEEE 802.3z, and RoHS regulations, the trusted LS-BL31551G-03I quality certifications highlight our dedication to producing eco-friendly, fully standardized, and laser-safe Class 1 optical modules.

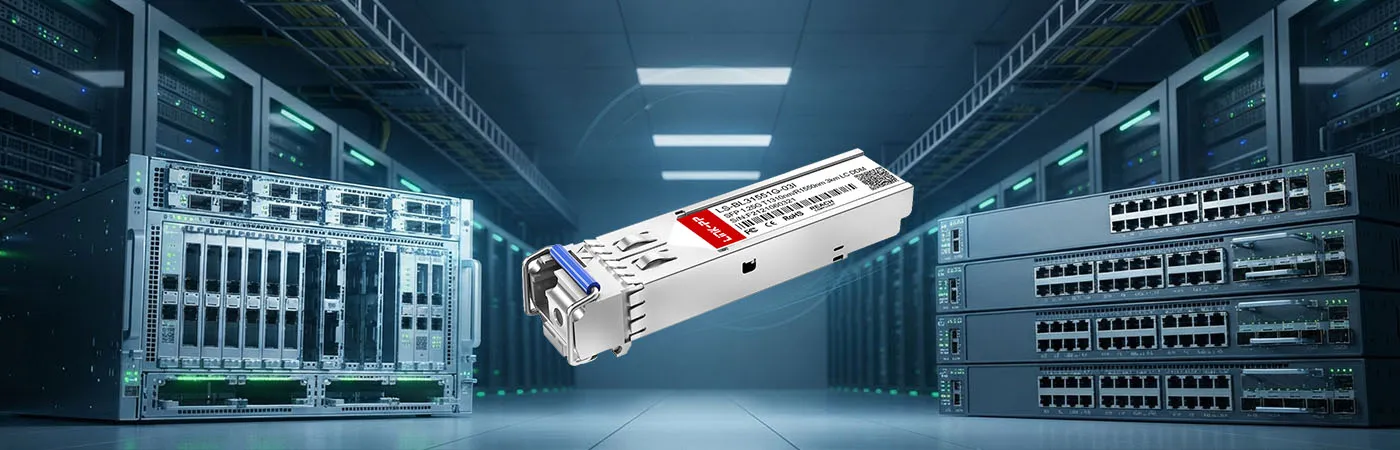

The LS-BL31551G-03I is extensively certified for reliable host-device compatibility. It works flawlessly across various branded industrial switches and routers, preventing vendor lock-in and minimizing unexpected network downtime.
Advanced laboratory diagnostics and continuous manufacturing inspections ensure our optical transceivers deliver maximum uptime and flawlessly handle demanding industrial networking requirements.
This crucial evaluation verifies the precise 1310nm center wavelength of the internal FP laser.
Engineers perform critical eye diagram measurements to guarantee superior Gigabit Ethernet signal transmission quality.
Comprehensive traffic simulations confirm error-free data packet delivery over the entire 3km fiber link.
Extreme thermal cycling ensures steadfast module functionality from freezing -40°C up to scorching 85°C.
We maintain highly optimized inventory logistics to guarantee your essential optical networking equipment arrives securely and promptly at your facility.
Specialized ESD shielding bags completely prevent internal electronic component damage during transit.
Durable customized foam trays safely cushion each individual module against physical impacts.
Streamlined warehouse operations ensure same-day dispatch for all available networking stock.
Trusted worldwide courier partnerships guarantee fast, traceable shipping to international destinations.

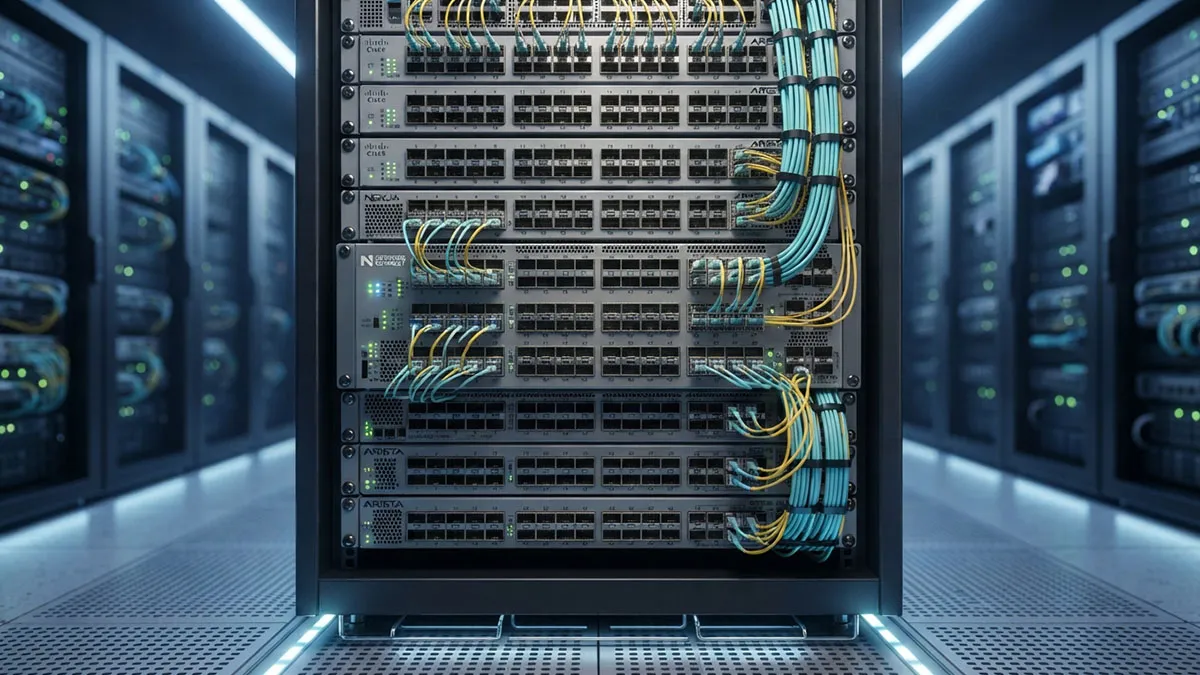

Deploying the module is effortless thanks to its hot-pluggable design. Simply insert the transceiver into any compliant industrial switch port, connect your simplex LC fiber patch cord, and immediately establish a secure, high-speed 1G single-mode fiber network.
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Professional technical guidance to help customers select the most suitable LS-BL31551G-03I modules based on network architecture and application requirements.
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.
15-day no-reason return and refund
Free replacement for dead-on-arrival (DOA) or defective items within the initial period
Free repair services for manufacturing defects throughout the warranty period
Warranty exclusions and conditions apply
Compatible | LINK-PP | LINK-PP | LINK-PP | LINK-PP | LINK-PP | LINK-PP |
Data Rate (Max) | 1.25Gbps | 1.25Gbps | 1.25Gbps | 1.25Gbps | 1.25Gbps | 1.25Gbps |
Wavelength | 1310nm-TX/1550nm-RX | 1310nm-TX/1550nm-RX | 1310nm-TX/1550nm-RX | 1310nm-TX/1550nm-RX | 1310nm-TX/1550nm-RX | 1310nm-TX/1550nm-RX |
Connector | Simplex LC | Simplex LC | Simplex LC | Simplex LC | Simplex LC | Simplex LC |
Cable Distance (Max) | 3km | 2km | 60km | 40km | 20km | 10km |
Cable Type | SMF | SMF | SMF | SMF | SMF | SMF |
TX Power | -15 to -8dBm | -15 to -8dBm | -5 to 0dBm | -5 to 0dBm | -9 to 0dBm | -9 to 0dBm |
Receiver Sensitivity | -23 to -1dBm | -23 to -1dBm | -23 to -1dBm | -23 to -1dBm | -23 to -1dBm | -23 to -1dBm |
Operating Temperature | -40 to 85°C | 0 to 70°C | -40 to 85°C | -40 to 85°C | -40 to 85°C | -40 to 85°C |
Form Factor | SFP | SFP | SFP | SFP | SFP | SFP |
Transmitter Type | FP | FP | DFB | DFB | FP | FP |
Receiver Type | PIN | PIN | PIN | PIN | PIN | PIN |
DOM Support | Yes | Yes | Yes | Yes | Yes | |
Protocols | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
| Pictures | ID# | Description | Price | Stock | Add to Cart |
Q: I'm planning a large campus fiber rollout and need about 500 units. Do you guys offer volume discounts for enterprise procurement? By P***z on 2026-05-01
A: Yes, we do! For bulk deployments, we offer tiered wholesale pricing. Ordering over 100 units significantly drops the unit cost, driving down your overall budget. Reach out to our sales team directly for a customized quote on your 500-unit batch. By admin on 2026-05-01
Q: Are these transceivers compliant with standard telecom protocols? We need them for Gigabit Ethernet and Fibre Channel applications. By M***z on 2025-11-18
A: Yes. The module complies natively with the Gigabit Ethernet standard (1.25Gbps) as well as 1G Fibre Channel specifications. It meets RoHS requirements and strictly follows the SFP Multi-Source Agreement (MSA) for universal industry compliance. By admin on 2025-11-19
Q: Does this module require single-mode or multi-mode fiber? And what connector type do I need to patch it into my switches? By J***n on 2025-09-17
A: This specific module requires standard 9/125碌m Single-Mode Fiber (SMF) to achieve the full 3km distance. Since it is a BiDi transceiver transmitting at 1310nm-TX and receiving at 1550nm-RX simultaneously, you will need a Simplex LC fiber patch cable to connect it. By admin on 2025-09-17
Q: We use a mix of Cisco Catalyst and Ubiquiti EdgeSwitches in our network. Will these 1G BiDi modules work across different OEM brands without throwing unsupported errors? By C***z on 2025-07-03
A: Absolutely. The LS-BL31551G-03I is fully MSA compliant and extensively tested for multi-brand interoperability. It acts as a perfect Cisco compatible SFP and works flawlessly with Ubiquiti, Juniper, and other major switch brands right out of the box without any command-line workarounds. By admin on 2025-07-03
