The LINK-PP LS-BL31491G-40I 1G SFP is a high-performance single-mode BiDi transceiver designed for long-haul Gigabit Ethernet applications. Engineered to meet strict industrial standards, this optical transceiver combines a 1310nm DFB transmitter and a 1490nm PIN receiver over a single fiber, delivering a robust 1.25 Gbps data rate and an exceptional 40km link budget for critical network deployments.
| LINK-PP Part Number | LS-BL31491G-40I | Vendor Name | LINK-PP |
| Form Factor | SFP | Max Data Rate | 1.25Gbps |
| Wavelength | 1310nm-TX/1490nm-RX | Max Cable Distance | 40km |
| Connector | Simplex LC | Media | SMF |
| Transmitter Type | DFB | Receiver Type |
PIN |
| TX Power | -5 to 0dBm | RX Power | -23 to -1dBm |
| Receiver Sensitivity | <-24dBm | DOM Support | Yes |
| Operating Temperature Range | -40 to 85°C | Protocols |
Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
This industrial-grade fiber transceiver delivers unmatched network efficiency and longevity. It integrates advanced WDM technology, hot-pluggable SFP form factor, low power consumption, and digital diagnostics to ensure seamless network integration. Its premium DFB laser and highly sensitive PIN photodiode provide robust single-fiber bidirectional data transmission in harsh outdoor conditions.
The LINK-PP LS-BL31491G-40I 1G SFP optical module provides an efficient single-strand fiber solution. This hot-swappable 1Gbps mini-GBIC optical transceiver maximizes bandwidth utilization while drastically reducing cable infrastructure costs in enterprise and telecom networks.
Built for extreme environments, the LS-BL31491G-40I delivers hardened 1G connectivity for Industrial Ethernet. It operates reliably from -40°C to 85°C, making it ideal for smart grids, transportation, and rugged automation systems.
Featuring a BiDi WDM design, the LS-BL31491G-40I module utilizes a 1310nm-TX DFB laser and a 1490nm-RX PIN receiver. This wavelength combination ensures interference-free, high-speed single-fiber bidirectional communication when paired with its complementary module.
The LS-BL31491G-40I module supports long-range 40km transmission over single-mode fiber (SMF). Its powerful optical link budget effortlessly overcomes fiber attenuation, making it perfect for regional backhaul and metro-access networks.
Equipped with a secure simplex LC interface, the LS-BL31491G-40I module enables high-density fiber patching. This single LC optical connector optimizes port utilization on switches and routers while simplifying overall cable management.
The LS-BL31491G-40I module features built-in DOM (Digital Optical Monitoring). Network administrators can track real-time metrics like operating temperature, laser bias current, and TX/RX optical power levels to prevent unexpected downtime.
The LINK-PP LS-BL31491G-40I 1G SFP undergoes exhaustive regulatory certification. It adheres strictly to global safety and environmental standards, ensuring a sustainable, top-tier network component.
The comprehensive LS-BL31491G-40I quality testing program guarantees zero-defect performance. Each SFP module undergoes rigorous automated hardware verification before leaving the manufacturing facility.
Backed by industry-leading quality certifications, the LS-BL31491G-40I complies fully with CE, FCC, RoHS, and MSA standards, ensuring long-term operational safety and regulatory alignment.

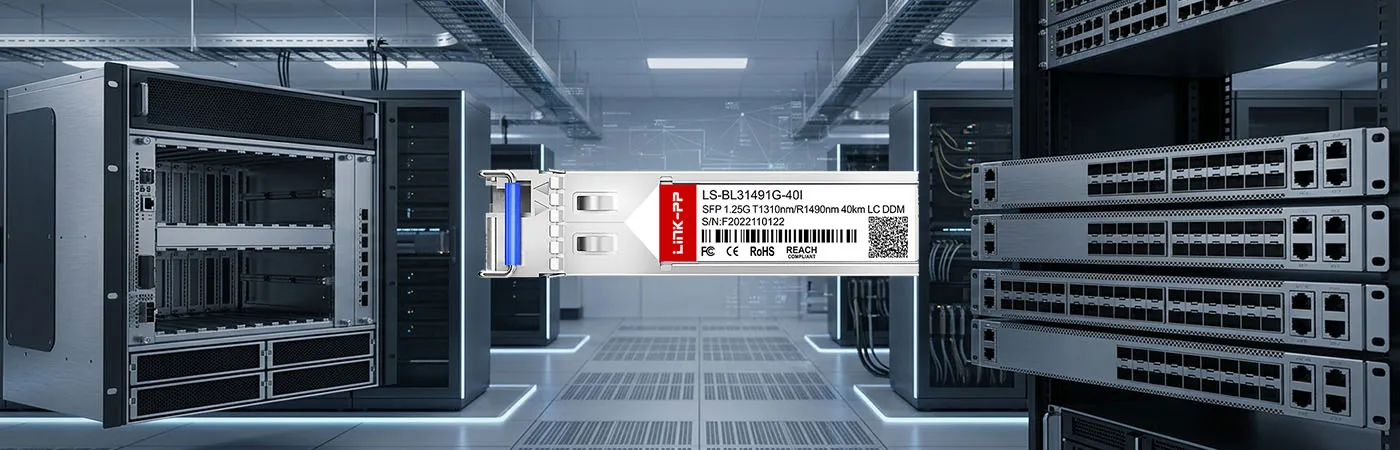

The LS-BL31491G-40I is certified for multi-vendor compatibility. It is extensively EEPROM-tested to ensure flawless, plug-and-play integration with major switches, routers, and media converters.
Every single transceiver undergoes strict multi-stage validation. This comprehensive testing ensures excellent signal integrity, low latency, and rock-solid network stability.
Advanced spectrum analysis verifies the 1310nm DFB laser wavelength, central frequency, and side-mode suppression ratio.
High-speed oscilloscope testing assesses the optical eye diagram to ensure clear signals and minimal jitter.
The BERT procedure validates packet transmission accuracy, guaranteeing error-free 1.25 Gbps throughput across 40km.
Environmental chamber cycling tests full functionality across the entire -40°C to 85°C industrial temperature range.
Our optimized global shipping workflow ensures your optical transceivers arrive safely, securely, and completely on schedule, ready for immediate field deployment.
Each SFP module is sealed in premium ESD anti-static packaging.
Cushioned, impact-resistant outer boxes safeguard the delicate internal optics during transit.
Streamlined warehouse logistics ensure rapid order processing and immediate shipment dispatch.
Reliable international freight networks guarantee secure, tracked delivery to your global facility.

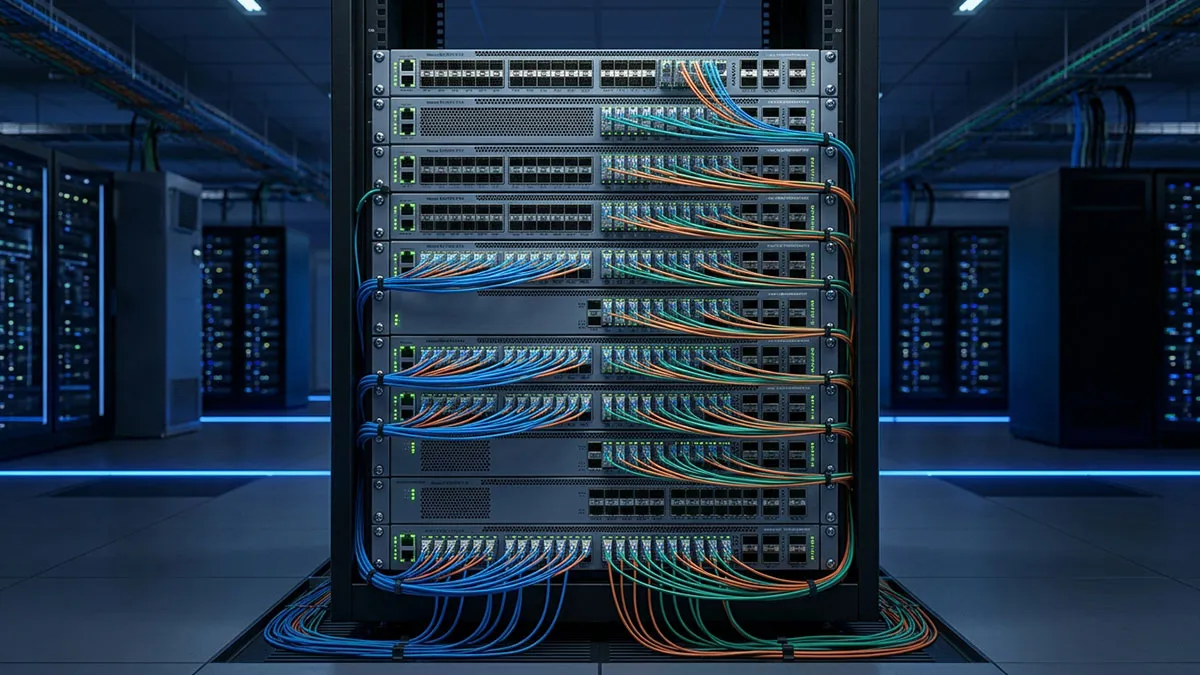

This demonstration highlights how to install the LINK-PP LS-BL31491G-40I 1G SFP. Slide the module into an industrial switch SFP slot until it clicks, attach the simplex LC single-mode fiber patch cord, and monitor active link status via DOM.
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Professional technical guidance to help customers select the most suitable LS-BL31491G-40I modules based on network architecture and application requirements.
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.
15-day no-reason return and refund
Free replacement for dead-on-arrival (DOA) or defective items within the initial period
Free repair services for manufacturing defects throughout the warranty period
Warranty exclusions and conditions apply
Compatible | LINK-PP | LINK-PP | LINK-PP | LINK-PP | LINK-PP | LINK-PP |
Data Rate (Max) | 1.25Gbps | 1.25Gbps | 1.25Gbps | 1.25Gbps | 1.25Gbps | 1.25Gbps |
Wavelength | 1310nm-TX/1490nm-RX | 1310nm-TX/1490nm-RX | 1550nm-TX/1310nm-RX | 1310nm-TX/1490nm-RX | 1550nm-TX/1310nm-RX | 1310nm-TX/1550nm-RX |
Connector | Simplex LC | Simplex LC | Simplex LC | Simplex LC | Simplex LC | Simplex LC |
Cable Distance (Max) | 40km | 10km | 60km | 20km | 3km | 15km |
Cable Type | SMF | SMF | SMF | SMF | SMF | SMF |
TX Power | -5 to 0dBm | -9 to 0dBm | -5 to 0dBm | -9 to 0dBm | -15 to -8dBm | -5 to 0dBm |
Receiver Sensitivity | -23 to -1dBm | -23 to -1dBm | -23 to -1dBm | -23 to -1dBm | -23 to -1dBm | -23 to -1dBm |
Operating Temperature | -40 to 85°C | -40 to 85°C | -40 to 85°C | -40 to 85°C | -40 to 85°C | 0 to 70°C |
Form Factor | SFP | SFP | SFP | SFP | SFP | SFP |
Transmitter Type | DFB | FP | DFB | FP | FP | FP |
Receiver Type | PIN | PIN | PIN | PIN | PIN | PIN |
DOM Support | Yes | Yes | Yes | Yes | Yes | |
Protocols | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
| Pictures | ID# | Description | Price | Stock | Add to Cart |
Q: Will this 1G BiDi module play nice with a mix of Cisco Catalyst and Ubiquiti EdgeSwitches? By C***s on 2026-05-12
A: Absolutely! The LS-BL31491G-40I is 100% MSA compliant. We've extensively tested it for cross-brand interoperability, so you can seamlessly link your Cisco and Ubiquiti gear without throwing any frustrating "unsupported transceiver" errors. By admin on 2026-05-13
Q: We have outdoor telecom enclosures that hit 80°C in the summer and -30°C in winter. Can this optic survive without active cooling? By J***z on 2025-10-01
A: Definitely. This is a true industrial-grade module specifically engineered for extreme outdoor environments. It supports a wide operating temperature range of -40°C to 85°C, making it perfect for unventilated cabinets and harsh cell tower deployments. By admin on 2025-10-01
Q: We're looking to deploy about 300 of these for a city-wide campus network. Do you guys offer any volume discounts? By D***z on 2025-08-01
A: Yes, we provide tiered pricing for bulk rollouts! For a procurement batch of 300 units, you'll see a significant drop in the per-unit cost. Just hit up our sales team via live chat or email to get a custom wholesale quote. By admin on 2025-08-01
Q: Does this transceiver support standard DDM/DOM for SNMP monitoring? Need to ensure it meets our data center compliance. By S***r on 2025-06-25
A: Yes, it fully supports DDM (Digital Diagnostic Monitoring) per the SFF-8472 standard. Your network management system can easily pull real-time data on optical TX/RX power, voltage, and laser temperature via SNMP to maintain industry compliance. By admin on 2025-06-25
