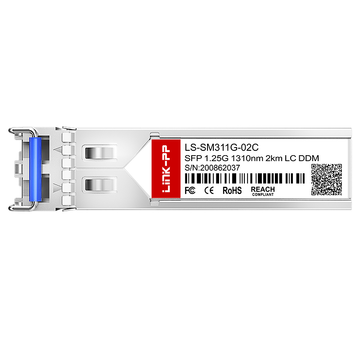

The LINK-PP LS-SM311G-02C is a high-performance Small Form-factor Pluggable (SFP) transceiver module engineered for reliable 1.25Gbps data communications over single-mode fiber. This hot-pluggable module fully complies with SFP MSA and SFF-8472 industry specifications. Operating under a single +3.3V power supply, it features a stable 1310nm FP laser transmitter and integrated digital diagnostic monitoring functions.
| LINK-PP Part Number | LS-SM311G-02C | Vendor Name | LINK-PP |
| Form Factor | SFP | Max Data Rate | 1.25Gbps |
| Wavelength | 1310nm | Max Cable Distance | 2km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | FP | Receiver Type |
PIN |
| TX Power | -12 to -3dBm | RX Power | -23 to -1dBm |
| Receiver Sensitivity | <-23dBm | DOM Support | Yes |
| Operating Temperature Range | 0 to 70°C | Protocols |
SFF-8472 MSA Compliant, IEEE 802.3ah-2004 |
The LINK-PP LS-SM311G-02C transceiver incorporates cutting-edge technology to provide superior, robust networking capabilities. This module delivers high efficiency, hot-swappable convenience, and precise real-time system tracking. It serves as a dependable, compact hardware solution for various modern high-speed telecommunication architectures and enterprise network applications.
The LS-SM311G-02C optical module features a hot-pluggable SFP footprint for rapid field deployments. It integrates a reliable 1310nm FP laser transmitter and a PIN photodetector preamplifier to satisfy Class I laser safety regulations.
Specifically designed for high-speed storage area networks, the LS-SM311G-02C provides stable 1G optical connectivity. It is perfectly optimized for 1.063Gbps Fiber Channel applications, ensuring highly efficient and continuous data transfers.
Operating at a precise 1310nm center wavelength, this SFP transceiver utilizes its integrated FP laser transmitter to minimize dispersion. The 1310nm optical window delivers excellent signal performance across single-mode fiber infrastructure.
By utilizing premium single-mode fiber (SMF), the LS-SM311G-02C module extends your network reach up to 2km. This long-distance capability is highly ideal for interconnecting localized enterprise switches and telecom equipment.
Equipped with an industry-standard duplex LC receptacle connector, the module guarantees exceptional structural connection reliability. The compact LC interface maximizes patch panel space efficiency and facilitates clean fiber cable management.
Featuring advanced Digital Diagnostic Monitoring (DOM), this SFP allows real-time monitoring through a 2-wire interface. Network operators can easily track critical metrics, including module temperature, voltage, and optical transceiver power.
The LINK-PP LS-SM311G-02C undergoes strict standardization and regulatory assessments to guarantee compliance with international electronic, environmental, and network safety parameters. These rigorous certifications assure enterprise clients of premium hardware safety and absolute manufacturing integrity.
The LS-SM311G-02C undergoes a rigorous quality testing program. We strictly evaluate every module's electrical and optical characteristics to ensure complete adherence to professional networking requirements.
Manufactured with strict safety awareness, the LS-SM311G-02C transceiver complies with RoHS standards. It is fully certified under Class I laser safety guidelines and carries international market marks.
Built to meet SFP Single-Source Agreements, the LS-SM311G-02C ensures widespread hardware integration. It is certified for seamless plug-and-play compatibility across global switches, routers, and host network devices.
LINK-PP subjects the LS-SM311G-02C to thorough quality assurance protocols, verifying that every single component delivers absolute stability and elite performance.
Precise spectrum analyzers monitor the 1310nm FP laser to verify excellent center wavelength stability.
Automated eye pattern analysis validates clean optical waveforms, transmitter timing, and excellent extinction ratios.
Modules undergo rigorous data stress testing to confirm flawless data reception sensitivity down to -23dBm.
Thermal chambers guarantee stable transceiver functionality across the entire standard 0°C to 70°C case range.
Our optimized shipping system ensures that the LS-SM311G-02C arrives at your facility quickly, safely, and in perfect operational condition.
Each SFP module is safely enclosed within a specialized anti-static ESD shield bag.
Custom-molded, shock-resistant padding safeguards the delicate optical interfaces against heavy transport impacts.
Orders are quickly processed through our automated warehouse systems to ensure immediate dispatch.
We leverage premier international shipping carriers to provide fast, reliable worldwide delivery.
To connect your hardware, simply slide the hot-pluggable LS-SM311G-02C directly into an active SFP port on your switch. Remove the dust plug and attach a duplex LC single-mode fiber patch cord to establish an immediate 1.25Gbps link.
LINK-PP provides professional technical support, including pre-sales consultation, compatibility verification, and post-deployment troubleshooting to ensure smooth network operation.
Professional technical guidance to help customers select the most suitable LS-SM311G-02C modules based on network architecture and application requirements.
Compatibility checks and validation to ensure seamless operation with Cisco switches and other supported networking platforms.
Step-by-step support for installation, configuration, and initial deployment to ensure stable and correct operation.
Ongoing technical support throughout the product lifecycle to ensure reliable performance in enterprise and carrier-grade networks.
LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.
15-day no-reason return and refund
Free replacement for dead-on-arrival (DOA) or defective items within the initial period
Free repair services for manufacturing defects throughout the warranty period
Warranty exclusions and conditions apply
Find quick answers below regarding the specifications of this 1.25G SFP transceiver.
Compatible | LINK-PP | LINK-PP | LINK-PP | LINK-PP | LINK-PP |
Data Rate (Max) | 1.25Gbps | 1.25Gbps | 1.25Gbps | 1.25Gbps | 1.25Gbps |
Wavelength | 1310nm | 1310nm | 1310nm | 850nm | 850nm |
Connector | Duplex LC | Duplex LC | Duplex LC | Duplex LC | Duplex LC |
Cable Distance (Max) | 2km | 2km | 2km | 2km | 2km |
Cable Type | SMF | MMF | MMF | MMF | MMF |
TX Power | -12 to -3dBm | -12 to -3dBm | -12 to -3dBm | -9 to 0dBm | -9 to 0dBm |
Receiver Sensitivity | -23 to -1dBm | -30dBm | -30dBm | -18dBm | -18dBm |
Operating Temperature | 0 to 70°C | 0 to 70°C | -40 to 85°C | 0 to 70°C | -40 to 85°C |
Form Factor | SFP | SFP | SFP | SFP | SFP |
Transmitter Type | FP | FP | FP | VSCEL | VSCEL |
Receiver Type | PIN | PIN | PIN | PIN | PIN |
DOM Support | Yes | Yes | Yes | Yes | |
Protocols | SFF-8472 MSA Compliant, IEEE 802.3ah-2004 | SFF-8472 MSA IEEE 802.3 | SFF-8472 MSA IEEE 802.3 | IEEE 802.3z, SFF-8472, FC-PI, SFP MSA (INF-8074i) Compliant | IEEE 802.3z, SFF-8472, FC-PI, SFP MSA (INF-8074i) Compliant |
| Pictures | ID# | Description | Price | Stock | Add to Cart |
Q: Aside from standard Gigabit Ethernet, can we use this SFP module for our Storage Area Network (SAN) upgrade? By D***z on 2026-05-09
A: Yes! Besides standard IEEE 802.3ah-2004 for Gigabit Ethernet, this module fully supports 1.063Gbps Fiber Channel protocols, making it a highly reliable and cost-effective solution for upgrading enterprise SANs and NAS storage environments. By admin on 2026-05-10
Q: We use a mix of Cisco Catalyst and Dell switches in our racks. Will this 1.25G SFP module work seamlessly across different brands? By C***t on 2026-01-30
A: Yes! The LS-SM311G-02C is fully SFF-8472 MSA compliant and features broad OEM compatibility. It has been strictly tested by our engineers to work perfectly with Cisco, Dell, Juniper, Arista, and other major switch brands without throwing any protocol errors. By admin on 2026-01-30
Q: We are planning to use these in an outdoor cabinet for a base station backhaul. Does this commercial 0-70°C version work, or do you have an industrial wide-temperature option? By J***n on 2025-12-29
A: For outdoor cabinets, we highly recommend our industrial version, the LS-SM311G-02I, which supports extreme temperatures from -40°C to 85°C. This commercial LS-SM311G-02C model (0 to 70°C) is specifically designed for indoor data centers, campus LANs, and enterprise server rooms. By admin on 2025-12-29
Q: To reach the maximum 2km transmission distance, what exact type of fiber optic patch cables should we purchase? By M***s on 2025-10-19
A: To achieve the full 2km link safely, you need standard Single-Mode Fiber (SMF) with Duplex LC connectors. Ensure your patch cables match the 1310nm wavelength and 9/125µm core size for optimal Tx/Rx optical power performance. By admin on 2025-10-19
