LP24AC02001 sfp 2x4 cage assembly with integrated connector press-fit with emi spring finger
Click to open expanded view

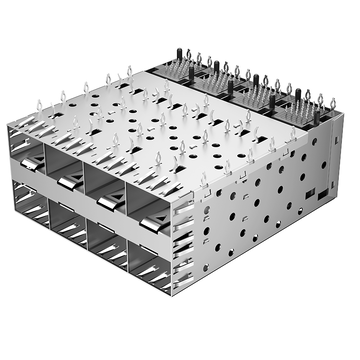

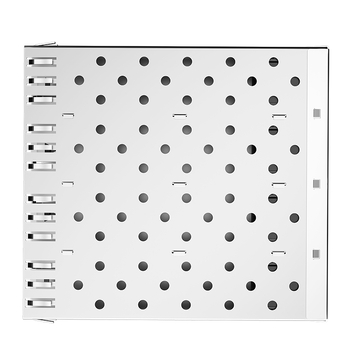

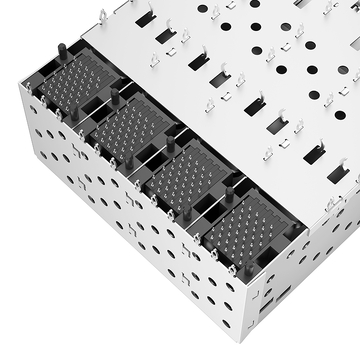

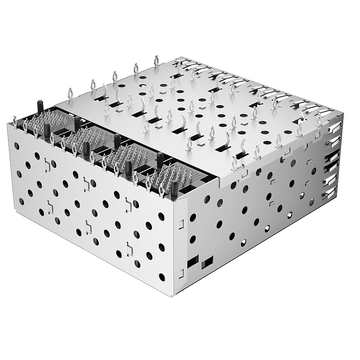

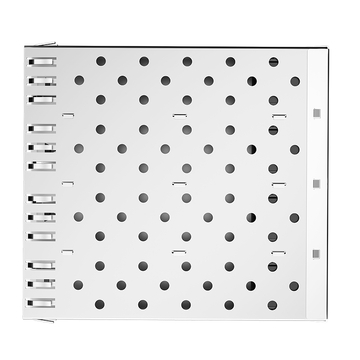

LP24AC02001 SFP 2x4 Cage Assembly With Integrated Connector Press-Fit With EMI Spring Finger

Product summary

Product
LP24AC02001 SFP 2x4 Cage Assembly With Integrated Connector Press-Fit With EMI Spring Finger
SKU
197793
P/N
LP24AC02001
Price
$ 11.27
Stock
900 in Stock
Sold
2.1K
Unit price $ 11.27
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP24AC02001SKU: 197793

LINK-PP originalDatasheetAll downloads

Compatible:
TE
LINK-PP
Compatible P/N:
LP24AC02001
Volume pricing Online tiers · larger qty or custom price on request
$ 11.270
1–99 pcs
$ 9.657
100–999 pcs
$ 8.450
1,000–4,999 pcs
$ 8.028
5,000–9,999 pcs
$ 7.605
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
900 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 11.27

LINK-PP LP24AC02001 SFP 2x4 Cage Assembly With Integrated Connector Press-Fit With EMI Spring Finger

LINK-PP Part Number LP24AC02001 Part Status Active
Product Type Cage Assembly with Integrated Connector Form Factor SFP
Max Data Rate 4 Gbps Features EMI Shielded
Port Matrix Configuration 2×4 Number of Ports 8
Included Connector Yes Included Heat Sink No
Included Lightpipe No EMI Containment Feature Type Spring Fingers
Termination Press-Fit Mounting Type Through Hole, Right Angle
Tail Length (Inches/mm) 0.106/2.70 Recommended PCB Thickness (Inches/mm) 0.093/2.36
Length (Inches/mm) 2.490/63.25 (REF) Width (Inches/mm) 2.254/57.25 (REF)
Height (Inches/mm) 1.016/25.80 (REF) Cage Material Stainless Steel
Contact Plating Gold Cage Plating Nickel
Operating Temperature Range -40 to +85°C Packaging Tray

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP24AC02001.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The rating covers the temperature, not the weather. The cage is passive metal, so condensation and dust are the real risks: use a sealed or filtered enclosure and keep the frame above the dew point during cold starts. We run these in roadside cabinets at -22C with no failures, and every one of those boxes has a filter and a heater on the door. by LINK-PP Technical Support
  • A:
    Use a board level light guide, because a pipe cannot be added to this cage later. The guide mounts behind the cage and carries the light from the board footprint to the front panel. Plan it at layout: it needs clearance under the 25.50mm body, and the LED must sit within about 0.3mm of the drawing position. Check one assembled card under power before the run. by LINK-PP Technical Support
  • A:
    The cage is the SFP form factor and the page does not publish a data rate for it, because the rate belongs to the module. A 10G SFP+ module will physically seat, but for 10G service order the SFP+ rated cage: the spring and heat path are specified for the higher rate. Match the cage to the module class you will run, and keep one part number per rate on the board. by LINK-PP Technical Support
  • A:
    Keep the finished hole at the nominal in the drawing plus or minus 0.05mm, and support the board on a flat plate across the full 63.25mm before you press. Pressing with no backing bows the middle of the frame and lifts the inner rows. Set force on the first frame, record the peak, then check height at both ends after any setup change. by LINK-PP Technical Support

Customer Reviews

  • 5

    49 Reviews

  • 5 Stars
    98%
    4 Stars
    2%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (49)
No data
L***d
Indonesia
Verified Purchase
5.0
2026-11-07
Eight SFP ports on one frame, no light pipe, press-fit, and a copper alloy shell that has not gone soft in four years of use. It has become our default for multi-port SFP cards :D
H***n
Philippines
Verified Purchase
5.0
2026-10-08
This version ships without a pipe, which means the LED status is not visible at the faceplate. We route a light guide from the board instead; on the two cards where nobody reads LEDs, the savings paid for the guide.
R***t
France
Verified Purchase
4.0
2026-09-09
Docking one star: the carton arrived without port numbering, so we pressed two frames with the rows swapped and had to redo the bezel labels. Both frames pressed flat and all eight ports took a module.
F***m
Brazil
Verified Purchase
5.0
2026-08-10
Eight ports on one frame, one cutout, one press cycle.
J***n
Mexico
Verified Purchase
5.0
2026-07-11
Copper alloy cage with 30 microinch minimum nickel plating is what holds the spring fingers at tension over hundreds of insertions. We compared a tin plated cage from another supplier and the insertion force dropped 30 percent after 200 cycles.
