Need a qty beyond these tiers, or to negotiate price?

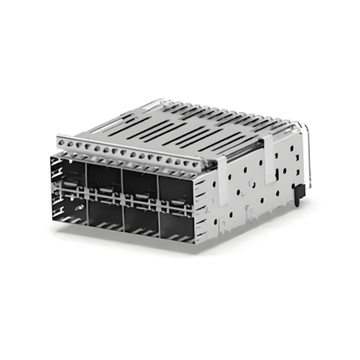

| TE Part Number | 1658758-3 | Part Status | Active |
| Product Type | Receptacle with Cage Ganged (2x4) | Form Factor | SFP |
| Mounting Type | Through Hole, Right Angle | Termination | Press-Fit |
| Features | EMI Shielded | Cage Type | Stacked |
| Pluggable I/O Product Type | Cage Assembly with Integrated Connector | Sealable | No |
| Port Matrix Configuration | 2x4 Ports | Number of Ports | 8 |
| Data Rate (Max) (Gb/s) | 4 | Contact Current Rating (Max) (A) | .5mm |
| Termination Method to PCB | Through Hole - Press-Fit | Cage Material | Nickel Silver |
| Centerline (Pitch) | .8mm | Operating Temperature Range | -55 – 105 °C |
| Heat Sink Compatible | - | Circuit Application | Signal |
| Included Lightpipe | Yes | EMI Containment Feature Type | Internal/External EMI Springs |
Product Type | Receptacle with Cage Ganged (2x4) | Receptacle with Cage, Ganged (2x4) | Receptacle with Cage, Ganged (2x4) | Receptacle with Cage, Ganged (2x4) | Receptacle with Cage, Ganged (2x4) | Receptacle with Cage, Ganged (2x4) |
Form Factor | SFP | SFP | SFP | SFP | SFP | SFP |
Max Data Rate | 4Gb/s | - | - | - | - | - |
Features | EMI Shielded | Internal/External EMI Springs | Internal/External EMI Springs | EMI Shielded | Internal/External EMI Springs | EMI Shielded |
Port Matrix Configuration | 2x4 Ports | 2x4 Ports | 2x4 Ports | 2x4 Ports | 2x4 Ports | 2x4 Port |
Number of Ports | 8 | 8 | 8 | 8 | 8 | - |
Included Connector | Cage Assembly with Integrated Connector | Cage | Cage | Cage Assembly with Integrated Connector | Cage Assembly with Integrated Connector | Cage Assembly with Integrated Connector |
Included Heat Sink | - | - | - | - | - | - |
Included Lightpipe | Yes | Without LightPipe | Without LightPipe | With Inner/Outer LightPipe | Without LightPipe | No |
Termination | Press-Fit | Through Hole - Press-Fit | Through Hole - Press-Fit | Press-Fit | Through Hole - Press-Fit | Press-Fit |
Tail Length (Inches/mm) | - | - | - | - | - | - |
Recommended PCB Thickness (Inches/mm) | - | - | - | 2.36mm( .093 Inch) | - | - |
Length (Inches/mm) | - | 2.490/63.25 | 2.490/63.25 | 2.490/63.25 | 2.490/63.25 | - |
Width (Inches/mm) | - | - | - | - | - | - |
Height (Inches/mm) | - | 1.004/25.50 | 1.004/25.50 | 1.004/25.50 | 1.004/25.50 | - |
Cage Material | Nickel Silver | COPPER ALLOY 30u”MIN NI- PL ATED | COPPER ALLOY 30u”MIN NI- PL ATED | - | - | - |
Operating Temperature Range | -55 – 105 | -40 – 85 | -40 – 85 | -40 – 85 | -40 – 85 | - |
