LP24AC01201 sfp 2x4 cage assembly with integrated connector with inner light pipe emi spring finger press-fit through hole

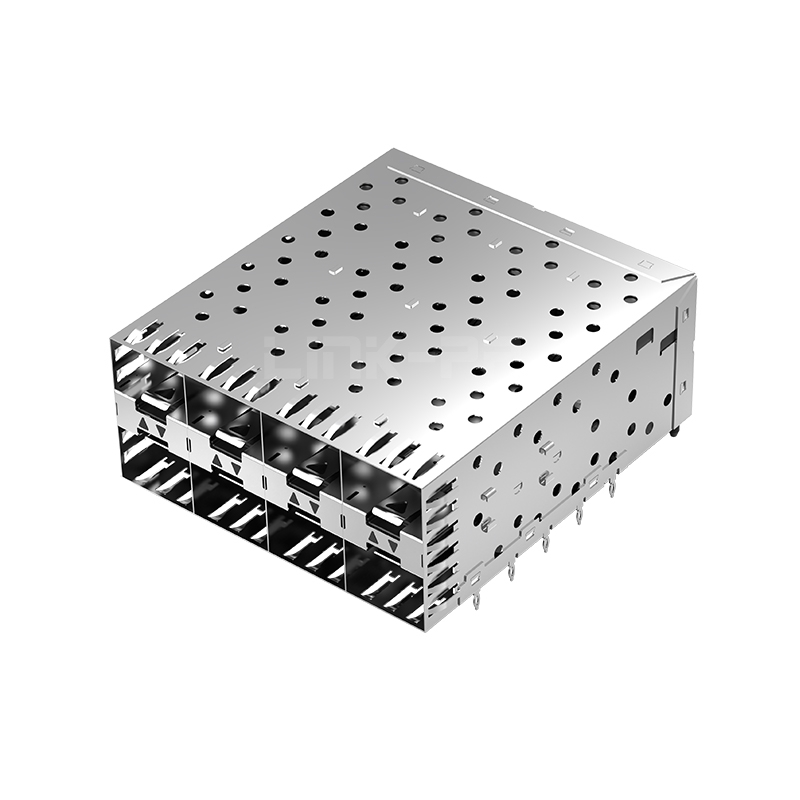

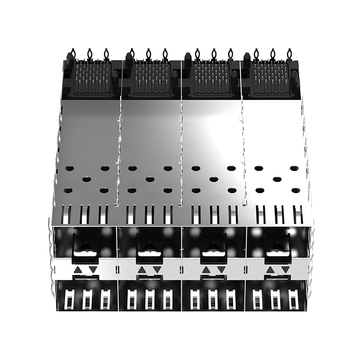

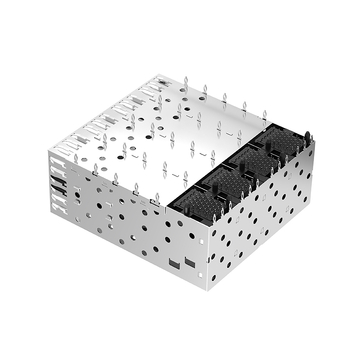

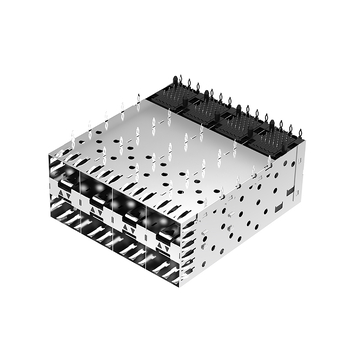

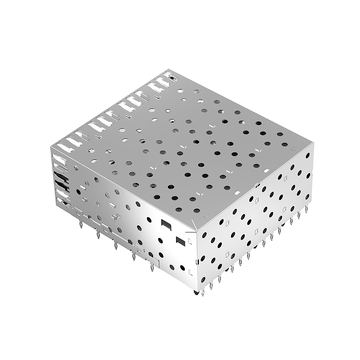

LP24AC01201 SFP 2x4 Cage Assembly With Integrated Connector With Inner Light Pipe EMI Spring Finger Press-Fit Through Hole

Product summary

Product
LP24AC01201 SFP 2x4 Cage Assembly With Integrated Connector With Inner Light Pipe EMI Spring Finger Press-Fit Through Hole
SKU
170489
P/N
LP24AC01201
Price
$ 11.80
Stock
9000 in Stock
Sold
1.9K
Unit price $ 11.80
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP24AC01201SKU: 170489

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
LINK-PP
Compatible P/N:
LP24AC01201
Volume pricing Online tiers · larger qty or custom price on request
$ 11.800
1–99 pcs
$ 10.114
100–999 pcs
$ 8.850
1,000–4,999 pcs
$ 8.408
5,000–9,999 pcs
$ 7.965
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
9000 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 11.80

LINK-PP LP24AC01201 SFP 2x4 Cage Assembly With Integrated Connector With Inner Light Pipe EMI Spring Finger Press-Fit Through Hole

LINK-PP Part Number LP24AC01201 Part Status Active
Product Type Cage Assembly with Integrated Connector Form Factor SFP
Max Data Rate 4 Gbps Features EMI Shielded
Port Matrix Configuration 2×4 Number of Ports 8
Included Connector Yes Included Heat Sink No
Included Lightpipe Yes EMI Containment Feature Type Spring Fingers
Termination Press-Fit Mounting Type Through Hole, Right Angle
Tail Length (Inches/mm) 0.106/2.70 Recommended PCB Thickness (Inches/mm) 0.093/2.36
Length (Inches/mm) 2.490/63.25 (REF) Width (Inches/mm) 2.254/57.25 (REF)
Height (Inches/mm) 1.016/25.80 (REF) Cage Material Stainless Steel
Contact Plating Gold Cage Plating Nickel
Operating Temperature Range -40 to +85°C Packaging Tray

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP24AC01201-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Air has to move through the cage, not around it. Keep the vents above and below the mouths clear, hold cable bundles away from the rear, and where the chassis allows, pull air across the module fins instead of blowing into dead space. A ganged body shares heat between neighbours, so test with every port loaded. by LINK-PP Technical Support
  • A:
    The outer fingers compress against the faceplate while the inner ones touch the module can, so the module and the chassis share the cage. Mask bare metal where the outer fingers land and keep paint off that band; a single missed contact turns the mouth into a slot antenna. Check continuity from cage to plate and cage to module. by LINK-PP Technical Support
  • A:
    The pipe mouths land over the host emitters, so place those parts from our cage drawing rather than from the module outline. Keep each emitter and its resistor out of the module removal path, and inspect the pipe ends with the cage pressed but before the bezel is added. A pipe a fraction off still lights, only dimmer. by LINK-PP Technical Support
  • A:
    Our drawing calls for a two point three six millimetre board, and the holes are sized so the compliant pin deforms without cracking the barrel. Keep the cage out of the reflow unless the pins are masked, and press it after the SMT step. Check a few pins for true position before the whole lot goes in. by LINK-PP Technical Support
