LP24AC01101 sfp 2x4 cage assembly with integrated connector press-fit with inner outer light pipe emi spring finger

LP24AC01101 SFP 2x4 Cage Assembly With Integrated Connector Press-Fit With Inner/Outer Light Pipe EMI Spring Finger

Product summary

Product
LP24AC01101 SFP 2x4 Cage Assembly With Integrated Connector Press-Fit With Inner/Outer Light Pipe EMI Spring Finger
SKU
170488
P/N
LP24AC01101
Price
$ 12.48
Stock
2000 in Stock
Sold
3.9K
Unit price $ 12.48
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP24AC01101SKU: 170488

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
Pulse
LINK-PP
Compatible P/N:
LP24AC01101
Volume pricing Online tiers · larger qty or custom price on request
$ 12.480
1–99 pcs
$ 10.700
100–999 pcs
$ 9.362
1,000–4,999 pcs
$ 8.894
5,000–9,999 pcs
$ 8.426
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
2000 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 12.48

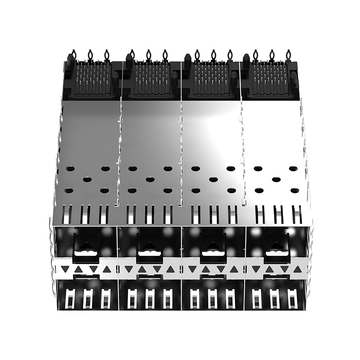

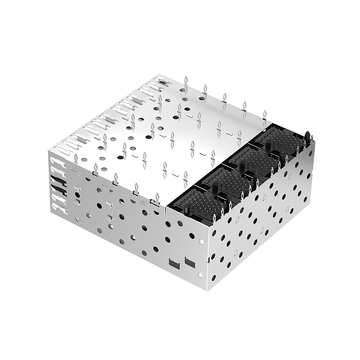

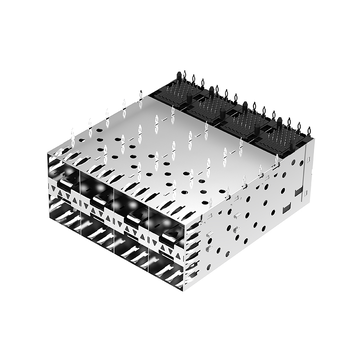

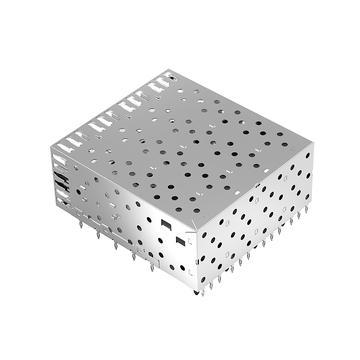

LINK-PP LP24AC01101 SFP 2x4 Cage Assembly With Integrated Connector Press-Fit With Inner/Outer Light Pipe EMI Spring Finger

LINK-PP Part Number LP24AC01101 Part Status Active
Product Type Cage Assembly with Integrated Connector Form Factor SFP
Max Data Rate 4 Gbps Features EMI Shielded
Port Matrix Configuration 2×4 Number of Ports 8
Included Connector Yes Included Heat Sink No
Included Lightpipe Yes EMI Containment Feature Type Spring Fingers
Termination Press-Fit Mounting Type Through Hole, Right Angle
Tail Length (Inches/mm) 0.106/2.70 Recommended PCB Thickness (Inches/mm) 0.093/2.36
Length (Inches/mm) 2.490/63.25 (REF) Width (Inches/mm) 2.254/57.25 (REF)
Height (Inches/mm) 1.016/25.80 (REF) Cage Material Stainless Steel
Contact Plating Gold Cage Plating Nickel
Operating Temperature Range -40 to +85°C Packaging Tray

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP24AC01101-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Yes, the latches and the module openings all face the same way, but the upper row needs room for a patch lead to arc out before it turns into the tray. A recessed panel is where that gets tight, so we held a finger width of free height above the top opening and checked it with the lid on. Label both rows while the cage is empty. The lower latches are reached from underneath. by LINK-PP Technical Support
  • A:
    Reserve the whole underside of the cage footprint for the press operation, with no tall parts where the support tool has to sit. A two by four array spreads force across a wide area, and an uneven backing plate will bow the board enough to crack a joint elsewhere. We also left a clear strip near the front edge for the tool guide. Check the tail rows from below before any other component goes on. by LINK-PP Technical Support
  • A:
    They do, because the guides start at different points along the shell and a lamp that feeds one row leaves the other visibly dimmer. The vendor drawing gives both entrance positions, and moving an emitter by even a few millimetres changes what the operator sees at the faceplate. We verified each pair during bring up with the enclosure closed. The cage only carries light, it never generates any. by LINK-PP Technical Support
  • A:
    Eight port positions are fed by the guide set on this shell, so plan one emitter for each opening unless the design only lights selected ports. The inner and outer guides sit at different depths, which means a single row of lamps will not illuminate them evenly. We placed the emitters on two pitches according to the drawing and compared brightness with a live link on every cage. Freeze that footprint before the panel is cut. by LINK-PP Technical Support
