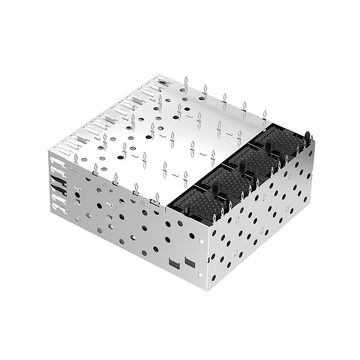

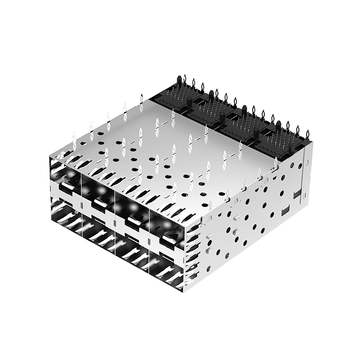

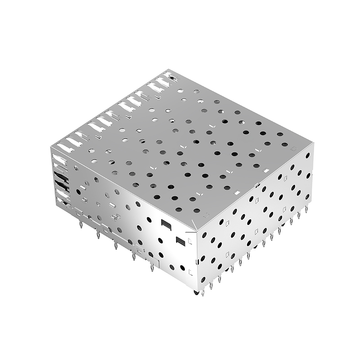

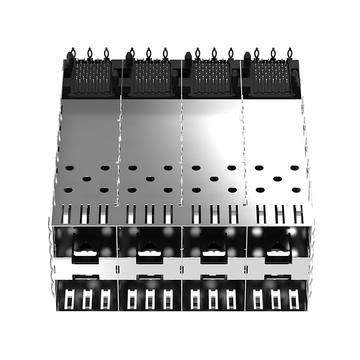

LP24AC01001 sfp 2x4 cage assembly with integrated connector press-fit through hole with emi spring finger
Click to open expanded view

LP24AC01001 SFP 2x4 Cage Assembly With Integrated Connector Press-Fit Through Hole With EMI Spring Finger

Product summary

Product
LP24AC01001 SFP 2x4 Cage Assembly With Integrated Connector Press-Fit Through Hole With EMI Spring Finger
SKU
170487
P/N
LP24AC01001
Price
$ 11.27
Stock
3000 in Stock
Sold
8.2K
Unit price $ 11.27
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
P/N: LP24AC01001SKU: 170487

LINK-PP originalDatasheetAll downloads

Compatible:
Pulse
LINK-PP
Compatible P/N:
LP24AC01001
Volume pricing Online tiers · larger qty or custom price on request
$ 11.270
1–99 pcs
$ 9.657
100–999 pcs
$ 8.450
1,000–4,999 pcs
$ 8.028
5,000–9,999 pcs
$ 7.605
≥10,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
3000 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 99.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
Total Price:
$ 11.27

LINK-PP LP24AC01001 SFP 2x4 Cage Assembly With Integrated Connector Press-Fit Through Hole With EMI Spring Finger

LINK-PP Part Number LP24AC01001 Part Status Active
Product Type Cage Assembly with Integrated Connector Form Factor SFP
Max Data Rate 4 Gbps Features EMI Shielded
Port Matrix Configuration 2×4 Number of Ports 8
Included Connector Yes Included Heat Sink No
Included Lightpipe No EMI Containment Feature Type Spring Fingers
Termination Press-Fit Mounting Type Through Hole, Right Angle
Tail Length (Inches/mm) 0.106/2.70 Recommended PCB Thickness (Inches/mm) 0.093/2.36
Length (Inches/mm) 2.490/63.25 (REF) Width (Inches/mm) 2.254/57.25 (REF)
Height (Inches/mm) 1.016/25.80 (REF) Cage Material Stainless Steel
Contact Plating Gold Cage Plating Nickel
Operating Temperature Range -40 to +85°C Packaging Tray

Model Comparison Table

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LP24AC01001-Drawing.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Mainly repair granularity and tooling tolerance. One damaged aperture means replacing the whole 2x4, and the long body demands a flatter board and a more controlled press than four small cages would. In exchange you get one placement, guaranteed port to port pitch and a single continuous shield bond along the EMI spring fingers. For a high density faceplate that trade usually wins. Keep insertion cycles low during bring up so the latches stay within spec. by LINK-PP Technical Support
  • A:
    On a ganged 2x4 it is almost always the more important reading. The 63.25mm length is easy to measure and rarely varies, but one pin a fraction high lifts a corner of the block and leaves its aperture out of plane, and press fit has no solder fillet to absorb that error. We specify coplanarity across all eight ports and check it before the first module is inserted. A link test will not reveal it; a module that latches loosely under vibration will. by LINK-PP Technical Support
  • A:
    Yes, because nothing in this cage carries light forward. With no light pipe the indicators are on the host board, so their position is set by your PCB layout and the bezel window has to be aligned to that, not to the connector. Keep the window inside the 25.50mm aperture with a little clearance so the panel never bears on the shell. A window cut off centre is a cosmetic fault that repeats on every unit, so settle it on the first article rather than after assembly. by LINK-PP Technical Support
  • A:
    A flat tool. Across 63.25mm and eight apertures, a roller applies force progressively and can leave one end of the block a fraction higher than the other, which shows up as a module that will not quite latch. A rigid flat press keeps all the press fit pins coplanar against the board in one stroke. Check lead coplanarity on the initial sample and confirm every EMI spring finger contacts bare metal afterwards. The 25.50mm height is the other figure to check against the bezel before tooling. by LINK-PP Technical Support

Customer Reviews

  • 4.9

    30 Reviews

  • 5 Stars
    93%
    4 Stars
    7%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (30)
No data
D***x
Switzerland
Verified Purchase
4.0
2026-11-16
One corner of the shell was bent, but the eight openings were clean and the connector came with it. 63.25 mm long by 25.50 mm high matched the SFP 2x4 cutout we already had.
Y***n
Thailand
Verified Purchase
5.0
2026-11-02
Eight SFP ports on one line card and the press fit tails went in without a reflow step on a card that was already populated. The copper alloy shell has held up and the LCP housing took the heat. The connector is part of the assembly, so there was no separate part to place.
Y***y
United Arab Emirates
Verified Purchase
5.0
2026-10-19
2x4 SFP cage, connector in, worth it.
R***t
South Africa
Verified Purchase
5.0
2026-10-05
Modules latched in all eight and none needed a re seat, no trouble. :)
G***d
Spain
Verified Purchase
5.0
2026-09-22
Eight ports on one block, so the build list stays short, worth it.
