LINK-PP LS-BL554910-A0C 10G SFP+ BiDi 1550nm-TX/1490nm-RX 100km Simplex LC/UPC DOM SMF Optical Transceiver Module

Name: LINK-PP LS-BL554910-A0C 10G SFP+ BiDi 1550nm-TX/1490nm-RX 100km Simplex LC/UPC DOM SMF Optical Transceiver Module
Brand: LINK-PP
SKU: 188193
Price: 433.87 USD
Availability: InStock
Rating: 4.9 (39 reviews)

Product: LINK-PP LS-BL554910-A0C 10G SFP+ BiDi 1550nm-TX/1490nm-RX 100km Simplex LC/UPC DOM SMF Optical Transceiver Module
SKU: 188193
P/N: LS-BL554910-A0C
Price: $ 504.5
Stock: 1102 in Stock
Sold: 980
Product URL: https://www.l-p.com/products/482784.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

39 Reviews

4 Questions

980 Sold

$ 504.5

Free shipping. For wholesale pricing, please contact us directly.

Qty (pcs) :

Unit Price :

$ 504.5

100

$ 479.275

1000

$ 464.14

3000

$ 449.005

6000

$ 433.87

Manufacture: LINK-PP P/N: LS-BL554910-A0C SKU: 188193

Compatible:: Cisco; LINK-PP; Arista; Brocade; D-Link; Dell; Extreme; FS; Fortinet; Generic; Juniper

Compatible P/N:: LS-BL273310-10C | 10km; LS-BL273310-10I | 10km; LS-BL332710-10C | 10km; LS-BL332710-10I | 10km; LS-BL273310-20C | 20km; LS-BL273310-20I | 20km; LS-BL332710-20C | 20km; LS-BL332710-20I | 20km; LS-BL273310-40C | 40km; LS-BL273310-40I | 40km; LS-BL332710-40C | 40km; LS-BL332710-40I | 40km; LS-BL273310-60C | 60km; LS-BL273310-60I | 60km; LS-BL332710-60C | 60km; LS-BL332710-60I | 60km; LS-BL495510-80C | 80km; LS-BL495510-80I | 80km; LS-BL554910-80C | 80km; LS-BL554910-80I | 80km; LS-BL495510-A0C | 100km; LS-BL495510-A0I | 100km; LS-BL554910-A0C | 100km; LS-BL554910-A0I | 100km

Shipping:

Free Shipping

to United States via FedEx

Estimated delivery time : 3-10 days.

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Specifications
Features
Certification
Testing
Shipping
Usage
Support
Assurance
FAQ
Specification
Matching Products
Download
Q&A
Customer Reviews

LINK-PP LS-BL554910-A0C 10G SFP+ Specifications

LS-BL554910-A0C redefines long-haul connectivity as a single-strand BiDi SFP+ optical transceiver, engineered to master a 100km reach over single-mode fiber by utilizing a sophisticated 1550nm-TX/1490nm-RX wavelength split through a simplex LC/UPC connector with integrated DOM capabilities.

LINK-PP Part Number	LS-BL554910-A0C	Vendor Name	LINK-PP
Form Factor	SFP+	Max Data Rate	10.7Gbps
Wavelength	1550nm-TX/1490nm-RX	Max Cable Distance	100km
Connector	Simplex LC	Media	SMF
Transmitter Type	EML	Receiver Type	APD
TX Power	-1 to +5dBm	RX Power	-23 to -6dBm
Receiver Sensitivity	-25dBm	DOM Support	Yes
Operating Temperature Range	0 to 70°C	Protocols	SFP+ MSA Compliant, CPRI, eCPRI

Key Features of LINK-PP LS-BL554910-A0C 10G SFP+

LINK-PP LS-BL554910-A0C is a specialized 10G SFP+ BiDi optical transceiver engineered for ultra-long-distance data transmission over a single strand of single-mode fiber. It integrates advanced dual-wavelength signaling, an optimized optical interface, and real-time diagnostic monitoring to deliver efficient network connectivity up to 100km.

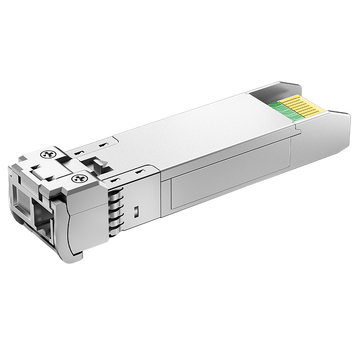

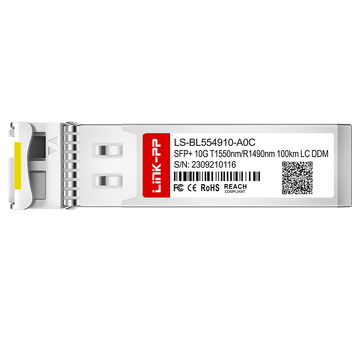

LINK-PP LS-BL554910-A0C 10G SFP+ Optical Module

This hot-pluggable SFP+ module brings reliable 10Gbps speeds to your network infrastructure. It is fully standardized to offer seamless hardware compatibility and steady data transmission for critical links.

LS-BL554910-A0C: 10 Gbps Connectivity for Telcom Backhaul

Designed to span massive physical distances, this module provides the steady 10 Gbps bandwidth required to link remote cell sites and central switching offices. It serves as a dependable backbone component for long-range telecommunications infrastructure.

LS-BL554910-A0C Module with 1550nm-TX/1490nm-RX Wavelength

Operating on a 1550nm-TX and 1490nm-RX wavelength combination, this transceiver separates incoming and outgoing data streams on a single fiber strand. This configuration prevents signal interference while maximizing data throughput over long distances.

LS-BL554910-A0C Module Supporting 100km Transmission

Built with a powerful optical transmitter, this module easily sends 10G data streams across distances up to 100km on single-mode fiber. This massive reach allows you to connect distant facilities directly without buying expensive intermediate signal repeaters.

LS-BL554910-A0C Module with Simplex LC/UPC Interface

Featuring a single, precision-polished Simplex LC/UPC connector, the module simplifies physical fiber patching and reduces installation complexity. This design drastically cuts hardware procurement costs by utilizing 50% fewer fiber cables and patch panel ports.

LS-BL554910-A0C Module with DOM for Real-Time Monitoring

With integrated Digital Optical Monitoring (DOM) capabilities, network administrators can track critical internal metrics like laser temperature, supply voltage, and optical power in real time. This built-in diagnostic tool allows for proactive troubleshooting to prevent unexpected network downtime.

LINK-PP LS-BL554910-A0C 10G SFP+ Certification

LINK-PP LS-BL554910-A0C is manufactured under a strict quality management system and fully complies with international standards, holding recognized certifications such as ISO 9001, CE, RoHS, and FCC.

LS-BL554910-A0C Quality Testing Program

Every transceiver undergoes rigorous hardware inspections and signal integrity testing in the lab before shipping to ensure it meets strict performance standards.

LS-BL554910-A0C Quality Certifications

These regulatory compliance marks ensure the module meets global criteria for low electromagnetic emissions, safe electrical design, and hazardous material restrictions.

LS-BL554910-A0C Certified for Reliable Host-Device Compatibility

The module is comprehensively tested across diverse vendor switches and routers to ensure seamless plug-and-play installation without link errors.

Rigorous Testing Ensures Reliable SFP+ Performance

Each module undergoes strict hardware validation to ensure flawless field data transmission across long distances. Discover our complete quality verification process at the LINK-PP Test Support Center.

Rigorous Testing Ensures Reliable Transceiver Performance

Optical Spectrum Test

Verify wavelength accuracy to prevent signal distortion.

Eye Pattern Test

Analyze signal integrity to ensure clear data wave shapes.

Bit Error Rate Test

Measure data transmission accuracy over long-distance fiber links.

Temperature Test

Check hardware stability under extreme environmental conditions.

Product Shipping for LINK-PP LS-BL554910-A0C 10G SFP+

We secure every module using specialized packaging to prevent transport damage. Enjoy rapid worldwide shipping directly to your facility.

Anti-Static Protective Packaging

Protect sensitive optical components from harmful electrostatic discharge.

Shock-Resistant Transport Protection

Safeguard the optical modules against physical drops and vibration.

Fast Order Processing and Dispatch

Prepare and ship your hardware orders without unnecessary delays.

Global Logistics and International Delivery

Deliver network components safely to customers across worldwide regions.

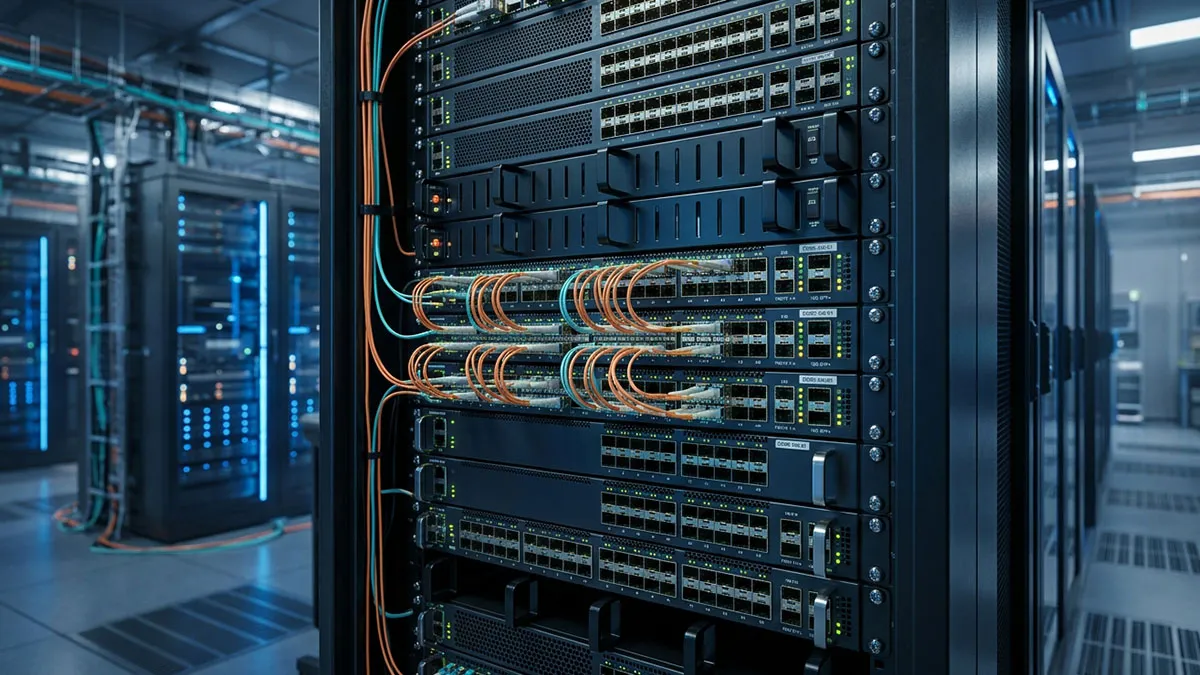

LINK-PP LS-BL554910-A0C 10G SFP+ Usage Demonstration

To deploy the transceiver, simply slide it into any compatible switch port until it clicks, then attach the single-mode fiber patch cable. This module is ideal for long-haul enterprise networking, metro telecommunications backhaul, and expanding bandwidth in fiber-constrained data center architectures.

LS-BL554910-A0C Technical Support

LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.

Pre-Sales Technical Consultation

Professional guidance to help you select the optimal LS-BL554910-A0C module for your network design and application needs.

Compatibility Verification Support

Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.

Deployment & Installation Assistance

Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.

Long-Term Technical Assurance

Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.

LINK-PP LS-BL554910-A0C 10G SFP+ After-Sales Assurance

LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.

15-day no-reason return and refund

Free replacement for dead-on-arrival (DOA) or defective items within the initial period

Free repair services for manufacturing defects throughout the warranty period

Warranty exclusions and conditions apply

LINK-PP LS-BL554910-A0C 10G SFP+ FAQ

Find direct technical answers regarding power consumption, DOM diagnostics, optical power budgets, and physical fiber patching requirements for this 10G SFP+ 100km transceiver.

01. What is the typical power consumption of this 100km BiDi SFP+?

Its power consumption at 3.3V is less than 1.5W, well within the SFP+ standard power budget.

02. Does the LS-BL554910-A0C module support digital diagnostic monitoring for link loss prediction?

Yes, DOM allows you to monitor TX power, RX power, and temperature to predict link degradation before failure.

03. What is the minimum TX power and RX sensitivity at 100km?

Typical TX is -1 to +5dBm; RX sensitivity is -25dBm, giving a minimum 24dB link budget.

04. Can I use the LS-BL554910-A0C BiDi SFP+ with a standard duplex LC patch panel?

No, it uses a single LC/UPC simplex fiber. You must convert duplex to single fiber with a dedicated adapter or WDM coupler.

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LS-BL554910-A0C.pdf

Questions & Answers
Ask a Question

No data

Q: Why does this 10G SFP module only have one optical port instead of the usual two ports? By R***y on 2026-03-16

A: It uses a Simplex LC port because it is a Bidirectional (BiDi) module, meaning it transmits at 1550nm and receives at 1490nm over a single strand of single-mode fiber to save physical cabling space. By admin on 2026-03-17
Q: How can I check if the module is getting too hot inside a high-density enterprise switch rack? By I***r on 2026-01-07

A: You can monitor the real-time internal temperature sensors directly through the switch CLI using the built-in DOM digital diagnostic interface. By admin on 2026-01-08
Q: Can I pair this LS-BL554910-A0C module with any generic 10G 80km or 100km dual-fiber optic? By E***e on 2025-09-08

A: No, this is a single-strand BiDi module and must be paired with its matching complementary transceiver (1490nm-TX/1550nm-RX) on the other end. By admin on 2025-09-09
Q: Can we get a lower wholesale price per unit if we order 450 pieces at one time? By A***g on 2025-06-17

A: Yes, we offer tiered volume discounts for large enterprise orders to help reduce your total network expansion costs. By admin on 2025-06-18
