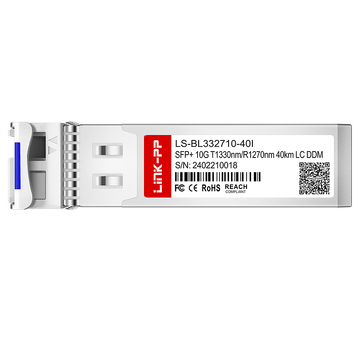

Engineered for single-fiber efficiency, the LINK-PP LS-BL332710-40I industrial-grade 10G SFP+ transceiver duplexes a 1330nm-TX/1270nm-RX wavelength over a single strand of single-mode fiber via a Simplex LC/UPC interface, delivering integrated DOM monitoring across distances up to 40km under harsh temperature conditions.
| LINK-PP Part Number | LS-BL332710-40I | Vendor Name | LINK-PP |
| Form Factor | SFP+ | Max Data Rate | 10.7Gbps |
| Wavelength | 1330nm-TX/1270nm-RX | Max Cable Distance | 40km |
| Connector | Simplex LC | Media | SMF |
| Transmitter Type | DFB | Receiver Type | PIN |
| TX Power | -1 to +5dBm | RX Power | -17 to +1dBm |
| Receiver Sensitivity | -15dBm | Receiver Overload | 0.5dBm |
| Operating Temperature Range | -40 to 85°C | Protocols | IEEE 802.3ae, SFP+ MSA, SFF-8472, SFF-8431, SFF-8432, CPRI, OBSAI |
The LINK-PP LS-BL332710-40I is an industrial-grade optical transceiver that combines BiDi single-fiber efficiency, long-distance reach, and real-time diagnostics for reliable data transmission. This module provides a robust and cost-effective solution for demanding networking environments.
This industrial-grade transceiver operates at a 10 Gbps data rate using a small form-factor pluggable plus (SFP+) design. It is built to deliver stable network connectivity under extreme temperature conditions.
Designed for heavy-duty aggregation, this module provides reliable 10Gbps bandwidth for industrial backbone networks. It ensures consistent data traffic flow between remote field sites and central control centers.
Featuring Bidirectional (BiDi) technology, the module transmits data at 1330nm and receives at 1270nm. This allows simultaneous two-way traffic over a single strand of single-mode fiber, cutting cabling costs in half.
Equipped with a powerful optical transmitter, this transceiver reliably bridges long-distance network segments up to 40km without signal degradation. It is ideal for connecting geographically separated industrial nodes.
The module features a single-fiber Simplex LC/UPC connector for clean, low-loss physical fiber termination. This standardized interface simplifies fiber patching and optimizes space in high-density panels.
With integrated Digital Optical Monitoring (DOM), network operators can track internal parameters like temperature, voltage, and optical power. This proactive telemetry helps prevent sudden link downtime and simplifies troubleshooting.
The LINK-PP LS-BL332710-40I industrial-grade 10G SFP+ module complies with top international standards, including ISO 9001, CE, RoHS, and FCC certifications, to guarantee safety, quality, and environmental compliance.
Each transceiver undergoes rigorous hardware and signal integrity testing in the lab to ensure stable performance under extreme industrial conditions.
These official credentials verify that the transceiver module adheres to safety, environmental protection, and strict quality management policies.
The transceiver is fully tested and verified to work seamlessly with major networking hardware brands without causing system errors or port locks.
Every SFP transceiver module undergoes strict testing to guarantee top-tier network stability and high-speed data transmission. To discover our comprehensive testing processes, please visit the LINK-PP Test Support Center.
Measure central wavelength to guarantee precise and stable optical output.
Analyze signal quality to ensure minimal distortion during data transmission.
Evaluate data integrity to deliver flawless and error-free network performance.
Verify module reliability across a wide range of environmental conditions.
We ensure safe and efficient delivery for all transceiver module shipments. Our professional team handles every order with the highest care.
Protect sensitive optical components from electrostatic discharge during transit.
Secure packages tightly to prevent damage from bumps and drops.
Speed up handling times to ensure quick product shipment.
Ship orders worldwide using reliable international freight forwarding partners.
The LINK-PP LS-BL332710-40I 10G SFP+ is an industrial-grade BiDi SFP module designed for high-performance single-fiber bidirectional data transmission. It excels in harsh networking environments, providing robust, high-speed connections for enterprise networks, telecommunications, long-distance fiber links, and extreme industrial automation systems.
LINK-PP offers end-to-end technical support, from pre-sales consultation to post-deployment assistance, ensuring smooth integration and reliable network performance.
Professional guidance to help you select the optimal LS-BL332710-40I module for your network design and application needs.
Validated compatibility with LINK-PP switches and other mainstream networking platforms for seamless deployment.
Comprehensive step-by-step guidance for installation, configuration, and initial setup, ensuring accurate deployment and reliable, stable operation from the start.
Ongoing technical support throughout the product lifecycle, delivering long-term stability for enterprise and carrier-grade networks.
LINK-PP provides after-sales support for the smooth deployment and reliable operation of the optical modules.
15-day no-reason return and refund
Free replacement for dead-on-arrival (DOA) or defective items within the initial period
Free repair services for manufacturing defects throughout the warranty period
Warranty exclusions and conditions apply
Get quick answers to common questions regarding the wavelengths, transmission distance, temperature range, and typical deployment scenarios for this module.
![]() Current Model LS-BL332710-40I |
|---|
Compatible | LINK-PP | LINK-PP |
Data Rate (Max) | 10.7Gbps | 10.7Gbps |
Wavelength | 1330nm-TX/1270nm-RX | 1550nm-TX/1490nm-RX |
Connector | Simplex LC | Simplex LC |
Cable Distance (Max) | 40km | 80km |
Cable Type | SMF | SMF |
TX Power | -1 to +5dBm | -1 to +5dBm |
Receiver Sensitivity | -15dBm | -22dBm |
Operating Temperature | -40 to 85°C | 0 to 70°C |
Form Factor | SFP+ | SFP+ |
Transmitter Type | DFB | EML |
Receiver Type | PIN | APD |
Receiver Overload | 0.5dBm | |
Protocols | IEEE 802.3ae, SFP+ MSA, SFF-8472, SFF-8431, SFF-8432, CPRI, OBSAI | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
| Pictures | ID# | Description | Price | Stock | Add to Cart |
Q: Does the LS-BL332710-40I BiDi optical module support multi-mode fiber infrastructure configurations? By L***r on 2026-05-27
A: No, this is strictly a single-mode fiber (SMF) optical transceiver. It requires standard 9/125μm SMF cabling to achieve the specified 40km reach. By admin on 2026-05-28
Q: How resilient is the physical pull-tab bail latch when doing routine maintenance in dense, tightly packed patch panels? By J***z on 2025-10-05
A: The heavy-duty metal bail latch is built for tight spaces and high extraction force. It allows clean, snag-free disconnects even when surrounded by dozens of active fiber patches. By admin on 2025-10-06
Q: Can this industrial-grade 10G SFP+ BiDi optical transceiver be used in standard indoor climate-controlled server rooms? By C***s on 2025-09-30
A: Absolutely, the industrial rating (-40°C to +85°C) completely covers standard commercial operating ranges. It provides extra thermal overhead and longevity in indoor setups. By admin on 2025-10-01
