What are the exact working wavelengths of the SFP-10G-BX20-D transceiver?

This module transmits data at a 1330nm wavelength (TX) and receives data at 1270nm (RX).

Do I need to deploy this BiDi SFP module in identical pairs on both ends of the link?

No, you must pair it with its complementary module (the 1270nm-TX/1330nm-RX model) on the other end to establish a working link.

What type of fiber optic patch cable should be used with the SFP-10G-BX20-D module?

It requires a single-mode fiber (SMF) patch cord with a simplex LC/UPC connector.

What is the maximum transmission distance supported by this 10G SFP+ module?

It reliably supports data transmission distances up to 20km over single-mode fiber.

Home

Optics Transceivers | SFP Modules

10/25/40G/100G Transceiver Modules

10G SFP+

204080

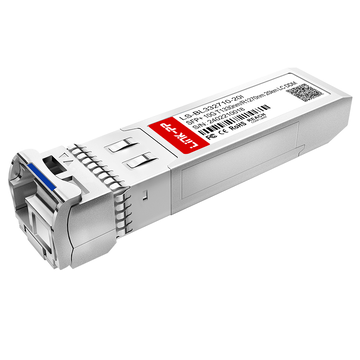

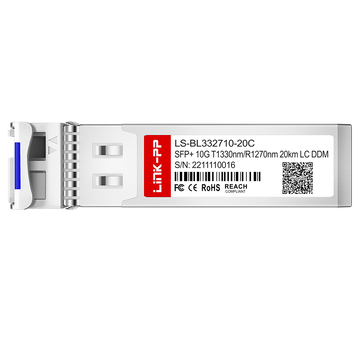

Generic SFP-10G-BX20-D Compatible LINK-PP 10G SFP+ BiDi 1330nm-TX/1270nm-RX 20km Simplex LC/UPC DOM SMF Optical Transceiver Module

Name: SFP-10G-BX20-D
Brand: LINK-PP
SKU: 204080
Price: 18.5 USD
Availability: InStock
Rating: 5 (23 reviews)

# 204080

For Order Over $1000 Get $15.00 Off , Code:

Linkpp15

For Order Over $3000 Get $50.00 Off , Code:

Linkpp50

For Order Over $5000 Get $100.00 Off , Code:

Linkpp100

: Generic SFP-10G-BX20-D Compatible LINK-PP 10G SFP+ BiDi 1330nm-TX/1270nm-RX 20km Simplex LC/UPC DOM SMF Optical Transceiver Module

23 Reviews Need Help?

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

23 Reviews

0 Questions

Request Stock

890 Sold

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF )

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 18.5

100

$ 17.575

1000

$ 17.02

3000

$ 16.465

6000

$ 15.91

Manufacture: LINK-PP

P/N: LS-BL332710-20C

Compatible:: Cisco; LINK-PP; Arista; Broadcom; Brocade; Ciena; D-Link; DELL; Extreme; FS; Fortinet; Generic; HW; Juniper

Compatible P/N:: SFP-10G-BX20-D | 20km

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

Specifications

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

Generic SFP-10G-BX20-D Compatible LINK-PP 10G SFP+ Specifications

The Generic SFP-10G-BX20-D Compatible LINK-PP module is a 10G SFP+ BiDi optical transceiver module that enables bidirectional communication over a single fiber strand by utilizing a 1330nm-TX/1270nm-RX wavelength combination to support data links up to 20km.

Generic Part Number	SFP-10G-BX20-D	Vendor Name	LINK-PP
Form Factor	SFP+	Max Data Rate	10.7Gbps
Wavelength	1330nm-TX/1270nm-RX	Max Cable Distance	20km
Connector	Simplex LC	Media	SMF
Transmitter Type	DFB	Receiver Type	PIN
TX Power	-6.5 to +2dBm	RX Power	-17 to +1dBm
Receiver Sensitivity	-14.4dBm	Receiver Overload	0.5dBm
Operating case temperature	0 to 70°C	Protocols	SFP+ MSA Compliant, CPRI, eCPRI

Videos

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LS-BL332710-20C.pdf
