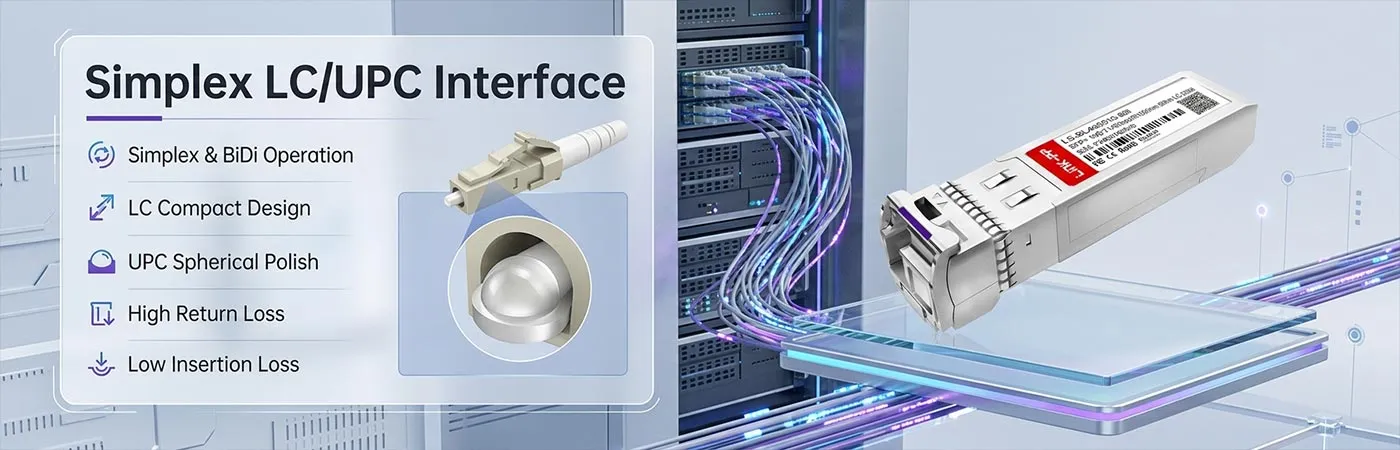

Can I use the LS-BL495510-80I module with standard dual-fiber LC patch cords?

No. This is a BiDi module that uses a simplex LC/UPC interface, meaning it transmits and receives data over a single fiber strand. You must use a simplex single-mode fiber cable.

Do I need to pair this module with an identical LS-BL495510-80I on the other end?

No, you must pair it with its complementary matching module (typically a 1550nm-TX/1490nm-RX model). BiDi links require opposite Tx/Rx wavelengths on each end to communicate.

What makes this module "industrial-grade" compared to commercial versions?

It features hardened components designed to operate under severe temperature fluctuations ranging from -40°C to 85°C, making it suitable for unconditioned outdoor environments.

What are the primary applications for the LS-BL495510-80I?

It is widely deployed at the industrial network edge, including remote telecom cell sites, roadside traffic cabinets, smart grids, and long-range metro backhaul links.

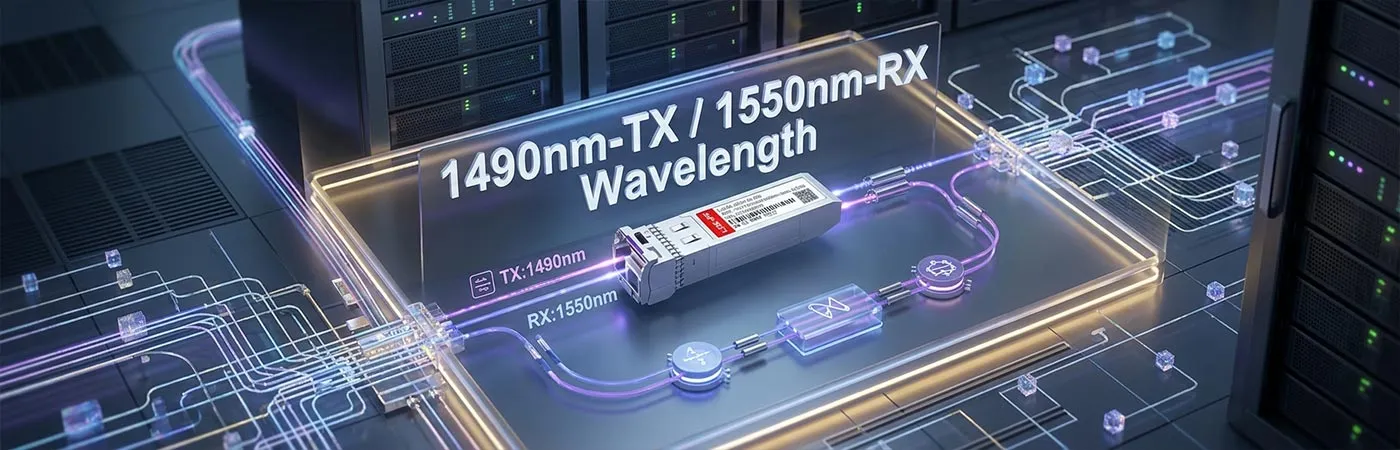

What is the correct matching wavelength configuration required at the remote end of the fiber link?

This module transmits at 1490nm and receives at 1550nm, so it must be paired with a matching module that transmits at 1550nm and receives at 1490nm.

Can this module be safely deployed in unconditioned outdoor aggregation enclosures that experience extreme sub-zero weather?

Yes, the industrial hardware architecture is designed to withstand freezing cycles down to -40°C without experiencing wavelength or signal drift.

Can I use standard multi-mode fiber patch cables to establish a short-distance link with this 80km SFP module?

No, this is a long-haul module that must be paired exclusively with single-mode fiber to prevent extreme modal dispersion and signal loss.

Breadcrumb: Home; Products; Optics Transceivers | SFP Modules; 10/25/40G/100G Transceiver Modules; 10G SFP+; 181701

Click to open expanded view

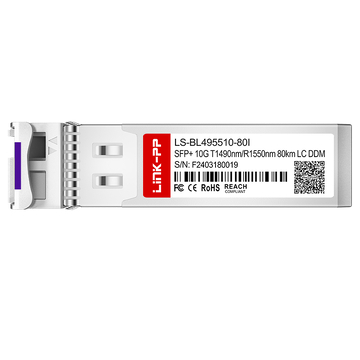

LINK-PP LS-BL495510-80I 10G SFP+ BiDi 1490nm-TX/1550nm-RX 80km Simplex LC/UPC DOM SMF Optical Transceiver Module (Industrial)

Name: LINK-PP LS-BL495510-80I 10G SFP+ BiDi 1490nm-TX/1550nm-RX 80km Simplex LC/UPC DOM SMF Optical Transceiver Module (Industrial)
Brand: LINK-PP
SKU: 181701
Price: 221.88 USD
Availability: InStock
Rating: 5 (53 reviews)

# 181701

Product: LINK-PP LS-BL495510-80I 10G SFP+ BiDi 1490nm-TX/1550nm-RX 80km Simplex LC/UPC DOM SMF Optical Transceiver Module (Industrial)
SKU: 181701
P/N: LS-BL495510-80I
Price: $ 258
Stock: 2200 in Stock
Sold: 1.8K
Product URL: https://www.l-p.com/products/476820.htm

For Order Over $1000 Get $15.00 Off , Code: Linkpp15

For Order Over $3000 Get $50.00 Off , Code: Linkpp50

For Order Over $5000 Get $100.00 Off , Code: Linkpp100

New Users: $10 Coupon for Orders , Code: linkpp2610

53 Reviews

3 Questions

Request Stock

1.8K Sold

$ 258

Free shipping over $600, If you need a more favorable price, please contact us directly.

Qty (pcs) :

Unit Price :

$ 258

100

$ 245.1

1000

$ 237.36

3000

$ 229.62

6000

$ 221.88

Manufacture: LINK-PP

P/N: LS-BL495510-80I

Compatible:: Cisco; LINK-PP; Arista; Brocade; DELL; Extreme; Fortinet; Generic; H3C; Intel; Juniper; Mellanox; NETGEAR

Compatible P/N:: LS-BL273310-10C | 10km; LS-BL273310-10I | 10km; LS-BL332710-10C | 10km; LS-BL332710-10I | 10km; LS-BL273310-20C | 20km; LS-BL273310-20I | 20km; LS-BL332710-20C | 20km; LS-BL332710-20I | 20km; LS-BL273310-40C | 40km; LS-BL273310-40I | 40km; LS-BL332710-40C | 40km; LS-BL332710-40I | 40km; LS-BL273310-60C | 60km; LS-BL273310-60I | 60km; LS-BL332710-60C | 60km; LS-BL332710-60I | 60km; LS-BL495510-80C | 80km; LS-BL495510-80I | 80km; LS-BL554910-80C | 80km; LS-BL554910-80I | 80km; LS-BL495510-A0C | 100km; LS-BL495510-A0I | 100km; LS-BL554910-A0C | 100km; LS-BL554910-A0I | 100km

Shipping:

To Be Negotiated

Free Shipping

Can't deliver

to United States via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} days. See details

5-Year Warranty 30-Day Returns 30-Day Exchange

Stock:

{{parseInt(detail_data.left_num) ? detail_data.left_num +' in Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} .

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

undeliverable

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ( {{ detail_data.displayed_price.rate_of_discount }}% OFF ) {{detail_data.displayed_price.ex_sell_type}}

Add to wish

Specifications

Specification
Videos
Matching Products
Download
Q&A
Customer Reviews

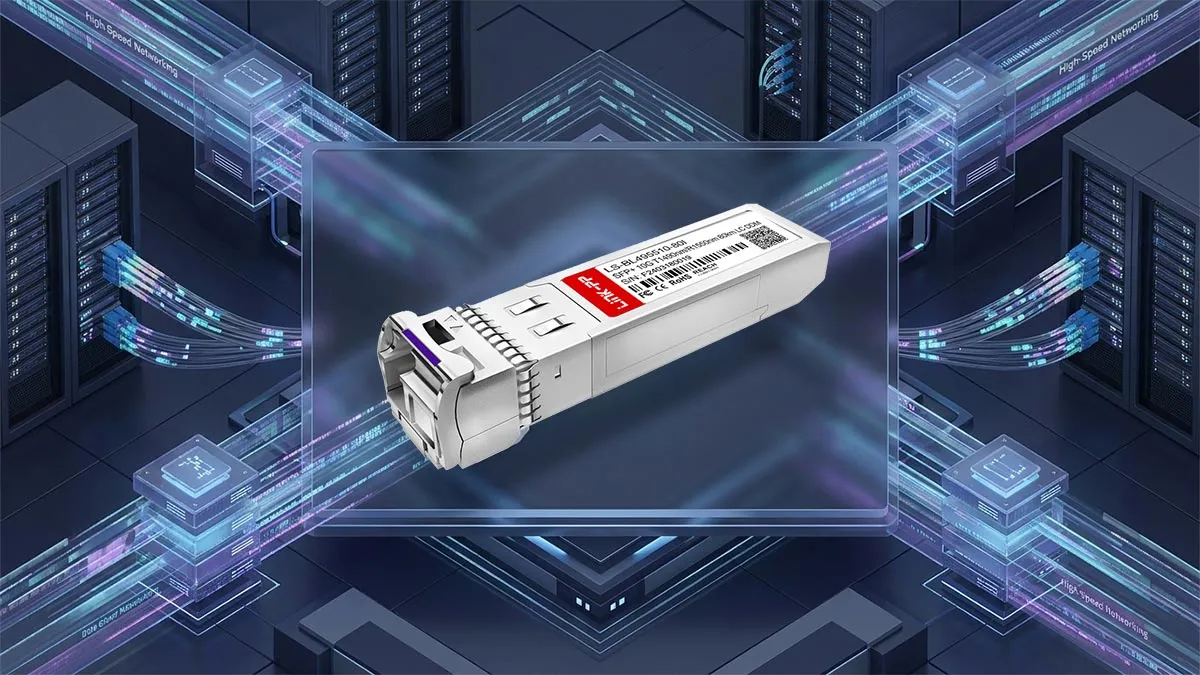

LINK-PP LS-BL495510-80I 10G SFP+ Specifications

LINK-PP LS-BL495510-80I is an industrial-grade, single-fiber 10G SFP+ BiDi optical transceiver engineered for long-haul 80km transmissions over single-mode fiber (SMF), utilizing a simplex LC/UPC interface that maximizes fiber capacity by transmitting at 1490nm-TX and receiving at 1550nm-RX on a single strand.

LINK-PP Part Number	LS-BL495510-80I	Vendor Name	LINK-PP
Form Factor	SFP+	Max Data Rate	10.7Gbps
Wavelength	1490nm-TX/1550nm-RX	Max Cable Distance	80km
Connector	Simplex LC	Media	SMF
Transmitter Type	EML	Receiver Type	APD
TX Power	-1 to +5dBm	RX Power	-23 to -6dBm
Receiver Sensitivity	-22dBm	Receiver Overload	-6dBm
Operating Temperature Range	-40 to 85°C	Protocols	IEEE 802.3ae, SFF-8472, SFF-8431, 10GBASE-ZR/ZW

Videos

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Download

Product Drawing

PDF
LS-BL495510-80I.pdf

Questions & Answers
Ask a Question

No data

Q: What is the correct matching wavelength configuration required at the remote end of the fiber link? By P***h on 2026-04-25

A: This module transmits at 1490nm and receives at 1550nm, so it must be paired with a matching module that transmits at 1550nm and receives at 1490nm. By admin on 2026-04-26
Q: Can this module be safely deployed in unconditioned outdoor aggregation enclosures that experience extreme sub-zero weather? By O***h on 2025-10-29

A: Yes, the industrial hardware architecture is designed to withstand freezing cycles down to -40°C without experiencing wavelength or signal drift. By admin on 2025-10-30
Q: Can I use standard multi-mode fiber patch cables to establish a short-distance link with this 80km SFP module? By Q***n on 2025-06-06

A: No, this is a long-haul module that must be paired exclusively with single-mode fiber to prevent extreme modal dispersion and signal loss. By admin on 2025-06-07

Customer Reviews
Write a Review

{{stardata.star}}

{{comment.count}} reviews
5 Stars

{{comment.star5}}%

4 Stars

{{comment.star4}}%

3 Stars

{{comment.star3}}%

2 Stars

{{comment.star2}}%

1 Star

{{comment.star1}}%

All Reviews ({{comment.star_num?comment.star_num:comment.count}})

All Reviews

5 stars only

4 stars only

3 stars only

2 stars only

1 star only
Reviews with Pictures ( {{comment.pic_comment}} )
See All Reviews

No data

J***d

Belgium

Verified Purchase

5 .0

2026-04-14

Flawless 10G BiDi SFP+ 80km transmission for our outdoor cabinet deployment.

29 Helpful vote Comments

C***w

Hong Kong

Verified Purchase

5 .0

2026-04-09

Very low power consumption per module, which helps keep our high-density switch line cards running much cooler overall.

36 Helpful vote Comments

S***x

Israel

Verified Purchase

5 .0

2026-03-15

We have been standardizing on these 1490nm 1550nm BiDi SFP+ units for our regional node interconnections. The structural build quality is consistently solid across batches.

75 Helpful vote Comments

D***n

Germany

Verified Purchase

5 .0

2026-03-02

The DOM optical transceiver feature provides clear metrics on Tx power and bias current. Very helpful for our network operations center to baseline link health.

26 Helpful vote Comments

S***n

Finland

Verified Purchase

5 .0

2026-02-28

Standard SFF-8472 compliance makes third-party monitoring integration incredibly smooth. Our automation scripts parse the DOM data fields natively.

40 Helpful vote Comments

S***r

Austria

Verified Purchase

5 .0

2026-02-28

80km optics running stable with excellent Rx power levels. ⚡

46 Helpful vote Comments

P***t

Italy

Verified Purchase

5 .0

2026-02-09

Our technical team focuses heavily on physical layer link budgets and minimizing signal attenuation during deployment. These 1490nm 1550nm BiDi SFP+ modules have a very sensitive receiver architecture that easily tracks weak inbound single-mode optical signals over extended distances. We implemented them across several rural microwave-to-fiber aggregation sites where the outdoor enclosures endure sub-zero winter temperatures. The transceivers have operated continuously through several freezing cycles without a single localized bit error or link drop. The build quality easily satisfies the strict environmental standards required for carrier-grade network deployments.

107 Helpful vote Comments

C***r

Brazil

Verified Purchase

5 .0

2026-01-17

Real-time Digital Optical Monitoring works flawlessly via standard I²C interface. We can easily track the internal temperature and optical receive levels from our centralized management dashboard.

61 Helpful vote Comments

E***x

United Arab Emirates

Verified Purchase

5 .0

2026-01-08

Simplex LC ports clicked in perfectly, saving half our fiber strands.

23 Helpful vote Comments

A***n

Indonesia

Verified Purchase

5 .0

2026-01-06

The SFP+ form factor fits snugly into our edge routers. The physical dimensions are precise and do not block adjacent ports on high-density cards.

59 Helpful vote Comments

M***l

Belarus

Verified Purchase

5 .0

2025-12-19

We needed an industrial-grade optical transceiver for our traffic control cabinets. These modules have been running 24/7 without a single link flap despite massive diurnal temperature swings.

53 Helpful vote Comments

J***n

Argentina

Verified Purchase

5 .0

2025-12-15

Industrial temperature rating is holding up fine in our unconditioned node.

33 Helpful vote Comments

B***r

Iran, Islamic Republic of

Verified Purchase

5 .0

2025-12-12

Managing network operations for an industrial automation facility means handling harsh electromagnetic interference and high thermal baselines near processing floors. We deployed these industrial optical transceivers to handle our critical 10G backbone links between separate production control rooms. The wide operating temperature envelope (-40°C to 85°C) gives our operations team immense peace of mind during seasonal climate shifts. Furthermore, the real-time Digital Optical Monitoring diagnostics allowed us to establish proactive alerting thresholds for optical degradation before any actual link failure occurs. The overall hardware stability has completely vindicated our decision to migrate to these robust industrial modules.

151 Helpful vote Comments

R***d

Spain

Verified Purchase

5 .0

2025-11-25

The 1490nm-TX and 1550nm-RX channel pairing works perfectly across our existing 75km single-mode fiber span. The link budget leaves a comfortable safety margin.

72 Helpful vote Comments

A***r

Ireland

Verified Purchase

5 .0

2025-10-02

Reliable 10Gbps optical transport over single core SMF. The deployment went through without a hitch during our scheduled maintenance window. ⏳

52 Helpful vote Comments

N***y

United Kingdom

Verified Purchase

4 .0

2025-09-19

Solid 10G line rate stability and full industrial temperature tolerance inside our roadside node. But the shipping carrier delayed our delivery by a few days, causing us to adjust our installation schedule slightly.

22 Helpful vote Comments

A***e

Canada

Verified Purchase

5 .0

2025-09-03

Outstanding value for an 80km link budget module. We deployed them for a rural broadband distribution ring and the attenuation margins are perfectly safe.

40 Helpful vote Comments

L***t

Australia

Verified Purchase

5 .0

2025-09-03

Exactly as described, optical link budget matches the spec sheet.

39 Helpful vote Comments

K***n

Hungary

Verified Purchase

5 .0

2025-08-29

Excellent attenuation tolerance on long-distance links. Our optical power meter reports consistent -18dBm Rx power at the remote end, which is well within spec.

42 Helpful vote Comments

S***d

Denmark

Verified Purchase

5 .0

2025-07-11

Glad we opted for this industrial-grade BiDi optical module. Our remote roadside enclosures get incredibly freezing during winter, but these optics don't show any signal drift.

59 Helpful vote Comments

A***n

India

Verified Purchase

5 .0

2025-06-27

Our engineering team just wrapped up the physical layer validation tests for these industrial-grade optical transceivers inside our outdoor distributed antenna cabinets. Operating under direct sunlight, ambient cabinet temperatures frequently spike past 70°C, which usually causes standard commercial transceivers to experience severe wavelength drift or center frequency shifting. This industrial module remained rock solid throughout our thermal workload simulation testing, maintaining a stable 1490nm transmitter launch profile. The Bit Error Rate remained well below the acceptable 10⁻¹² threshold under full 10G line-rate traffic. For remote cell site backhaul applications where environmental conditions are unpredictable, this hardware is exceptional.

138 Helpful vote Comments

S***y

Bulgaria

Verified Purchase

5 .0

2025-06-17

No frame drops or CRC errors detected after a week of testing.

15 Helpful vote Comments

M***w

Brunei Darussalam

Verified Purchase

5 .0

2025-05-21

Running these in an outdoor enclosure for our base station backhaul project. The industrial optical transceiver handles the local summer heatwaves without shifting central wavelengths.

48 Helpful vote Comments

E***d

Japan

Verified Purchase

4 .0

2025-05-04

The single-mode simplex LC modules perform beautifully across our 60km fiber link. My only minor complaint is that the dust caps were a bit loose in the package, but the optical faces were pristine.

11 Helpful vote Comments

L***n

France

Verified Purchase

5 .0

2025-04-14

Smooth deployment for our metro aggregation ring. These single-mode simplex LC modules proved to be highly cost-effective compared to standard dual-fiber setups.

53 Helpful vote Comments

A***L

France

Verified Purchase

5 .0

2024-06-29

Very good price and low shipping cost compared to all other vendors for the product ordered.

49 Helpful vote Comments

J***n

Iran, Islamic Republic of

Verified Purchase

5 .0

2024-06-12

Great speed and great price for a quality product.

50 Helpful vote Comments

B***v

Singapore

Verified Purchase

5 .0

2024-05-04

Excellent website! Great prices and Fast delivery.

47 Helpful vote Comments

S***s

Belarus

Verified Purchase

5 .0

2024-04-19

Easier than going to the store, guaranteed service and product delivery. Pleasure to work with on any transaction level.

50 Helpful vote Comments

V***n

United States

Verified Purchase

5 .0

2024-04-16

Order arrived undamaged and in expected time frame. Perfectly done, thanks."

45 Helpful vote Comments

R***m

United Arab Emirates

Verified Purchase

5 .0

2024-01-28

Quick and reliable service at a competitive price

59 Helpful vote Comments

L***r

Macao

Verified Purchase

5 .0

2023-11-27

The 10/25/40G Transceiver Modules are cheap, but quality, packages are all good. Cost effective.

43 Helpful vote Comments

H***n

Austria

Verified Purchase

5 .0

2023-11-06

Great price. Fast delivery. What more can I say.

46 Helpful vote Comments

B***d

United Kingdom

Verified Purchase

5 .0

2023-10-30

Worked perfectly out of the box. Fast shipping.

53 Helpful vote Comments

S***i

Libyan Arab Jamahiriya

Verified Purchase

5 .0

2023-10-14

These work pretty great, cheap, makes connecting switches easy.

41 Helpful vote Comments

S***n

New Zealand

Verified Purchase

5 .0

2023-10-12

Not much to say, it fits in my network. That's a good thing!

43 Helpful vote Comments

J***g

Mexico

Verified Purchase

5 .0

2023-08-25

Good delivery on an excellent sale. Thank you!

54 Helpful vote Comments

M***r

Italy

Verified Purchase

5 .0

2023-08-23

The Website is good. I hope to see the product delivered in a reasonable time.

94 Helpful vote Comments

J***n

Morocco

Verified Purchase

5 .0

2023-08-22

Fast shipping, efficient service. Quality tranceivers received.

43 Helpful vote Comments

P***s

Italy

Verified Purchase

5 .0

2023-08-16

I'm very pleased with the speedy delivery and the great low price

49 Helpful vote Comments

Verified Purchase

{{comments.rating}}.0

Showing {{comments.replies.length}} comment

{{reply_items.topic || reply_items.text}}By {{reply_items.author}}

{{comments.helpfulvote}} Helpful vote Comments

{{pageindex}}

Not yet rated . Be the first to Write a Review

You May Also Like

Cisco SFP-10G-T-100 Compatible LINK-PP 10GBASE-T SFP+ Copper 100m RJ-45 Transceiver Module
$ 146 ~~$ 0.00~~
35 Sold
LINK-PP LS-MM858G-S3I 8G SFP+ 850nm 300m DOM Duplex LC MMF Industrial Transceiver Module
$ 21 ~~$ 0.00~~
158 Sold
FS FC-SFP-8G-SW Compatible LINK-PP 8G SFP+ 850nm 300m DOM Duplex LC MMF Optical Transceiver Module
$ 20 ~~$ 0.00~~
542 Sold
LINK-PP LS-MM858G-S3C 8G SFP+ 850nm 300m DOM Duplex LC MMF Optical Transceiver Module
$ 20 ~~$ 0.00~~
578 Sold
Dell FC-SFP-16G-LW Compatible LINK-PP 14Gb/s SFP+ 1310nm 10km Duplex LC DOM SMF Optical Transceiver Module
$ 480 ~~$ 0.00~~
406 Sold
Brocade FC-SFP-16G-LW Compatible LINK-PP 14Gb/s SFP+ 1310nm 10km Duplex LC DOM SMF Optical Transceiver Module
$ 480 ~~$ 0.00~~
310 Sold
Arista FC-SFP-16G-LW Compatible LINK-PP 14Gb/s SFP+ 1310nm 10km Duplex LC DOM SMF Optical Transceiver Module
$ 480 ~~$ 0.00~~
434 Sold
Juniper SFP-16GBPS-LWL Compatible LINK-PP 14Gb/s SFP+ 1310nm 10km Duplex LC DOM SMF Optical Transceiver Module
$ 480 ~~$ 0.00~~
398 Sold
Intel SFP-16G31-LW Compatible LINK-PP 14Gb/s SFP+ 1310nm 10km Duplex LC DOM SMF Optical Transceiver Module
$ 480 ~~$ 0.00~~
369 Sold
H3C SFP-FC-16G-LW-SM1310 Compatible LINK-PP 14Gb/s SFP+ 1310nm 10km Duplex LC DOM SMF Optical Transceiver Module
$ 480 ~~$ 0.00~~
392 Sold
Avago AFCT-57F3xxMZ Compatible LINK-PP 14Gb/s SFP+ 1310nm 10km Duplex LC DOM SMF Optical Transceiver Module
$ 480 ~~$ 0.00~~
407 Sold
LINK-PP LS-SM316G-10I 6G SFP+ 1310nm 10km Duplex LC DOM SMF Industrial Transceiver Module
$ 19 ~~$ 0.00~~
72 Sold
LINK-PP LS-SM316G-10C 6G SFP+ 1310nm 10km Duplex LC DOM SMF Transceiver Module
$ 17 ~~$ 0.00~~
135 Sold
LINK-PP LS-SM316G-02I 6G SFP+ 1310nm 2km Duplex LC DOM SMF Optical Transceiver Module
$ 15 ~~$ 0.00~~
110 Sold
LINK-PP LS-SM316G-02C 6G SFP+ 1310nm 2km Duplex LC DOM SMF Optical Transceiver Module
$ 12 ~~$ 0.00~~
280 Sold

Recently Viewed

{{item.displayed_price.unit_prefix}} {{item.displayed_price.value}} / {{item.displayed_price.unit_type_name}}

{{item.sold_num}} Sold

LINK-PP LS-BL495510-80I 10G SFP+ BiDi 1490nm-TX/1550nm-RX 80km Simplex LC/UPC DOM SMF Optical Transceiver Module (Industrial)

Product Details

LINK-PP LS-BL495510-80I 10G SFP+ Specifications

{{ mod.title }}

{{ mod.title }}

{{ mod.title }}

Key Features of LINK-PP LS-BL495510-80I 10G SFP+

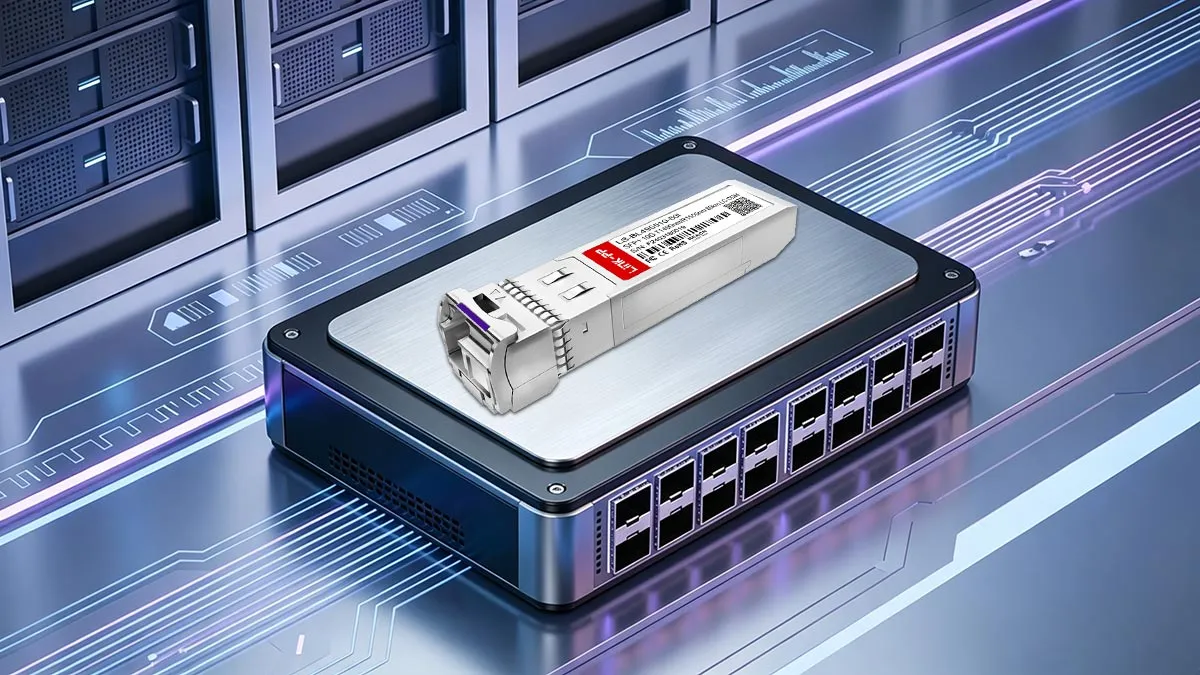

LINK-PP LS-BL495510-80I 10G SFP+ Optical Module

LS-BL495510-80I: 10 Gbps Connectivity for Industrial Edge

LS-BL495510-80I Module with 1490nm-TX/1550nm-RX Wavelength

LS-BL495510-80I Module Supporting 80km Transmission

LS-BL495510-80I Module with Simplex LC/UPC Interface

LS-BL495510-80I Module with DOM for Real-Time Monitoring

Videos

Matching Products

Download

Product Drawing

Questions & Answers

Customer Reviews

{{comment.count}} reviews

You May Also Like

Recently Viewed

{{status_back_til}}

Added to Cart

{{addwish_back.addwish_status}}

Add to Inquiry List

Write a Review
