LPJG46826-8AFNL 100 1000 base-t rj45 1x4 gigabit magnetic connectors green green led tab down
Click to open expanded view

LPJG46826-8AFNL 100/1000 Base-T RJ45 1x4 Gigabit Magnetic connectors Green/Green Led Tab Down

Product summary

Product
LPJG46826-8AFNL 100/1000 Base-T RJ45 1x4 Gigabit Magnetic connectors Green/Green Led Tab Down
SKU
180650
P/N
LPJG46826-8AFNL
Price
$ 9.73
Stock
1900 in Stock
Sold
7.1K
Unit price $ 9.73
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJG46826-8AFNLSKU: 180650

LINK-PP originalDatasheetAll downloads

Compatible:
Halo
LINK-PP
Compatible P/N:
LPJG46826-8AFNL
Volume pricing Online tiers · larger qty or custom price on request
$ 9.730
1–99 pcs
$ 7.780
100–599 pcs
$ 6.516
600–1,199 pcs
$ 5.543
1,200–5,999 pcs
$ 4.863
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1900 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 20
Total Price:
$ 9.73
Packaging Details
20 pcs
400 pcs
Tray
37×30×30 cm
0.025 kg
10 kg

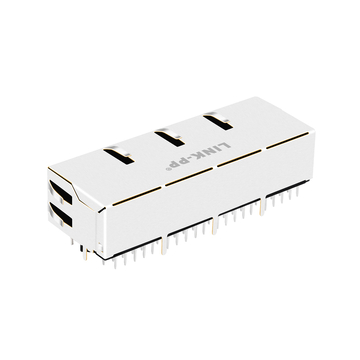

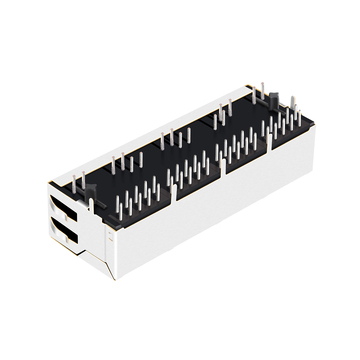

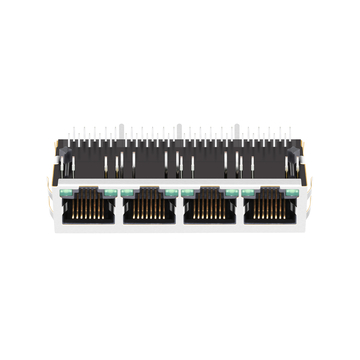

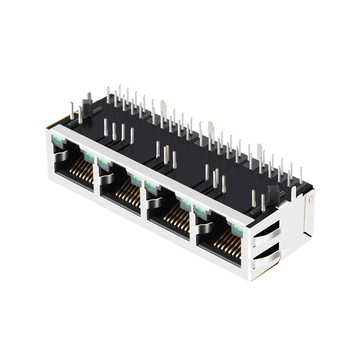

LINK-PP LPJG46826-8AFNL 100/1000 Base-T RJ45 1x4 Gigabit Magnetic connectors(Tab Down,Green/Green Led)


The LPJG46826-8AFNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.


LINK-PP Part Number
LPJG46826-8AFNL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
10p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x4 PortSpeed
10/100/1000 Base-T
Latch
DownCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Green Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.512/13.00Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm)
2.325/59.06
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJG46826-8AFNL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    They share a common leg inside the body, so the board has to drive them from the matching side. Wire it the other way and link and activity both go dark, which reads like a dead port and is a slow fault to chase. Check the polarity on the drawing before layout. Once the drive side is right, both lights behave and you can read link and activity separately. by LINK-PP Technical Support
  • A:
    It depends which way the cables have to leave. Tab down puts the clip underneath, so the cables drop away from the panel and clear the row below, which is why access switches use it. Tab up suits a chassis where the cables run above the port. Get it wrong and the plugs still fit but the harness fights the case, so match the mechanical drawing. by LINK-PP Technical Support
  • A:
    Yes, each port negotiates on its own. It is a ten position eight contact jack, so a hundred meg link uses two pairs and a gigabit link uses all four, and the switch sorts the speed per port. We have an old camera at a hundred meg and a machine at a gigabit on the same bank, which is exactly why we picked a part that covers both speeds. by LINK-PP Technical Support
  • A:
    One placement instead of four, one part number instead of four, and a shared shield that is cheaper and lighter than four separate cans. The trade is that a bent shield finger affects the whole bank rather than one port, so the bank has to be tested as a unit. On a board with four ports in a row the line time saving usually wins, and it has on ours. by LINK-PP Technical Support
