LPJG46926-8CNL 1000 base-t rj45 1x4 gigabit magnetic jacks without led tab down

LPJG46926-8CNL 1000 Base-T RJ45 1x4 Gigabit Magnetic jacks Without Led Tab Down

Product summary

Product
LPJG46926-8CNL 1000 Base-T RJ45 1x4 Gigabit Magnetic jacks Without Led Tab Down
SKU
180644
P/N
LPJG46926-8CNL
Price
$ 9.52
Stock
1200 in Stock
Sold
8.8K
Unit price $ 9.52
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJG46926-8CNLSKU: 180644

LINK-PP originalDatasheet3D ModelAll downloads

Compatible:
Halo
LINK-PP
Compatible P/N:
LPJG46926-8CNL
Volume pricing Online tiers · larger qty or custom price on request
$ 9.520
1–99 pcs
$ 7.619
100–599 pcs
$ 6.381
600–1,199 pcs
$ 5.429
1,200–5,999 pcs
$ 4.762
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1200 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 20
Total Price:
$ 9.52
Packaging Details
20 pcs
400 pcs
Tray
37×30×30 cm
0.025 kg
10 kg

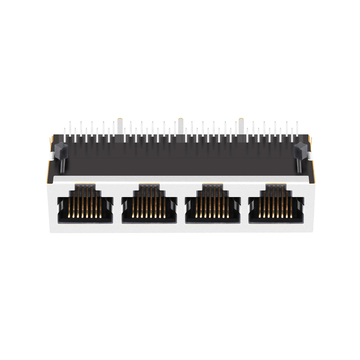

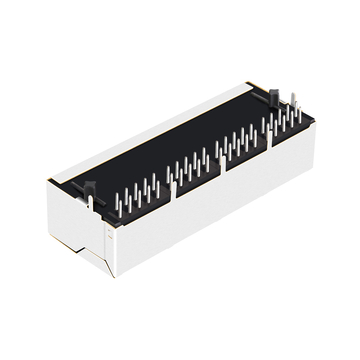

LINK-PP LPJG46926-8CNL 100/1000 Base-T RJ45 1x4 Gigabit Magnetic jacks(Tab Down, Without Led)

The LPJG46926-8CNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.

LINK-PP Part Number LPJG46926-8CNL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 10p8c (RJ45, Ethernet) Application-Lan Ethernet(NoN PoE)
Number of Ports 1x4 Port Speed 10/100/1000 Base-T
Latch Down Cores per Port 8
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs With LED Option

Without Led

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.512/13.00 Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm) 2.325/59.06 Temperature -40℃ TO 85℃
Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJG46926-8CNL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The tabs press against the panel once the board is fixed, bonding the shell without an extra gasket, as long as the panel is unpainted where the tabs land. Powder coat defeats them, so mask the opening or specify a masked area. We check continuity from the block to the chassis on the first article and again after any chassis finish change. by LINK-PP Technical Support
  • A:
    From the switch, which is where anyone looks on a managed card. The lamp free version is shorter, has no light bleed between adjacent ports and removes sixteen components from the build. If you need faceplate status for field service, the sibling with lamps shares the same footprint, so it is a BOM choice rather than a layout change. Either way the cage and the solder pattern are identical. by LINK-PP Technical Support
  • A:
    The opening becomes a single rectangle covering all four ports rather than four separate holes, which is easier to machine and easier to mask. Take the dimensions off the drawing instead of off the body, because the flange and the tabs sit outside it. On our chassis it also meant one continuous gasket strip instead of four small ones, which saved a fitting step. by LINK-PP Technical Support
  • A:
    You replace the block rather than one port, which makes the repair a rework on a large part instead of a small one. In practice the failure modes on a jack are mechanical, from a cable pulled sideways, and that is why we test all four ports on every board rather than sampling. The density saving is worth that trade on a card this size. by LINK-PP Technical Support

Customer Reviews

  • 5

    53 Reviews

  • 5 Stars
    98%
    4 Stars
    2%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (53)
No data
N***y
Austria
Verified Purchase
5.0
2026-11-07
Latch down with a right angle body. On a 1x4 block the four releases sit on the underside in a row, which is where the installer can reach them with one hand while holding the cable bundle. Tab up would have put all four against the floor plate.
F***n
Czech Republic
Verified Purchase
4.0
2026-10-09
Four stars because the table omits the LED option and the cores per port, which are the two things that vary across this family. Reading the description tells you this is the no lamp version. The assembly itself has been right.
G***s
India
Verified Purchase
5.0
2026-09-10
Shielded, with EMI tabs on the shell.
S***n
France
Verified Purchase
5.0
2026-08-11
Right angle body lying along the board edge, release on the underside in a row. Four clips in one row is easier to work than four clips scattered across a card.
L***g
Argentina
Verified Purchase
5.0
2026-07-13
Termination is passive and built in, so nothing to place and nothing to tune. On sixteen pairs that is sixteen chances for a wrong value removed from the build.
