LPJG46826-8CNL 100 1000 base-t rj45 1x4 gigabit magnetic jacks without led tab down
Click to open expanded view

LPJG46826-8CNL 100/1000 Base-T RJ45 1x4 Gigabit Magnetic jacks Without Led Tab Down

Product summary

Product
LPJG46826-8CNL 100/1000 Base-T RJ45 1x4 Gigabit Magnetic jacks Without Led Tab Down
SKU
180586
P/N
LPJG46826-8CNL
Price
$ 9.52
Stock
880 in Stock
Sold
7.2K
Unit price $ 9.52
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJG46826-8CNLSKU: 180586

LINK-PP originalDatasheetAll downloads

Compatible:
Halo
LINK-PP
Compatible P/N:
LPJG46826-8CNL
Volume pricing Online tiers · larger qty or custom price on request
$ 9.520
1–99 pcs
$ 7.619
100–599 pcs
$ 6.381
600–1,199 pcs
$ 5.429
1,200–5,999 pcs
$ 4.762
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
880 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 20
Total Price:
$ 9.52
Packaging Details
20 pcs
400 pcs
Tray
37×30×30 cm
0.025 kg
10 kg

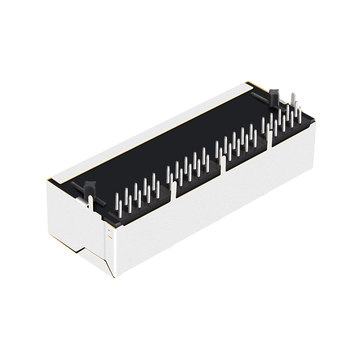

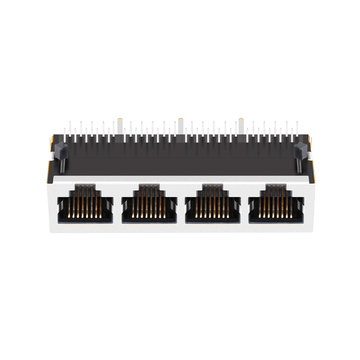

LINK-PP LPJG46826-8CNL 100/1000 Base-T RJ45 1x4 Gigabit Magnetic jacks(Tab Down, Without Led)


The LPJG46826-8CNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.


LINK-PP Part Number
LPJG46826-8CNL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
10p8c (RJ45, Ethernet) Application-Lan
Ethernet(NoN PoE)
Number of Ports
1x4 PortSpeed
10/100/1000 Base-T
Latch
DownCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Without Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.512/13.00Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm)
2.325/59.06
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJG46826-8CNL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Bond them to chassis ground at the faceplate and keep that region separate from the digital plane under the PHY. Shield EMI Tabs is marked With, so each tab has to reach bare metal; we reserve a chassis pour around the mounting posts and bridge the two grounds at one controlled point rather than scattering vias along the row. Stitching capacitors near the posts give the emissions scan something to tune without a board re-spin. Check continuity from a tab to the faceplate on the first article before power-up. by LINK-PP Technical Support
  • A:
    Hold the width to about plus or minus 0.15mm across the full 59.06mm opening, and keep the cutout square. A ganged 1x4 body has four jacks on one frame, so an opening that is tight at one end tilts the whole assembly and lifts the EMI tabs along the opposite side; there is no per-port adjustment to recover it. Deburr the edges and check the first article with the frame seated before tooling. The 13.00mm height and 21.30mm depth then set your rear keep-out. by LINK-PP Technical Support
  • A:
    AutomDX YES means the auto MDI/MDIX function is supported, so straight-through cables work in either direction and you can leave the crossover cables out of the install kit. It does not add any components to this jack or change the 1CT:1CT windings; the correction happens in the PHY, so confirm your silicon enables the feature in its strap or register settings. Keep the eight cores per port wired straight to the magnetics. If a link stays down, check the PHY register state before blaming the connector. by LINK-PP Technical Support
  • A:
    From the PHY side. LED Option is listed as Without Led, so there are no indicator diodes in the connector body to drive. Route the PHY LED outputs to the front-panel indicators your enclosure already uses, and read link and activity from the PHY registers during test. The magnetics are unchanged: 1CT:1CT turns ratio, Bob Smith network and eight cores per port match a lit variant. If your design needs a visual check at the port, choose a version with LEDs instead. by LINK-PP Technical Support
