LPJG0918-8GFNL 1000 base-t industrial rj45 magjack tab down green green led
Click to open expanded view

LPJG0918-8GFNL 1000 Base-T Industrial RJ45 Magjack Tab Down Green/Green LED

Product summary

Product
LPJG0918-8GFNL 1000 Base-T Industrial RJ45 Magjack Tab Down Green/Green LED
SKU
179240
P/N
LPJG0918-8GFNL
Price
$ 3.54
Stock
1512 in Stock
Sold
8.5K
Unit price $ 3.54
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJG0918-8GFNLSKU: 179240

LINK-PP originalDatasheetAll downloads

Compatible:
Halo
LINK-PP
Compatible P/N:
LPJG0918-8GFNL
Volume pricing Online tiers · larger qty or custom price on request
$ 3.540
1–99 pcs
$ 2.901
100–599 pcs
$ 2.547
600–1,199 pcs
$ 1.946
1,200–5,999 pcs
$ 1.663
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
1512 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 3.54
Packaging Details
50 pcs
1200 pcs
Tray
32×30×31 cm
0.008 kg
9 kg

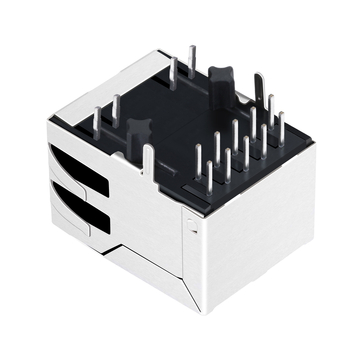

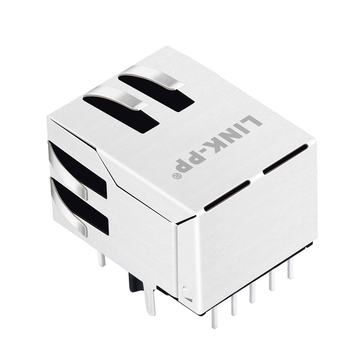

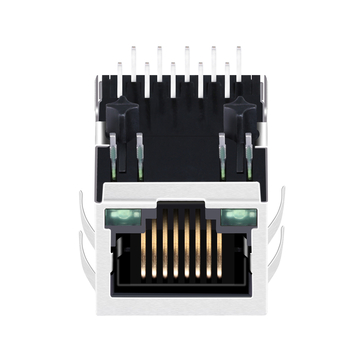

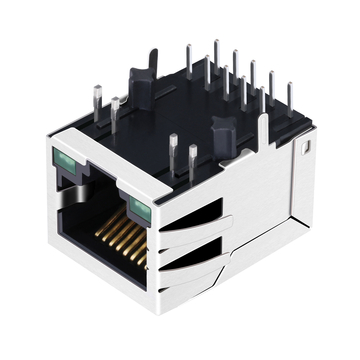

LINK-PP LPJG0918-8GFNL 1000 Base-T Industrial RJ45 Gigabit 1x1 Port Mag jack Connector Green/Green Led(Single Port, Tab Down, Green/Green Led)

The LPJG0918-8GFNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.

LINK-PP Part Number LPJG0918-8GFNL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 10p8c (RJ45, Ethernet) Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port Speed 1000 Base-T
Latch Down Cores per Port 8
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs With LED Option

Green/Green

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.524/13.30 Package Length (Inches/mm)

0.837/21.25

Package Width (Inches/mm) 0.627/15.93 Temperature

0 TO +70℃

Bst Circuit YES AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJG0918-8GFNL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Yes. The sheet marks the Bst circuit as present in the design, but the capacitors and the reference network live on the board around the jack, not inside the housing. Follow the PHY vendor values and place them close to the cable side taps so the common mode path stays short. We copied the reference schematic and had no trouble at compliance. Nothing here changes the datarate; it is only about noise on the pair. by LINK-PP Technical Support
  • A:
    Both windings are one to one with centre taps, so the module does not transform impedance and the PHY sees the cable through the usual termination network. There is no ratio to compensate for in the matched pairs, which makes the reference schematic easy to copy. We kept the PHY side taps with the silicon vendor values and the cable side with the common mode capacitors. Short matched traces mattered more than any component value. by LINK-PP Technical Support
  • A:
    No. The sheet lists no diodes and no rectifier bridge, so there is no path from the centre taps to a load at the far end of the cable. The bootstrap network only fixes the common mode reference for the PHY side; it is not a feed for a camera or sensor. That is why our layout treats this as plain data and gives any powered port its own rated connector. Treat this as a data jack only. by LINK-PP Technical Support
  • A:
    The main difference is the specified operating window and the qualification behind it, which matters when the box sits outdoors with no climate control. Our unit lives in a roadside cabinet that swings from cold nights to warm afternoons, and the port has kept a clean link through a full season. With the latch down and the body only thirteen point three millimetres tall, it also fitted under a low lid. Confirm enclosure clearance with a plug in place before release. by LINK-PP Technical Support
