LPJK4071AONL 1000 base-t integrated rj45 magnetics jack pcb connector tab up orange&green yellow led
Click to open expanded view

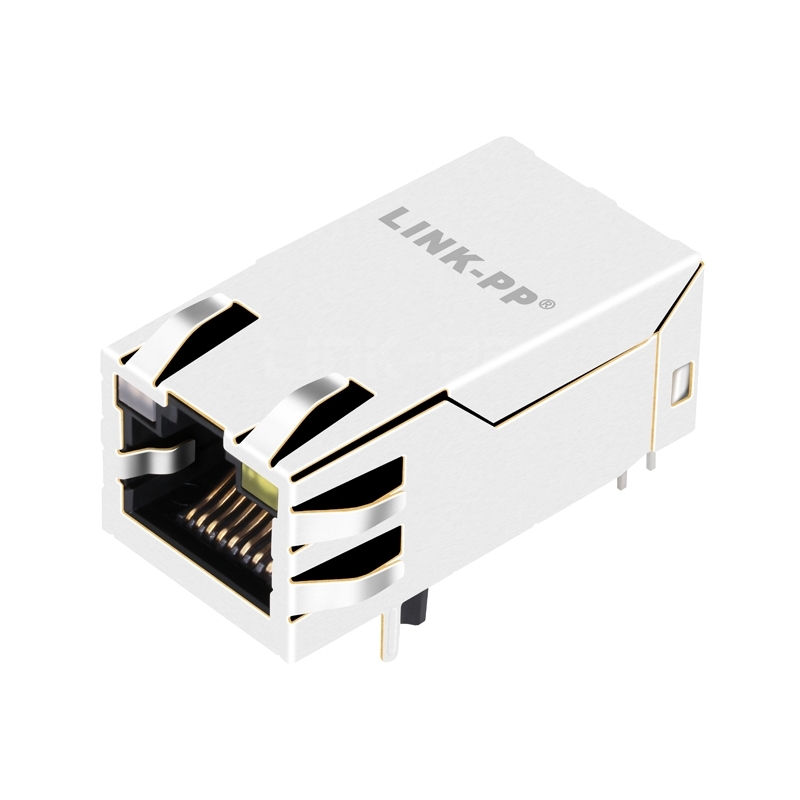

LPJK4071AONL 1000 Base-T Integrated RJ45 Magnetics Jack pcb connector Tab Up Orange&Green/Yellow Led

Product summary

Product
LPJK4071AONL 1000 Base-T Integrated RJ45 Magnetics Jack pcb connector Tab Up Orange&Green/Yellow Led
SKU
179115
P/N
LPJK4071AONL
Price
$ 4.15
Stock
2312 in Stock
Sold
8.7K
Unit price $ 4.15
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJK4071AONLSKU: 179115

LINK-PP originalDatasheetAll downloads

Compatible:
Halo
LINK-PP
Compatible P/N:
LPJK4071AONL
Volume pricing Online tiers · larger qty or custom price on request
$ 4.150
1–99 pcs
$ 3.399
100–599 pcs
$ 2.984
600–1,199 pcs
$ 2.280
1,200–5,999 pcs
$ 1.948
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
2312 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 50
Total Price:
$ 4.15
Packaging Details
50 pcs
800 pcs
Tray
32×30×31 cm
0.011 kg
8.8 kg

LINK-PP LPJK4071AONL 1000 Base-T Integrated RJ45 Magnetics Jack pcb connector (1x1 Port, Tab Up,Orange&Green/Yellow Led)


The LPJK4071AONL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Smart Camera, Automation, The Handheld Device and Game Controller.


LINK-PP Part Number
LPJK4071AONL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
12p8c (RJ45, Ethernet) Application-Lan
Ethernet( NoN PoE )
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
UPCores per Port
12
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Orange&Green/Yellow

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1.280/32.50

Package Width (Inches)
0.654/16.60Temperature

-40℃ TO 85℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJK4071AONL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    The card is 60 mm wide and the magnetics would have taken 20 mm of it. With the magnetics in the shell the layout stayed open. Our regulator sits in that space. That kept the card on two layers. by LINK-PP Technical Support
  • A:
    The left lens is orange and green and the right one is yellow and green. We trained the crew on position, not colour. Nobody has misread a port yet. The labels sit beside the mouths. by LINK-PP Technical Support
  • A:
    The alternative was a second cable and a second gland per machine. Twelve cores cost less than that hardware and half a fitter hour. Forty machines were converted this way. The saving showed on the first press. by LINK-PP Technical Support
  • A:
    The cabinet wall runs at 55℃ when the barrel has been hot for hours. Our board settles near 65℃ with the cover on. This jack is rated to 85℃, so we hold 20℃ of margin there. No card has dropped a link in two summers. by LINK-PP Technical Support
  • A:
    The card sends cycle data and takes a 0 to 10 V signal from the mould clamp. Twelve cores let us land that signal on the spare pairs. One cable serves the machine. Two cables became one. by LINK-PP Technical Support

Customer Reviews

  • 5

    27 Reviews

  • 5 Stars
    96%
    4 Stars
    4%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (27)
No data
X***d
Verified Purchase
4.0
2026-11-15
Two cartons arrived dented at one corner, though the jacks inside sat untouched. LPJK4071AONL is the twelve contact body on our access point line, and the orange lamp pair reads well. The packing held up through the trip.
Y***g
Denmark
Verified Purchase
5.0
2026-05-23
On the rack build both lamps lit first try, which was a good sign.
J***d
Verified Purchase
5.0
2026-02-11
We check latch travel, lamp colours and shield tabs on every incoming lot, and this one passed on all three. The LED legs sat clear of the signal pins. =)
E***e
Verified Purchase
5.0
2025-10-31
We had one port dropping to 100 Mb on a long run, and the first thing we pulled was the jack. Contacts clean under a loupe, no bent fingers, shield tabs still flat against the panel. The real fault sat behind the patch panel, a crushed cable end. New cable, link back at gigabit.
C***n
Verified Purchase
5.0
2025-06-04
13.50 mm high, clears the lid. It dropped into the same opening.
