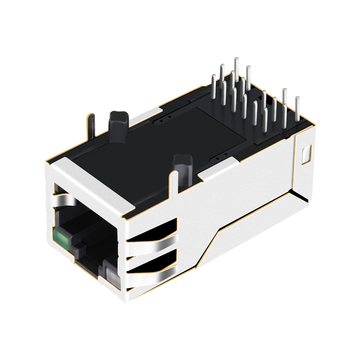

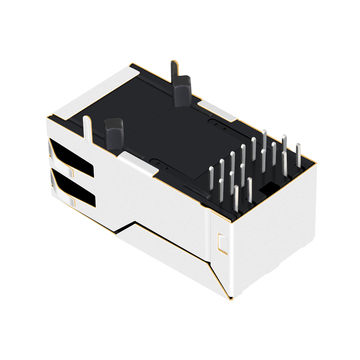

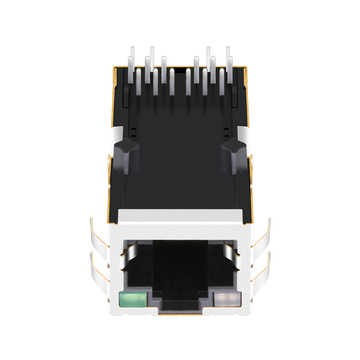

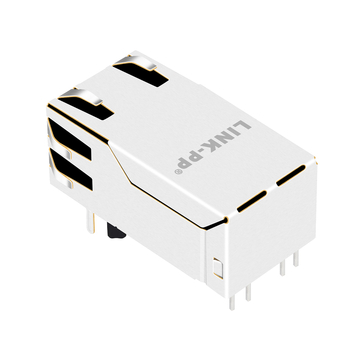

LPJK4071AINL 1000 base-t industrial rj45 magjack tab up yellow&green green led
Click to open expanded view

LPJK4071AINL 1000 Base-T Industrial RJ45 Magjack Tab Up Yellow&Green/Green LED

Product summary

Product
LPJK4071AINL 1000 Base-T Industrial RJ45 Magjack Tab Up Yellow&Green/Green LED
SKU
179100
P/N
LPJK4071AINL
Price
$ 4.76
Stock
3500 in Stock
Sold
16.5K
Unit price $ 4.76
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJK4071AINLSKU: 179100

LINK-PP originalDatasheetAll downloads

Compatible:
Halo
LINK-PP
Compatible P/N:
LPJK4071AINL
Volume pricing Online tiers · larger qty or custom price on request
$ 4.760
1–99 pcs
$ 3.905
100–599 pcs
$ 3.429
600–1,199 pcs
$ 2.619
1,200–5,999 pcs
$ 2.238
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
3500 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 60
Total Price:
$ 4.76
Packaging Details
60 pcs
960 pcs
Tray
37×30×30 cm
0.011 kg
10.1 kg

LINK-PP LPJK4071AINL 1000 Base-T gigabit Industrial RJ45 Mag Jack Connector (Single Port,Tab Up,Yellow&Green/Green Led)

The LPJK4071AINL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.

LINK-PP Part Number LPJK4071AINL Connector Type Jack
Part Status Active Mounting Type Through Hole
Number of Positions/Contacts 12p8c (RJ45, Ethernet) Application-Lan Ethernet( NoN PoE )
Number of Ports 1x1 Port Speed 10/100/1000 Base-T
Latch UP Cores per Port 12
Orientation 90° Angle (Right) PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs With LED Option

Yellow&Green/Green Leds

PCB FR4 PCB Retaining Post

T POST

Package Height (Inches/mm) 0.531/13.50 Package Length (Inches/mm)

1.280/32.50

Package Width (Inches) 0.650/16.50 Temperature

-40℃ TO 85℃

Bst Circuit Yes AutomDX

YES

Diodes No Contact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX 1CT:1CT Configuration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJK4071AINL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    Both machines run the same control board and the same 16.50 mm cutout. Our stores hold one part for the two lines. The slitter cabinet is deeper, so it fits with room left. We keep a single number now. by LINK-PP Technical Support
  • A:
    Our board populates eight of the twelve contacts and leaves the rest as spares. That spare room let us add a second load cell bank later. We did not need a new connector. The same part covers both builds. by LINK-PP Technical Support
  • A:
    Depth matters here, because the shell takes 32.50 mm behind the mouth. Our cabinet leaves 36 mm behind the panel. The body clears the drive bank by 4 mm. We checked that against the drawing before ordering. by LINK-PP Technical Support
  • A:
    Yellow and green sit on one side and a single green on the other. Our panel drives the pair for the link and the lone green for a tension fault. The label prints both in plain words. Our fitters read it without a sheet. by LINK-PP Technical Support
  • A:
    The winder sends a tension trace from four load cells at 2 kHz. A hundred megabit link buffered about 300 ms of that trace. Gigabit carries it with no buffer at all. Our operator now sees the web break as it starts. by LINK-PP Technical Support

Customer Reviews

  • 5

    27 Reviews

  • 5 Stars
    96%
    4 Stars
    4%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (27)
No data
E***t
Verified Purchase
5.0
2026-11-15
Latch up clears the boot. Right angle worked as advertised on the rail.
V***y
Verified Purchase
5.0
2026-06-29
Three lamps in one window, easy to read. No fuss wiring the lamp legs.
C***w
Verified Purchase
5.0
2026-02-11
Can bonded to the plane on both long sides. The pin out matched the drawing line for line.
B***g
Verified Purchase
5.0
2025-09-14
3 states from 2 lamps is what this window gives. The outer lens carries green and yellow, so link, speed and activity all show. Cold start at -40 ℃ was clean. It arrived within spec against the sample. =)
W***e
Verified Purchase
5.0
2025-04-05
LPJK4071AINL took the cutout square, no filing. It cleared the chassis wall as expected.
