LPJK0071A105NL gigabit rj45 ethernet jack 1000 base-t single port tab up green green&orange leds
Click to open expanded view

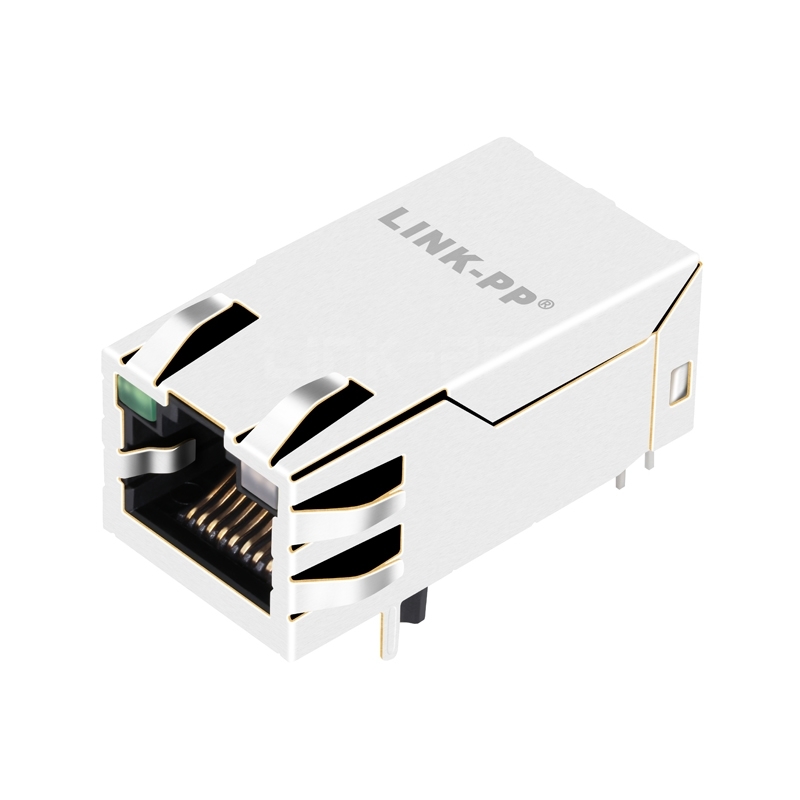

LPJK0071A105NL Gigabit RJ45 ethernet jack 1000 Base-T Single Port Tab Up Green/Green&Orange Leds

Product summary

Product
LPJK0071A105NL Gigabit RJ45 ethernet jack 1000 Base-T Single Port Tab Up Green/Green&Orange Leds
SKU
179037
P/N
LPJK0071A105NL
Price
$ 4.68
Stock
2900 in Stock
Sold
17.1K
Unit price $ 4.68
New Users: $ 10.00 Coupon on Your First Order
Code linkpp2610
For Order Over $ 1,000.00 Get $ 15.00 Off
Code Linkpp15
For Order Over $ 3,000.00 Get $ 50.00 Off
Code Linkpp50
For Order Over $ 5,000.00 Get $ 100.00 Off
Code Linkpp100
Manufacture: LINK-PPP/N: LPJK0071A105NLSKU: 179037

LINK-PP originalDatasheetAll downloads

Compatible:
Halo
LINK-PP
Compatible P/N:
LPJK0071A105NL
Volume pricing Online tiers · larger qty or custom price on request
$ 4.680
1–99 pcs
$ 3.834
100–599 pcs
$ 3.366
600–1,199 pcs
$ 2.571
1,200–5,999 pcs
$ 2.197
≥6,000 pcs

Need a qty beyond these tiers, or to negotiate price?

Stock:
2900 in Stock
Shipping:
$ 29.47
to United States via FedEx IP
Estimated delivery time : 3 - 6 days.
5-Year Warranty 15-Day Returns 15-Day Exchange
Warranty
  • Providing industry-leading 5-year warranty.
  • Read the table for details of all products' warranty.
Returns & Exchange
  • Refunds will be received about 5 business days after the receipt of returned items.
  • Items in stock for replacement can be shipped within 1 business day.
  • Read the full return policy for details.
Free shipping over $ 600.00.
Or ship with your own UPS / FedEx / DHL account at checkout ($ 0.00 shipping).
Quantity:
SPQ 60
Total Price:
$ 4.68
Packaging Details
60 pcs
960 pcs
Tray
37×30×30 cm
0.011 kg
10.1 kg

LINK-PP LPJK0071A105NL Gigabit RJ45 ethernet jack 1000 Base-T (Single Port, Tab Up,Green/Green&Orange Leds)


The LPJK0071A105NL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Industrial PC, Smart Home, The Handheld Device and Game Controller.


LINK-PP Part Number
LPJK0071A105NL Connector Type
Jack
Part Status
Active Mounting Type
Through Hole
Number of Positions/Contacts
12p8c (RJ45, Ethernet) Application-Lan
Ethernet( NoN PoE )
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
UPCores per Port
12
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Green&Orange

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

1.280/32.50

Package Width (Inches)
0.650/16.50Temperature

0℃ TO 70℃

Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C

LINK-PP

Matching Products

Pictures ID# Description Price Stock Add to Cart

Download

Product Drawing LPJK0071A105NL.pdf

Questions & Answers

No questions yet

Be the first to ask about specs, compatibility, or lead time.

Ask a Question
  • A:
    A shielded plug and a plain one both seat, and the link comes up on either. Only the shielded type bonds the shell. Our nurse station uses shielded cable and the imaging room uses plain. Both ran clean on the same board. by LINK-PP Technical Support
  • A:
    The magnetics inside the shell filter the pairs, and the tabs bond at the bezel cutout. Our bench ran a 6 hour scan with no retrain. The error counter stayed at zero. The port also held with a second scanner on the same switch. by LINK-PP Technical Support
  • A:
    The bezel on our workstation leaves 17 mm behind the glass. This shell takes 13.50 mm of that and leaves room for the bend. The posts clear the ribbon that runs to the display. Two sizes share the same board. by LINK-PP Technical Support
  • A:
    A scan set leaves the workstation for the archive in one push. A gigabit link clears it in seconds, and our archive sits one floor down. Ten cores per port carry that load without a retrain. 300 boards out with no dropped study. by LINK-PP Technical Support
  • A:
    One side is green and the other is green plus orange. Our workstation legend maps green to link and orange to a transfer. The colours matched the drawing on the first build. No light pipe was needed. by LINK-PP Technical Support
  • A:
    The two spare contacts carry a low current interlock line for the detector. An eight contact shell would have forced another header onto the board. Twelve contacts still fit in a 13.50 mm shell. Our board lost one connector. by LINK-PP Technical Support

Customer Reviews

  • 5

    29 Reviews

  • 5 Stars
    97%
    4 Stars
    3%
    3 Stars
    0%
    2 Stars
    0%
    1 Star
    0%
  • All Reviews (29)
No data
O***x
Spain
Verified Purchase
5.0
2026-11-15
LPJK0071A105NL arrived with the reels sealed and the labels readable. We ran 30 boards and every port came up at 1G, so the pinout matched the drawing on the first try. The 12 contacts were all clean under a loupe.
A***y
Verified Purchase
4.0
2026-05-31
The carton was crushed at one corner, though nothing inside had moved. The 12 contacts give 4 spare cores, which is what we wanted for a second pair on the same shell. No fuss getting them to the line.
A***s
Verified Purchase
5.0
2026-02-09
16.50 mm across, fits. It matched the sheet on pitch.
Z***n
Malaysia
Verified Purchase
5.0
2025-09-30
32.50 mm deep, 13.50 mm tall, a good drop in.
R***d
Verified Purchase
5.0
2025-05-21
0 to 70 ℃ covers the rack. No fuss seating it on the header.
